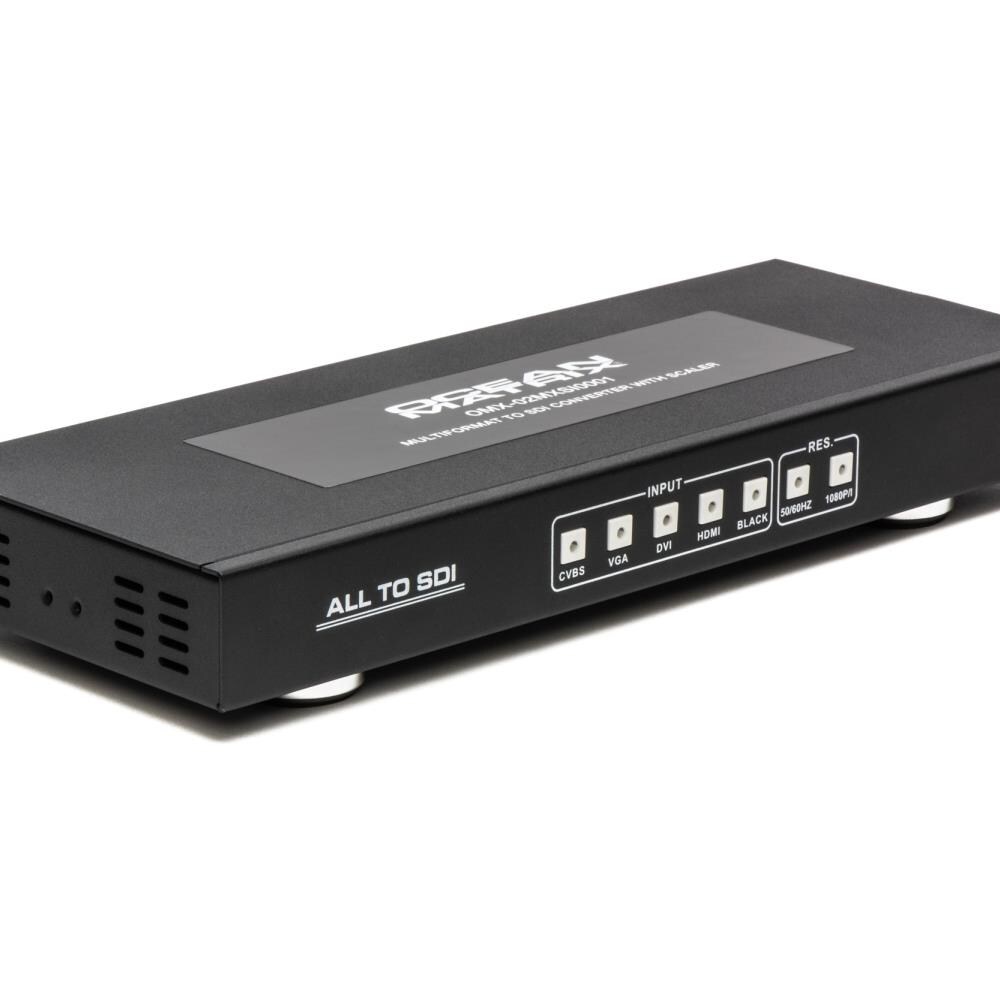

The all-in-one solution for converting anything to 3G-SDI video signals is the Ocean Matrix OMX-02MXSI0001. Converts HDMI, DVI, VGA and composite video at the touch of a button and includes two simultaneous SDI outputs for feeding local monitors or video extenders. The Ocean Matrix 02MXSI0001 supports SDI SMPTE 424M/425M or HD-SDI SMPTE 292M and can drive signal output to distances up to 100 meters on Belden and Canare or similar 3G/12G rated cable. Input support includes HDMI 480i/576i to/60Hz, VGA up to and composite video inputs in NTSC, PAL or SECAM. Features. Upscales HDMI, DVI, VGA and Composite Video to 3G-SDI or HD-SDI. Two SDI Outputs Simultaneously. Video Resolutions: Up to. SMPTE Standards: 425M-AB ( 3G-SDI), 424M, 292M ( HD-SDI). Black Powder Coated Metal Enclosure with padded feet. Supports Black Screen Signal Output Specifications. Audio Formats: PCM 2CH with 48kHz sample rate. Inputs: HDMI Type A. Output: SDI ( HD, 3G-SDI). Power Input: AC100 - 240V 50/60Hz. Power Consumption: 5W. Dimensions: 11.34-" x 4.30-" x 1.3-"
The all-in-one solution for converting anything to 3G-SDI video signals is the Ocean Matrix OMX-02MXSI0001. Converts HDMI, DVI, VGA and composite video at the touch of a button and includes two simultaneous SDI outputs for feeding local monitors or vide
Upscales HDMI, DVI, VGA and Composite Video to 3G-SDI or HD-SDI
