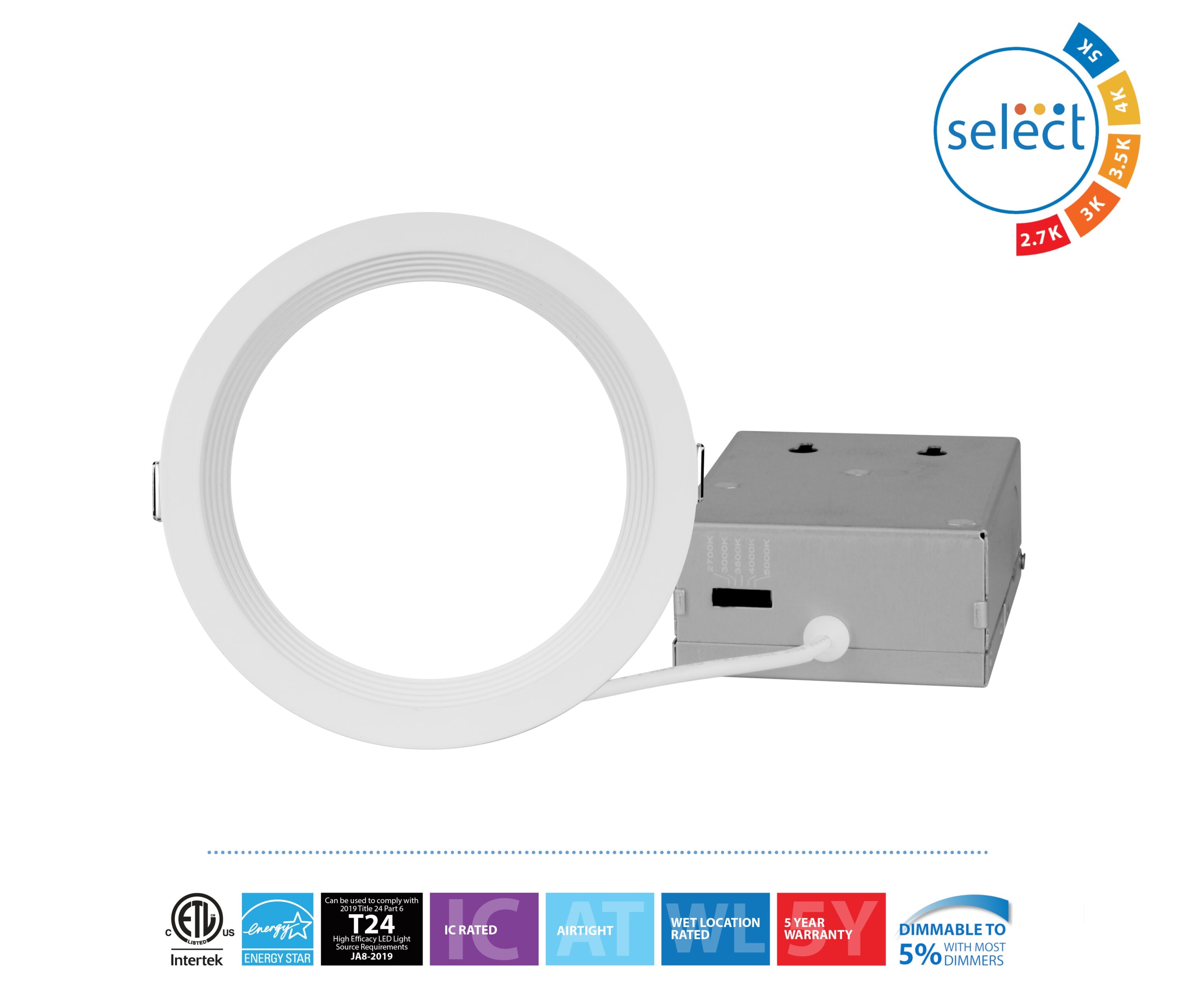

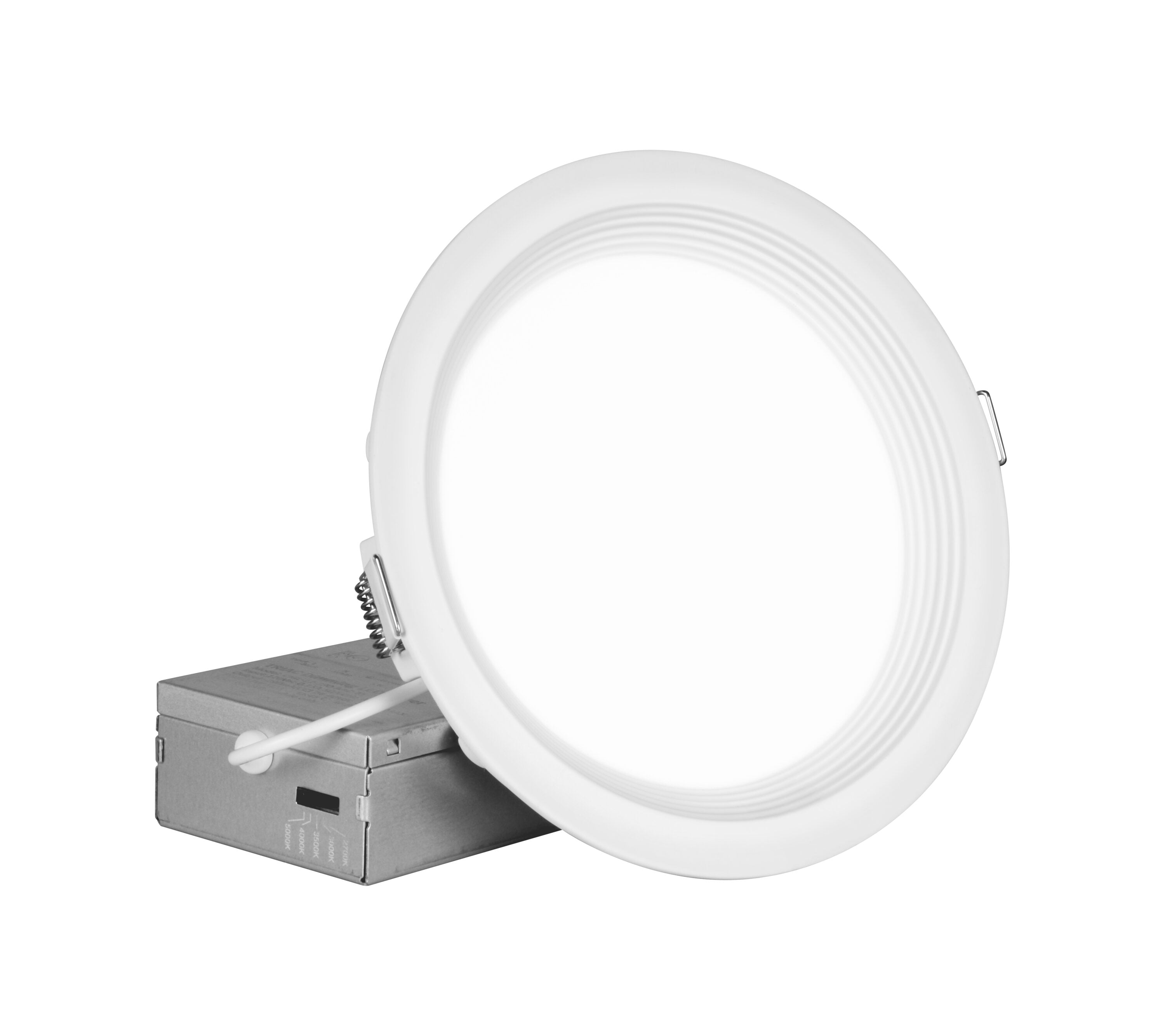

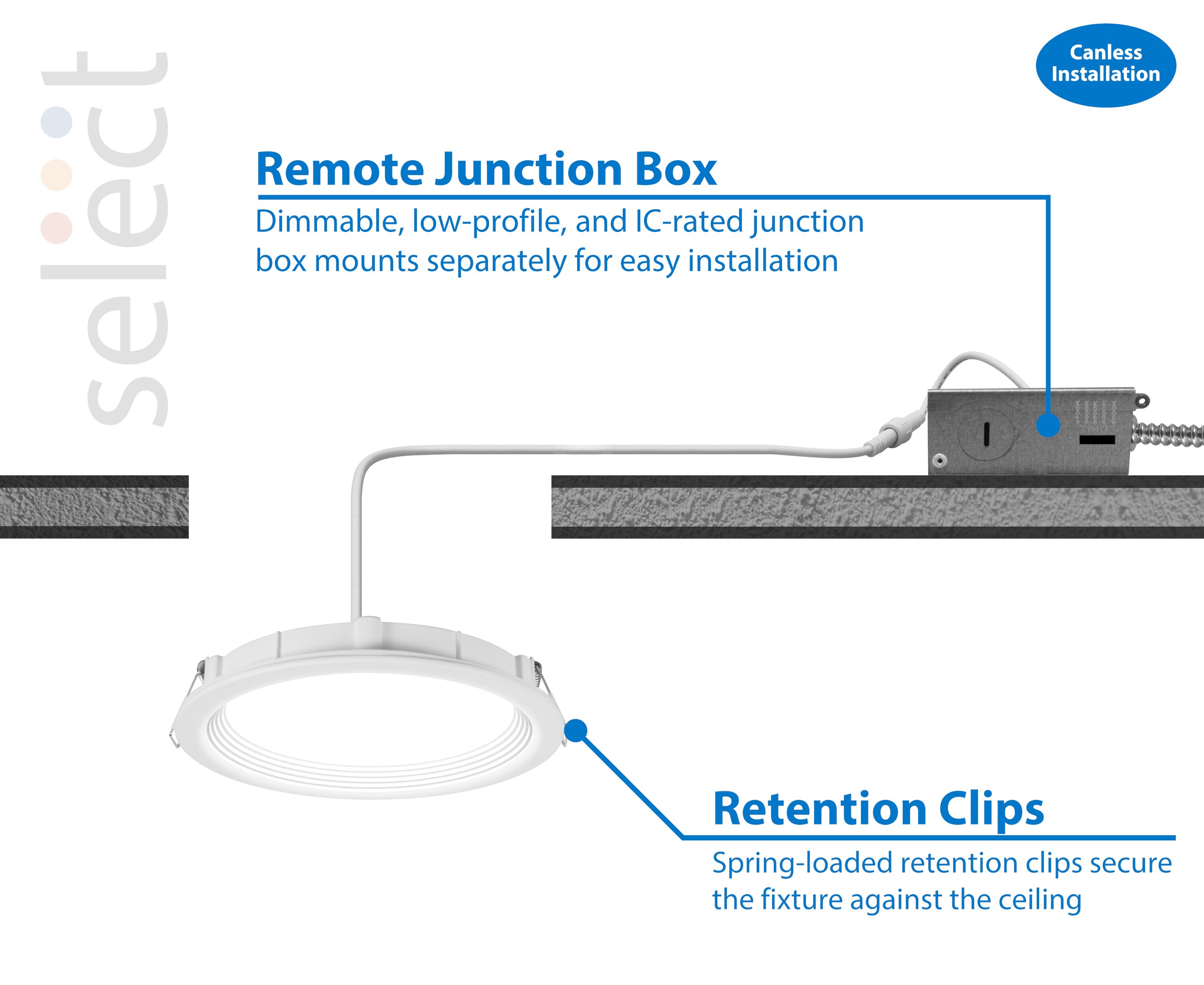

NICOR’s RELS-R Series 6" Regressed LED Downlight offers an inset baffle design to bring depth and clean aesthetic to any room. The edge-lit technology allows for a very thin recessed design measuring less than an inch in depth. Easily change between 5 color temperature options (2700K, 3000K, 3500K, 4000K, 5000K) with the CCT selector switch on the driver. The high-performance RELS-R features an impressive 93 CRI rating (with an R9 value of 56) to produce an incredible light output quality. Installation no longer requires a recessed housing, but rather a simple 6.25” diameter drywall cut-out using the provided template. The ultra-thin fixture depth and off-board driver (included) allows for a more flexible installation and increased product lifespan through superior heat management. The adjustable, spring-loaded retention tabs provide a secure fit, eliminating the need for a junction box or recessed housing. The REL comes ready to install right out of the box, no other parts or components are required. Available in round and square, in both 4-inch and 6-inch sizes. Protected by NICOR’s 5-year limited warranty.
Includes downlight, driver/junction box, and linking cable
Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
Available in round or square in both 4-inch and 6-inch sizes

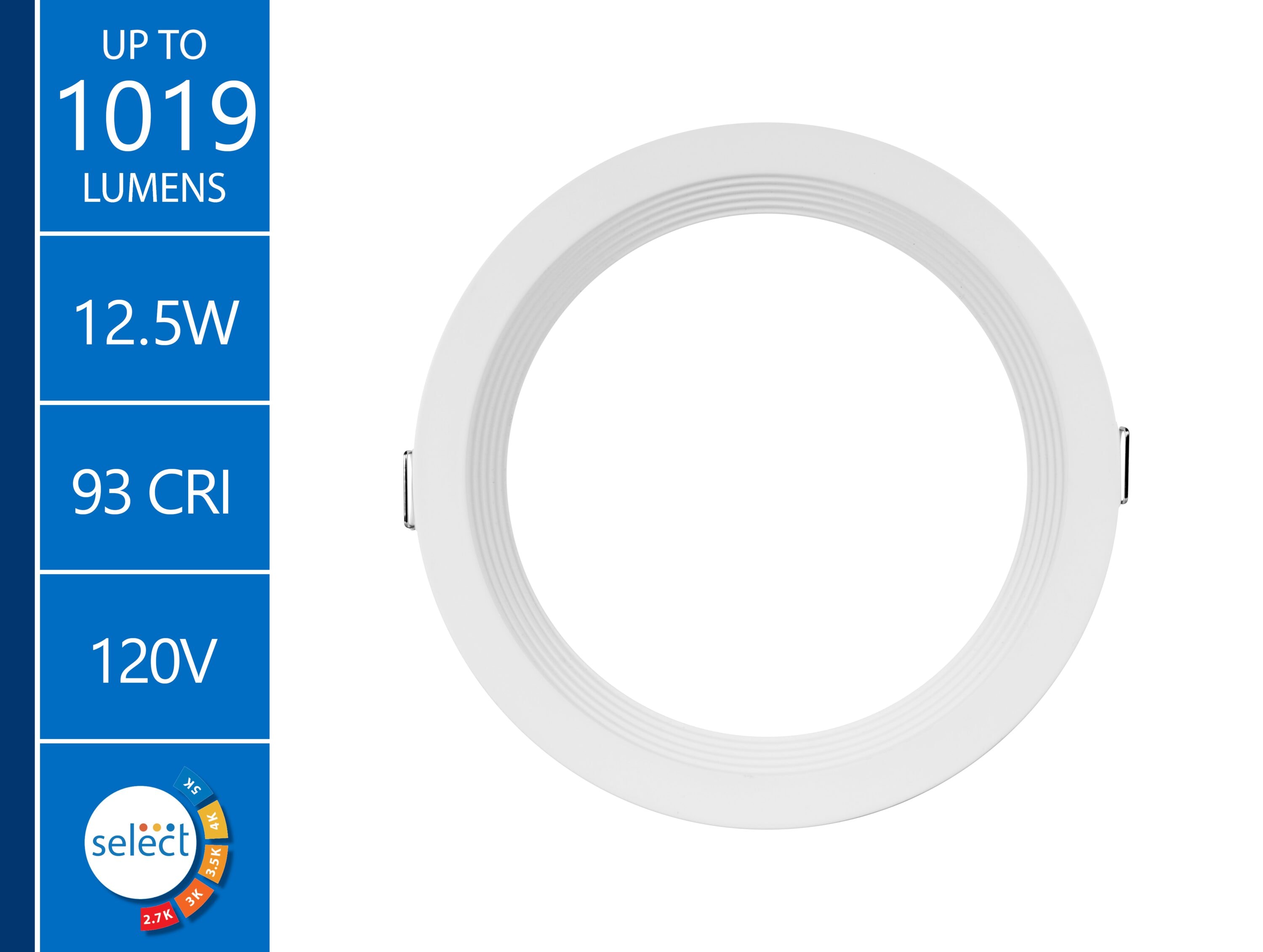

Produces up to 1019 Lumens using less than 13-Watts
Installs directly into ceiling, no housing required
6.25” diameter cut-out template included
Dimmable to 5% using standard TRIAC or ELV dimmers

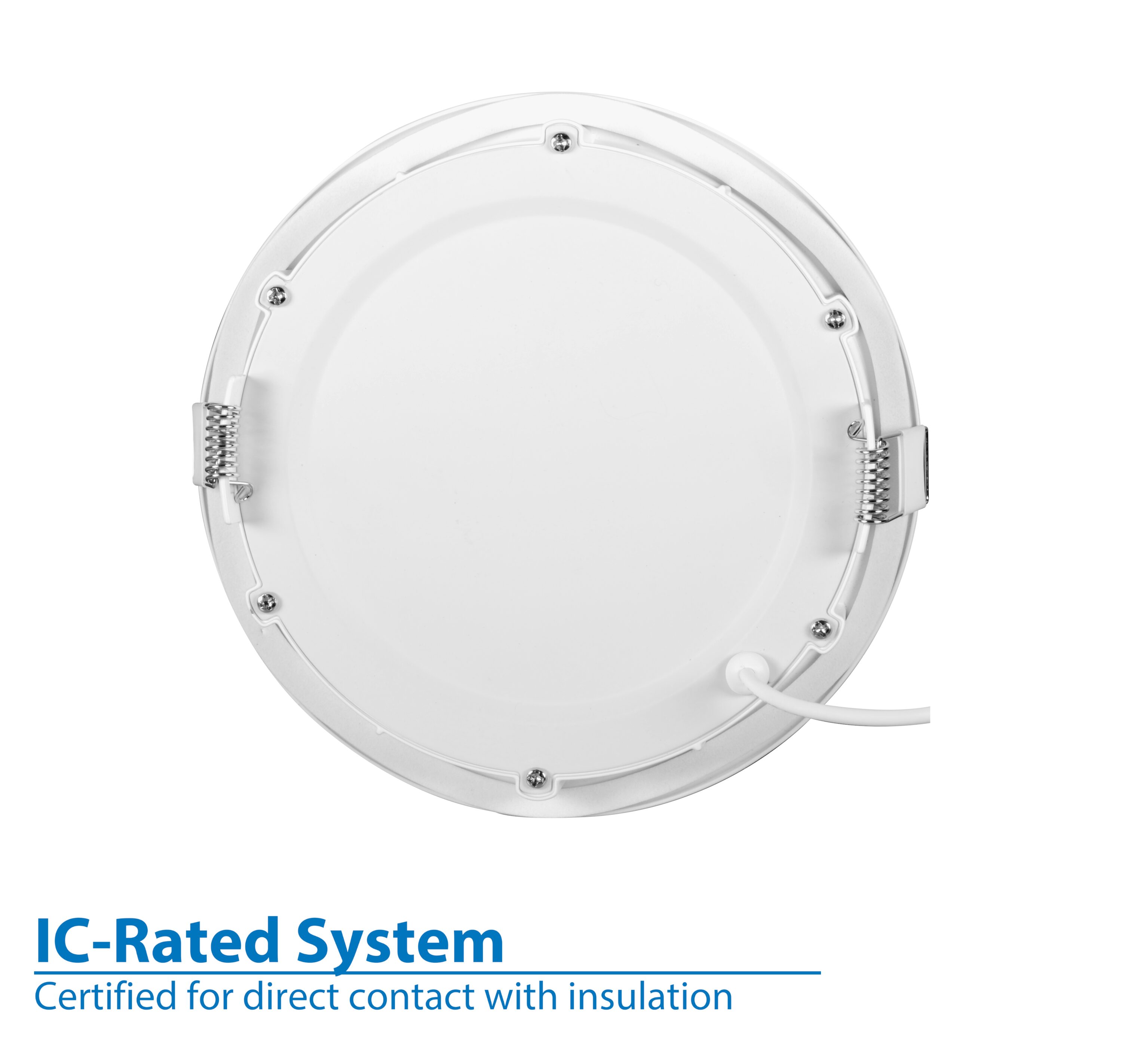

Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
Energy Star rated, Title 24, JA8, and RoHS Compliant
