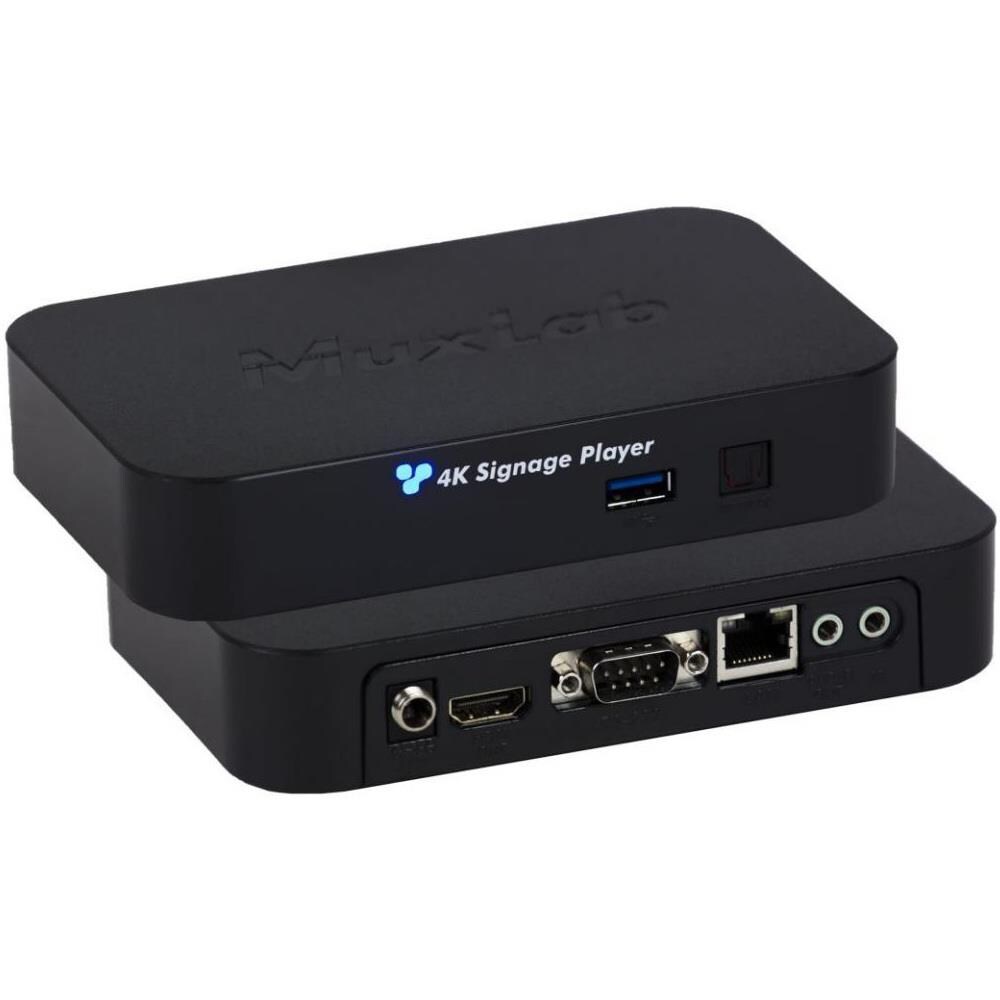

MuxLab MUX-500769 HDMI 2.0 Digital Signage and Media Player

The 500769 HDMI 2.0 Digital Signage Media Player is a digital signage player capable of receiving multiple H.264/H.265 AV content simultaneously up to 4K/60 ( 4:4:4) from a local network, the Internet, internal memory or external USB memory devices, and supports multiview capability and scheduling to automatically deliver this customized windowed AV content based on a weekly schedule. Multiple video, audio and image file formats are supported. The digital signage player is able to up-scale video to ( 4:4:4) and delivers content to a display or to another transmitter to support virtual matrix and video wall configurations. The exceptionally low bandwidth requirements of this device allows it to accept streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe. The digital signage player may be extended up to 100m from the Ethernet switch over CAT5/6 cable, and supports PoE ( PD) and may be powered by a PoE ( PSE) Ethernet Switch. Features Digital Signage Media player supporting playlists and weekly scheduler of multi-format video, image and audio files Supports up to 4K 60Hz ( 4:4:4) video streams Up-scales 1080p 60Hz video streams up to 4K 60Hz Extends local audio/video transmission up to 330ft ( 100m) over Cat5e/6 H.264/265 video codec, excellent for LAN, WiFi and Internet transmission Supports Multicast, RTSP, HLS, FLV and TS USB 3.0 port for playback of local content from external USB drive Extracts digital audio via SPDIF ( TosLink) Extracts analog audio via 2CH 3.5 mm jack RS232 and Directional IR for remote control of end-devices PoE powered, via PoE ( PSE) Ethernet Switch Specifications Environment: HDMI 2.0 Video Bandwidth: 594MHz Latency: 300ms PoE: IEEE 802.3af Power Consumption: 4.5W Weight: 1.4 lbs
