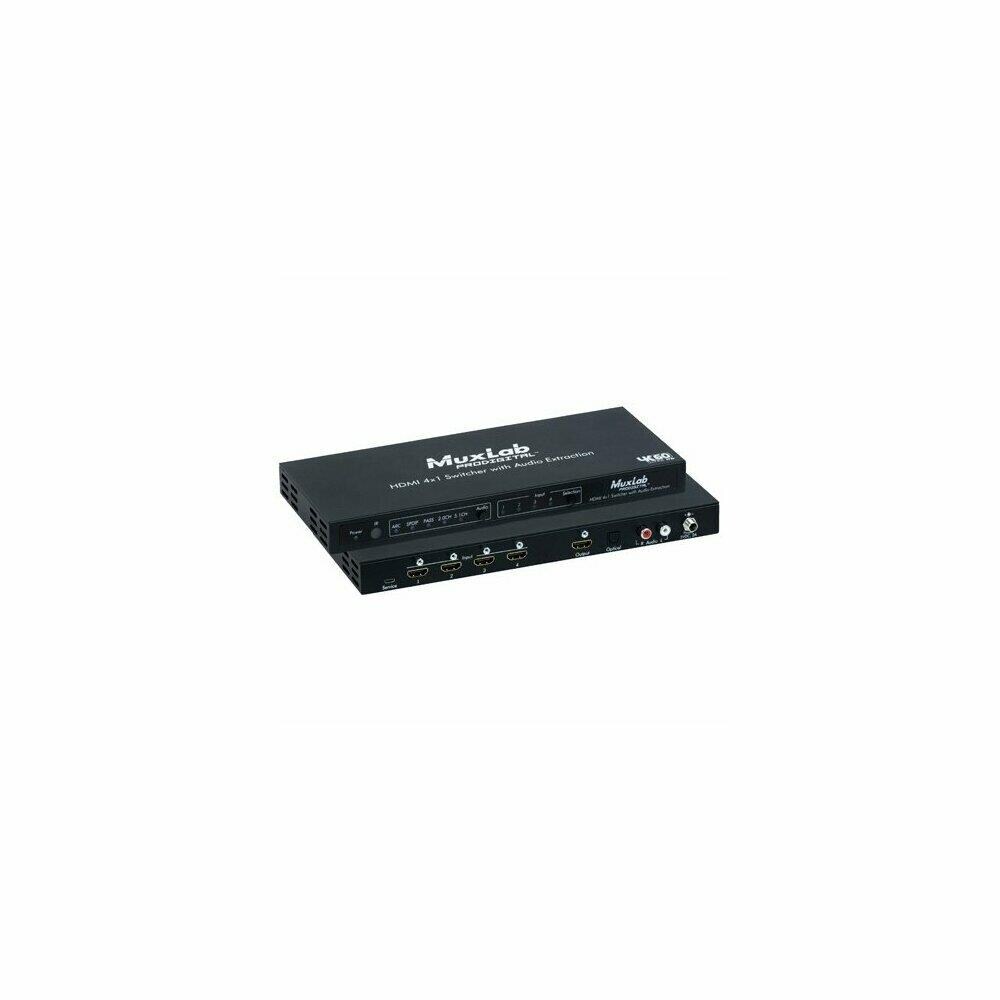

The Muxlab 500437 HDMI 4x1 Switcher with Audio Extraction, 4K/60 allows one of four HDMI sources to be switched to one HDMI display. The switcher supports resolutions up to 4K ( 3840 x 2160) 60Hz, 8-bit color and HD audio. Extracted digital audio is obtainable on an S/PDIF Toslink, and analog 2CH audio on two ( 2) RCA jacks. Audio. Return Channel ( ARC) is supported, allowing audio to be returned to the source side to be connected to audio equipment. Three audio modes are supported including pass-through, 2CH and 5.1CH audio. The switching and audio mode selections may be controlled locally via two ( 2) push buttons and remotely via IR. The device is HDCP 2.2 compliant and features LED diagnostics. Additionally, all HDMI and audio connectors are on the rear panel for neater cabling. Commercial and residential AV systems, classroom projector systems, digital signage,boardroom systems, collaborative PC systems, medical information systems. Features. 4x1 HDMI Switcher with Audio Extraction 4K and 60. Switches between four HDMI sources to one HDMI display. Supports resolutions up to HDMI 2.0 4K/60. Supports 12-bit Deep Color, 3D. Extract LPCM 2.0, Dolby 5.1 and DTS 5.1 audio to digital S/PDIF Toslink and LPCM. 2.0 to analog 2CH RCA Jacks. Supports pass-through of LPCM 7.1, DolbyTrueHD, Dolby DigitalPlus, Dolby. Atmos, DTS-HD Master Audio and DTS:X. Push button selects between four HDMI inputs, and three audio modes. Support Audio Return Channel. IR Remote Control. Environment: HDMI 2.0. Devices: DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops. Transmission: Transparent to the user. Frequency: 25 to 594 MHz. Video Signal: HDMI 2.0 protocol and HDCP 2.2. ConnectorsL HDMI Type A 19-pin female. LEDs: One LED for Power- Four LEDs for HDMI select- Five LEDs for Audio select. Manual Control: Push button at the front of the unit for video input and audio mode select. Resolution: 480i to 1080p 50/60 fps- 1080p 2-4/50/60 fps- 3840 X 2160 2-4/2-5/30/60 fps. Color: 8
