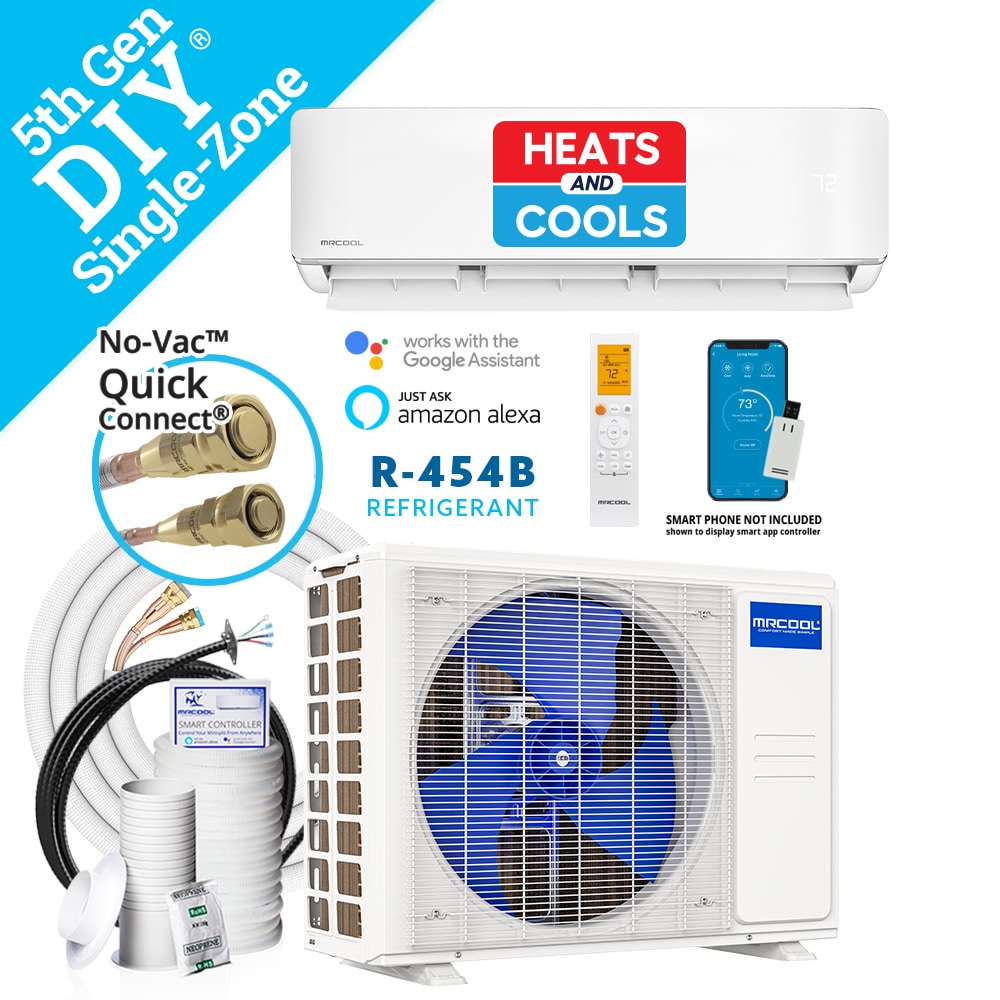

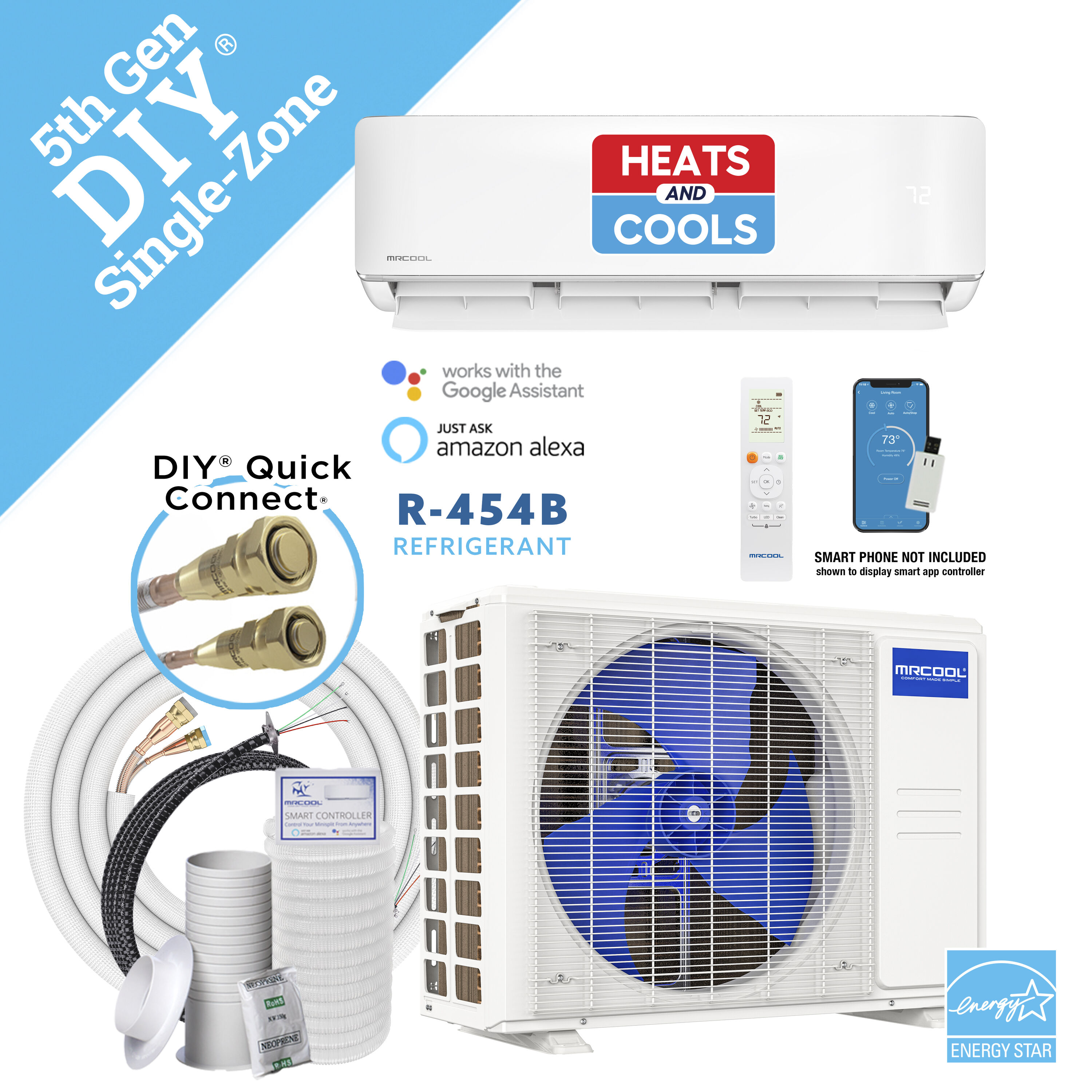

MRCOOL DIY 5th gen Energy Star 1 zone 12000-BTU Ductless Mini Split Air Conditioner Heat Pump Included with 115-Volt
Item #6633406 |
Model #DIY-12-HP-WM-115D25O
View Lower Price In Cart
View Lower Price In Cart
Energy Star certified 23.5 SEER2, 10.2 HSPF
Easy DIY installation: pre-charged R-454B 25ft quick connect line doesn't require special tools, equipment, or training
Designed to efficiently heat and cool a single 350-550 Sq Ft room
SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection
Variable-speed DC inverter compressor technology cuts operating costs
Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
Gold fin condenser corrosion resistant - live on the coast, but don’t worry, our condenser is built to resist long-term corrosion
5-year parts warranty and 7-Year compressor
Follow me-feature, dehumidifying operation, auto mode, louver position memory, and sleep mode
General | |||
|---|---|---|---|
Color/Finish Family | White | Control Type | Dimmable LED |
Manufacturer Color/Finish | White | Filter Type | Nylon |
Series Name | DIY 5th gen Energy Star | Mounting Location | Wall |
Type | Quick connect (DIY) | Refrigerant Type | R-454B |
Application | Heating/Cooling | Number of Tons | 1 |
Dimensions | |||
|---|---|---|---|
Air Handler Depth (Inches) | 7.44 | Height (Inches) | 21.85 |
Air Handler Height (Inches) | 11.69 | Line-set Connection Size | 1/4-in x 3/8-in |
Air Handler Width (Inches) | 31.57 | Line-set Length | 25-ft |
Compressor Depth (Inches) | 11.93 | Maximum Coverage Area (Sq. Feet) | 550 |
Compressor Height (Inches) | 21.85 | Weight (lbs.) | 65.48 |
Compressor Width (Inches) | 30.12 | Width (Inches) | 30.12 |
Cord Length (Feet) | 25 | Zone Capacity | 1 zone |
Depth (Inches) | 11.93 | Amperage | 20 |
Features | |||
|---|---|---|---|
24 Hour Timer | No | Minimum Outdoor Temperature (Fahrenheit) | -13 |
Annual Fuel Utilization Efficiency % (Percentage) | 0 | Multi-Directional Air Control | Yes |
Auto Cool | Yes | Noise Rating | Quiet (45 decibels or below) |
Automatic Shut-Off | Yes | Number of Speeds | 5 |
Cooling BTU Rating (BTU) | 12000 | Oscillation | Yes |
Decibel Rating (Highest Setting) | 43 | Overload Protection | Yes |
Decibel Rating (Lowest Setting) | 18 | Pre-Charged Line Set | Yes |
Fan Only Option | Yes | Quiet Mode | Yes |
Full Load Amperage Requirement (Amps) | 20 | Remote Control Included | Yes |
Heat Pump Included | Yes | Sleep Mode | Yes |
Heating BTU Rating (BTU) | 12000 | Thermostat | No |
Hub Required | No | Timer | Yes |
Kit | Yes | Voice Controlled | Yes |
Low Voltage Compensation | Yes | Voltage (Volts) | 115 |
Lowe's Exclusive | No | ||
Compatibility | |||
|---|---|---|---|
App Compatibility | App required | Works with Android | Yes |
Bluetooth Compatibility | No | Works with Apple HomeKit | No |
Smart Compatible | Yes | Works with iOS | Yes |
Wi-Fi Compatibility | Yes | Works with SmartThings | No |
Works with Amazon Alexa | Yes | Works with the Google Assistant | Yes |
Warranty | |||
|---|---|---|---|
Warranty | 5-year limited | ||
Certifications | |||
|---|---|---|---|
AHRI Certified | Yes | Safety Listing | cETLus safety listing |
CA Residents: Prop 65 Warning(s) | Seasonal Energy Efficiency Ratio (SEER2) | 23.5 | |
Energy Efficiency Ratio (E.E.R.) | 12.5 | Heating Seasonal Performance Factor (HSPF) | 10.2 |
ENERGY STAR Certified | Yes | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40101700 | ||
