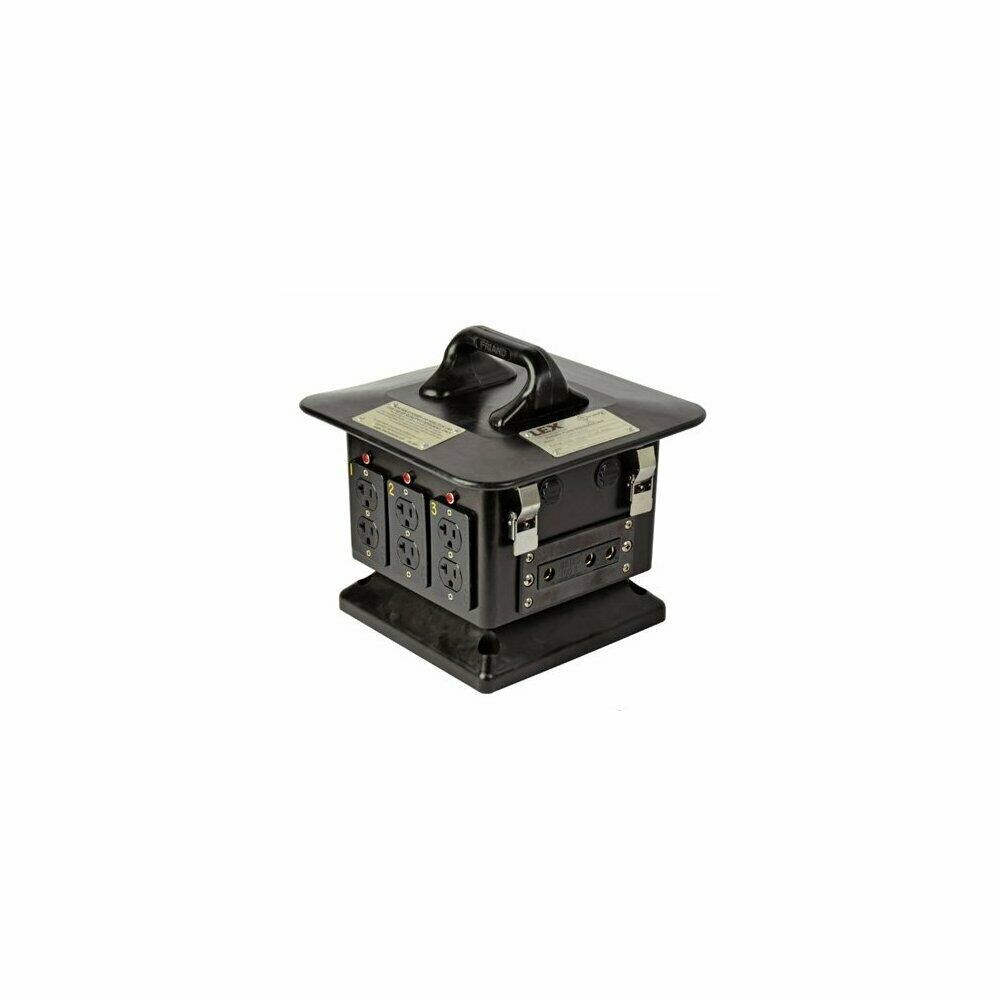

LEX Products LEX-DBS100FPB4B2 100A Lunch Box Stage Pin Inlet with 5-20 Duplex Receptacles and Feed Thru Power Distribution Box

Lex's DSB100FP-B4B2 is most often found in motion picture and television production sutdios and is typically fed from a larger distriution box. It is housed in a stackable rubber enclosure and distributes power to five (5) NEMA 5-20 duplex receptacles from its stage-pin inlet. Because of its compact size, rugged enclosure and built-in overcurrent protection, it's a fan favorite among lighting and rigging crews. Breakers are sealed inside the DSB100FP-B4B2's hinged lid for added safety.FeaturesHeavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosionBreakers mounted under hinged lid for enhanced safetyStackable and compact for easy storage and convenient portabilityElevated base keeps receptacles above ground levelSpecificationsRating: 100 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire,120 VACEnvironmental Rating: NEMA 1 IndoorInput: (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin inletOutput: (5) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptaclesFeed Thru: (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacleOvercurrent Protection: (5) 20 Amp, Single Pole branch-rated circuit breakersWeight: 16 lbs
