At a Glance
KitchenAid 30 inch Single Electric Wall Oven with Air Fry Single-fan and Self-cleaning ( Stainless Steel with PrintShield Finish )
Item #5709243 |
Model #KOES530PPS
Air Fry Mode circulates hot air to crisp and brown
Dishwasher-Safe Air Fry Basket allows air circulation around food
EVEN-HEAT True Convection for consistent baking and roasting
Integrated Meat Thermometer takes the guesswork out of roasting meat
SATINGLIDE Roll-Out Extension Rack for easy loading of bakeware
FIT System Limited Guarantee allows oven to match existing cabinet cutout height
EASYCONVECT Conversion System automatically adjusts temperatures
EVEN-HEAT Preheat maintains temperature while food is added
4,000-Watt Broil Element uses high heat to sear and sizzle
General | |||
|---|---|---|---|
Appliance Type | Single electric wall oven | Number of Bake Elements | 2 |
Bulb Type | Halogen | Number of Broiler Elements | 1 |
Control Type | Electronic | Interior Light(s) Type | Halogen |
Handle Color | Stainless Steel | Oven Interior Color | Blue |
Manufacturer Color/Finish | Stainless Steel with PrintShield Finish | Convection Element Type | Single-fan |
Appliance Color/Finish | Stainless steel | Cleaning Method | Self-cleaning |
Number of Oven Rack Positions | 3 | ||

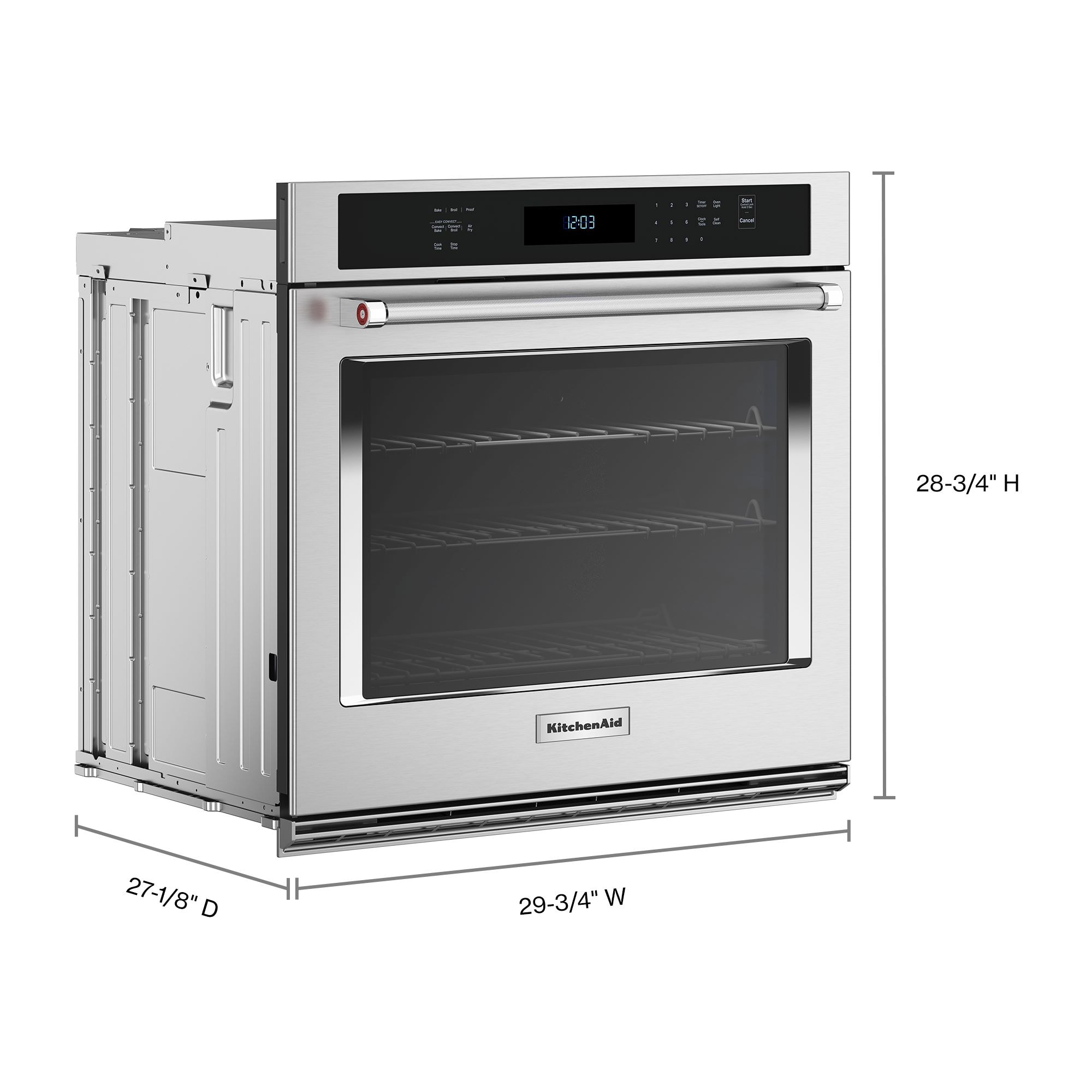

Dimensions | |||
|---|---|---|---|
Actual Depth with Door Open (Inches) | 46.75 | Cutout Depth (Inches) | 24 |
Common Oven Size | 30 inch | Cutout Height (Inches) | 28 |
Amperage | 20 | Cutout Width (Inches) | 28.5 |
Actual Width (Inches) | 29.75 | Oven Capacity (Cu. Feet) | 5 |
Actual Height (Inches) | 28.75 | Actual Depth (Inches) | 27.125 |
Features | |||
|---|---|---|---|
Hub Required | No | Glide/Rollout Racks | Yes |
Fingerprint-Resistant | Yes | Half/Split Rack | No |
Customizable | No | Oven Light | Yes |
Voltage | 240 | Self-Cleaning Oven Racks | No |
Automatic Shut-Off | Yes | Light(s) Control | Oven light touch pad |
Wattage | 3200 | Installable Under Cooktop | Yes |
Delay Clean | No | Adjustable Cleaning Levels | No |
Hidden Bake Element | Yes | Light Self-Clean Option | Yes |
Lowe's Exclusive | Yes | Heavy-Duty Self-Clean Option | Yes |
Oven Window | Yes | Favorite Setting | No |
Sabbath Mode | Yes | Oven Door Lock | Yes |
Time Bake | Yes | Voice Controlled | No |
Luxury | Yes | Bake Element Location | Top |
Cooking Features | |||
|---|---|---|---|
Air Fry | Yes | Automatic Convection Conversion | Yes |
Air Sous Vide | No | Delay Bake | Yes |
Slow Cook | No | Keep Warm Setting | Yes |
Steam Bake | No | Oven Meat Probe | No |
Steam Roast | No | Proofing | Yes |
True Convection | Yes | Speed Cook | No |
Dehydrator Oven | No | Steam Cook | No |
Rapid Preheat | No | Temperature-Sensor Baking | Yes |
Convection Oven | Yes | ||
Compatibility | |||
|---|---|---|---|
Works with Apple HomeKit | No | Works with the Google Assistant | No |
Works with SmartThings | No | Bluetooth Compatibility | No |
Works with Amazon Alexa | No | Smart Compatible | No |
Works with iOS | No | Works with Sonos | No |
Works with Android | No | Matching Previous (Model #) | KOSE500ESS |
Wi-Fi Compatibility | No | Matching Newer (Model #) | KOES530SPS |
App Compatibility | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing | |
ENERGY STAR Certified | No | ADA Compliant | Yes |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 52141500 | ||
Check out the Best Selling Single Electric Wall Ovens on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The oven features even heating, fast preheat, and a versatile air fry function that customers find produces delicious results. The spacious interior and convenient sliding racks are also praised. However, some customers have experienced issues with the oven not reaching the set temperature, lengthy preheat time, and problems with the door or controls. While most customers are very satisfied with the oven's performance, a small number have had negative experiences.
Customer review summary generated by AI, including incentivized reviews.Control panel went out in less than two years.
I do not feel like this oven has worked correctly from the get go . Could not get air fry to work. Then we started getting error codes . Our local repair person had me reset the oven several times. Error. F8EO.
From kitchenaid.com
A work of art
[This review was collected as part of a promotion.] As a very frugal person I have been using a 40-year-old oven which recently started to fail so I replaced it with this new one which I love. Not only do the features make it so much more functional but it’s also beautiful with a gorgeous cobalt blue interior and very bright lighting. My old oven was very dim and difficult to see the food cooking with the door closed but this one is so bright I don’t have to open the door to see the food. I al...
From kitchenaid.com
30" wall oven lasted less than 1 year. Terrible
i bought a 30" wall oven (Jan 2025) and needed service within 1 year. We got an F2E1 error message. the service tech has been out 5-6 times to fix it over a 6 month period and it is still not working. even their engineering department can't fix it, but they will not replace it. absolutely terrible product. Never buy a Kitchenaid oven. Kitchenaid does not stand behind their product.
From kitchenaid.com
Hello! We are so sorry to hear about your experience. To help us investigate what happened and make things right, could you please send us a quick ema... Read More
Wishing it worked as good as it looks
[This review was collected as part of a promotion.] This oven looks great. My biggest issue is the lack of correlation between the temp listed on the screen does not correspond to the actual in oven temps. I thought so early. So I bought a Kitchen Aid in oven physical thermometer. That showed an up to 50 degree delta. I adjusted the temp of oven that was available (raised to max of 30 degrees). The oven is still 15-20 degrees short of the mark. Also, the oven display will say that it is a...
From kitchenaid.com
Thank you for sharing your experience with us. We regret to hear that your Wall Oven is not living up to your standards. If you have any questions or ... Read More
Nice unit but could be better
[This review was collected as part of a promotion.] I bought a new build 5 months ago and KitchenAid appliances were included from the builder, including this oven. It's been a good oven overall so far. I haven't had any issues with it as of yet, but there are a couple of things that 'bother' me about the oven. The biggest issue is that the oven vents right into my home. I've had many ovens in the past and one vented ever so slightly, but this one is like a heater for the home. That might be gr...
From kitchenaid.com
Junk
This oven as supplied by our builder as part of an upgraded “gourmet kitchen” package. It will not hold a consistent temperature. We have had service out twice and both times the main board and probe were replaced. They are no longer accepting repair tickets from KitchenAid as they say there is nothing they can do and it’s a consistent problem with this oven. My wife and arevery avid bakers and cooks. It’s embarrassing to serve guests undercooked desserts.
From kitchenaid.com
We truly appreciate you reaching out and sharing your experience with us. We're very sorry to hear about the trouble you're having with your KitchenAi... Read More
Lowe's wall oven purchase
Disaster. Know that for Lowes to honor repair you MUST buy an extended warranty whereby commissions are earned, or use a Lowe's credit card, or have their installers install the product (kickback). If you feel you have to return the product for whatever reason, you MUST do so within 48 hours from delivery. I bought a wall oven that after 3 weeks would not brown items such as muffins. I contacted Lowe's twice at the appliance section and once personally to customer service. All said the party l...
Verified Purchaser
1
1
1
Thank you for sharing your experience with us. We apologize for the concerns you are experiencing with your Wall Oven and would like to see if we can... Read More

Best baking
[This review was collected as part of a promotion.] We got this over a month ago and I’m so happy I did. The oven bakes beautifully. For Thanksgiving I had three things going in the oven at the same time and all baked great. In my old oven anything on the bottom rack would burn so I could only do one rack at a time. It also made the most perfect beautiful rolls for our dinner. I am very happy with my purchase.
From kitchenaid.com
Good but not great experience.
The wall oven with a microwave on top is a nice appliance, but not without some shortcomings. First, when we tried the oven for the first time, white smoke came from under the over at the front door seal. We looked online and saw that there is a "burn in" process, but could find no mention of this process in a KitchenAid manual. We ran the over at 400 for 20 minutes and that seemed to resolve the issue. (If we are wrong, KitchenAid, please reply.) For those of you who are complaining about th...
From kitchenaid.com
Absolutely Inlove!!!
[This review was collected as part of a promotion.] I am absolutely thrilled with my new KitchenAid 30" Single Wall Oven with Air Fry Mode! This oven has truly changed the way I cook. First of all - it's beautiful and I love looking at it every time I go into the kitchen. The air fry mode is a awesome—I’ve made crispy fries, chicken wings, and even roasted vegetables with hardly any oil. I love how evenly everything cooks (big change from my last oven). The large capacity is great too. We have...
From kitchenaid.com
