The Heavy-Duty Arc-Angle Framing Square combines innovative design and rugged durability to deliver the ultimate solution for professionals. Constructed from aluminum that is 60% thicker than a standard framing square, it features a durable matte-black anodized coating that resists corrosion and reduces glare. High-visibility, bold white markings are laser-etched deep into the metal surface to enhance readability and resist wear. The patented PIVOT PLUS® design allows users to scribe 160 different radius arcs and circles in 1/8" increments. Traditional scribe guides at 1-1/2", 3-1/2", and from 5-1/2" to 13-1/2" are spaced in 1/8" increments, enabling users to scribe 66 different widths for rip cuts and layout applications. New integrated common rafter marking guides provide fast, accurate, and repeatable layout for plumb and level cuts, while allowing a single strike line across wider lumber at a greater range of angles. Precision 1/16" scales are featured on all rulers, and a new set of conversion tables reflects the real-world needs of today's professional.

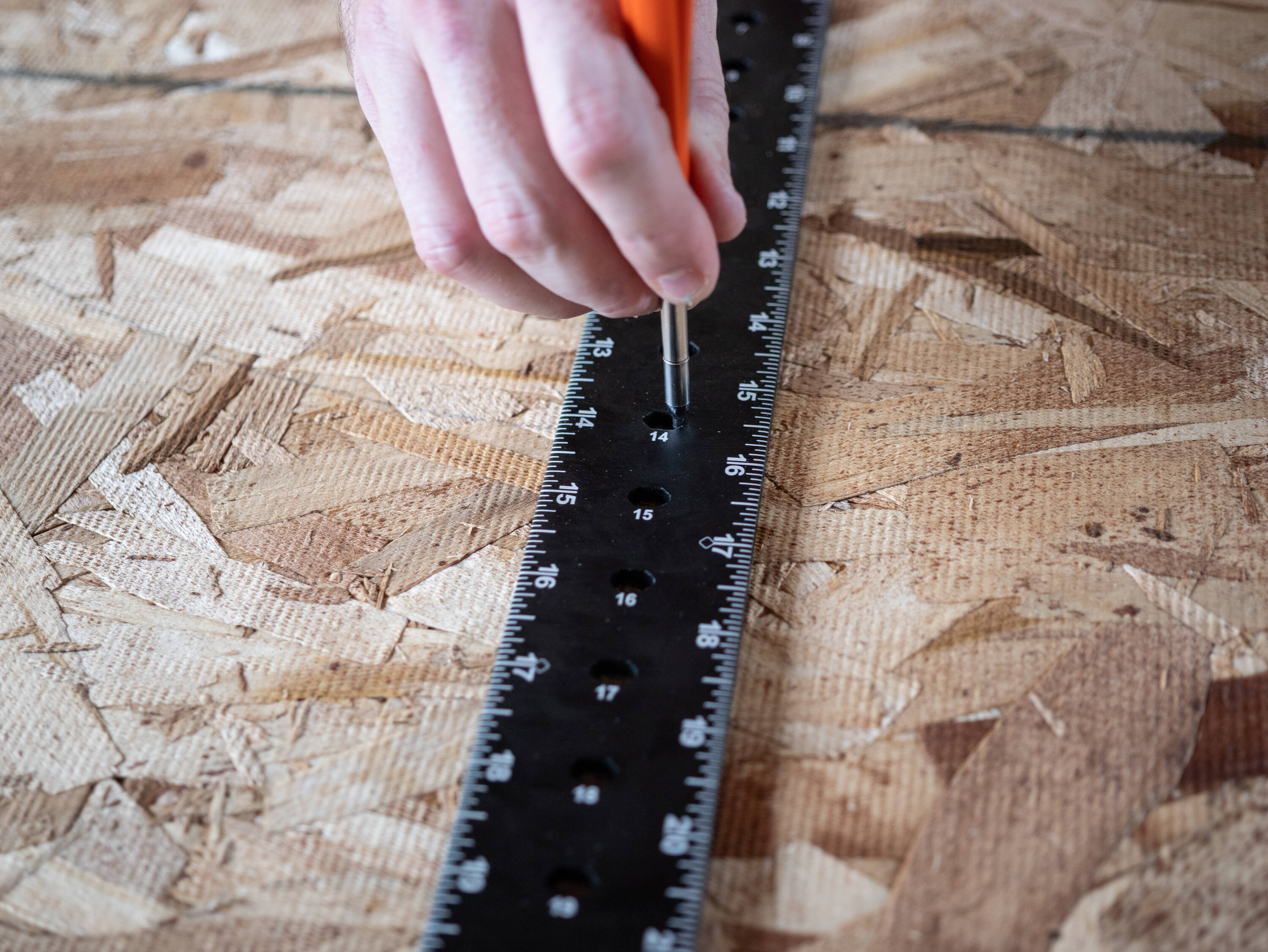

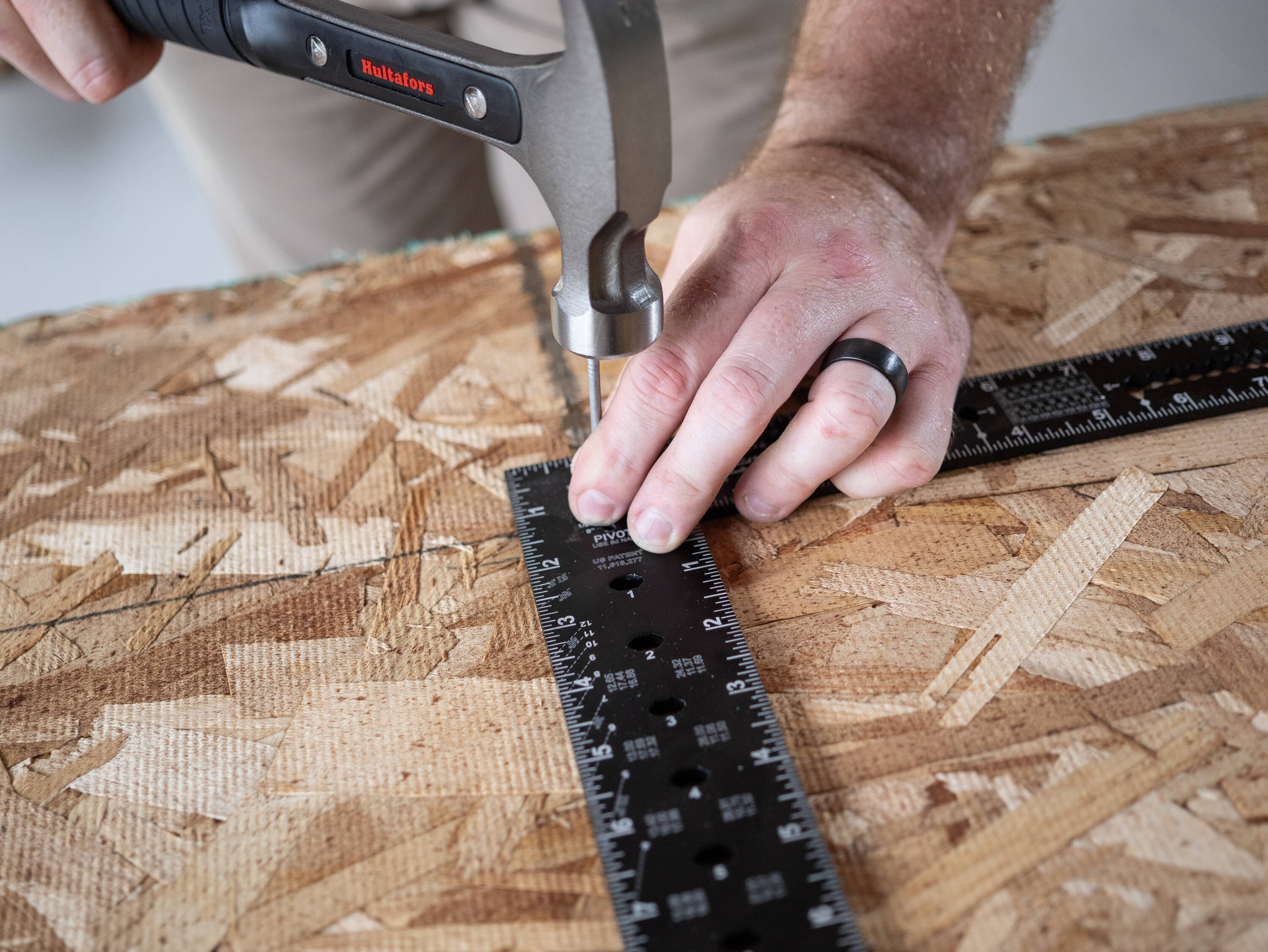

Patented PIVOT PLUS® quickly scribes up to 160 different radius arcs and circles in 1/8" increments
60% thicker aluminum frame for exceptional strength and durability
Scribe notches at 1-1/2", 3-1/2" and from 5-1/2" to 13-1/2" in 1/8" increments
EZ-Read™ precision laser etched markings in 1/16" increments
Common rafter marking guides streamline measurements for plumb and level cuts for efficient layout
Matte black anodized coating reduces glare
Integrated conversion tables; pitch to degrees, inch fraction to decimal inch, inch fraction to decimal feet, number of joists, studs, or rafters in run feet-inches, brace table
