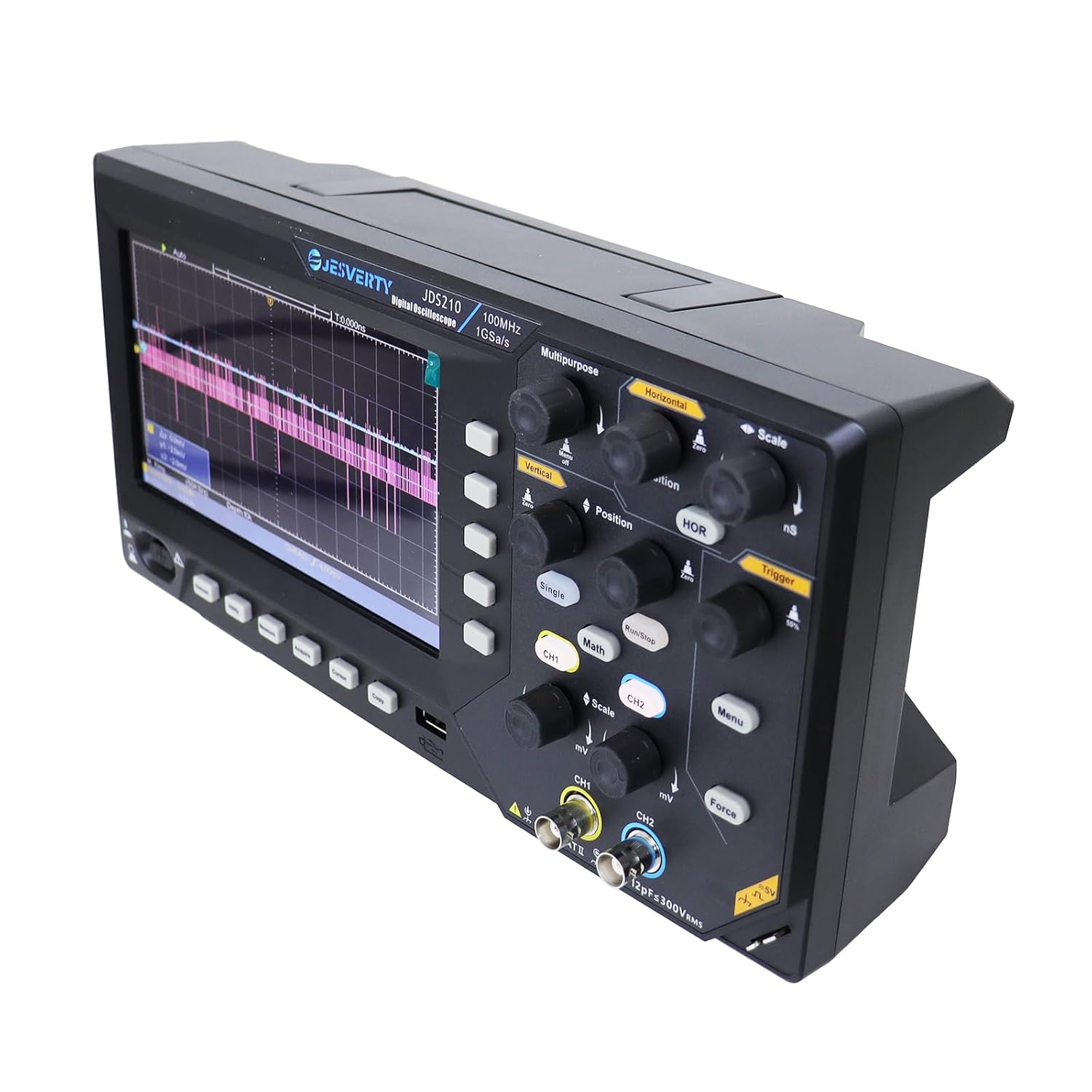

The Jesverty JDS210 is a professional-grade, dual-channel digital oscilloscope designed for precision signal analysis across a broad spectrum of applications—from electronics development and automotive diagnostics to industrial testing and advanced research. Its core performance is built around a 100MHz bandwidth and a 500 MS/s (mega-samples per second) real-time sampling rate on both channels, enabling accurate capture of high-speed signals
100MHz bandwidth, 500 MS/s sampling rate, wide timebase (2 ns–1000 s/Div), vertical scaling (20 mV–5 V/Div), with storage for 16 waveforms and USB transfer.
7-inch TFT LCD (800×480) with 65K colors and 4 cursor modes for precise voltage/time measurements and multi-waveform tracking.
Compatible with 1X–1000X probes,auto-ranging simplifies horizontal and vertical adjustments for various signal types.
Built-in 6-digit hardware frequency counter (2 Hz–20 MHz) and wide current measurement range (100 mA/V–1 kA/V),USB storage and PC connectivity.
30+ automated measurements, customizable menus, LABVIEW/SCPI support, secondary development, and DC power for portability
