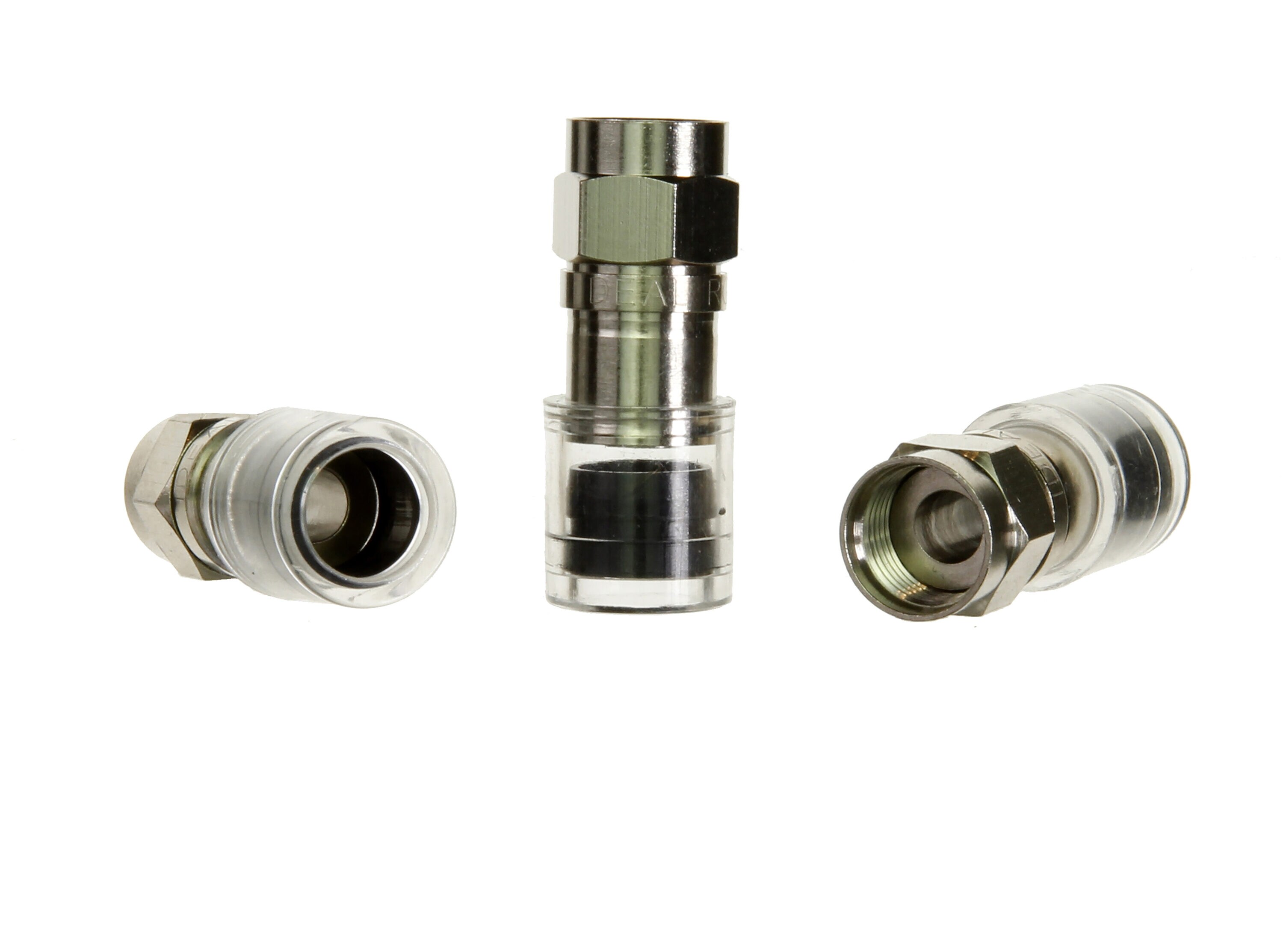

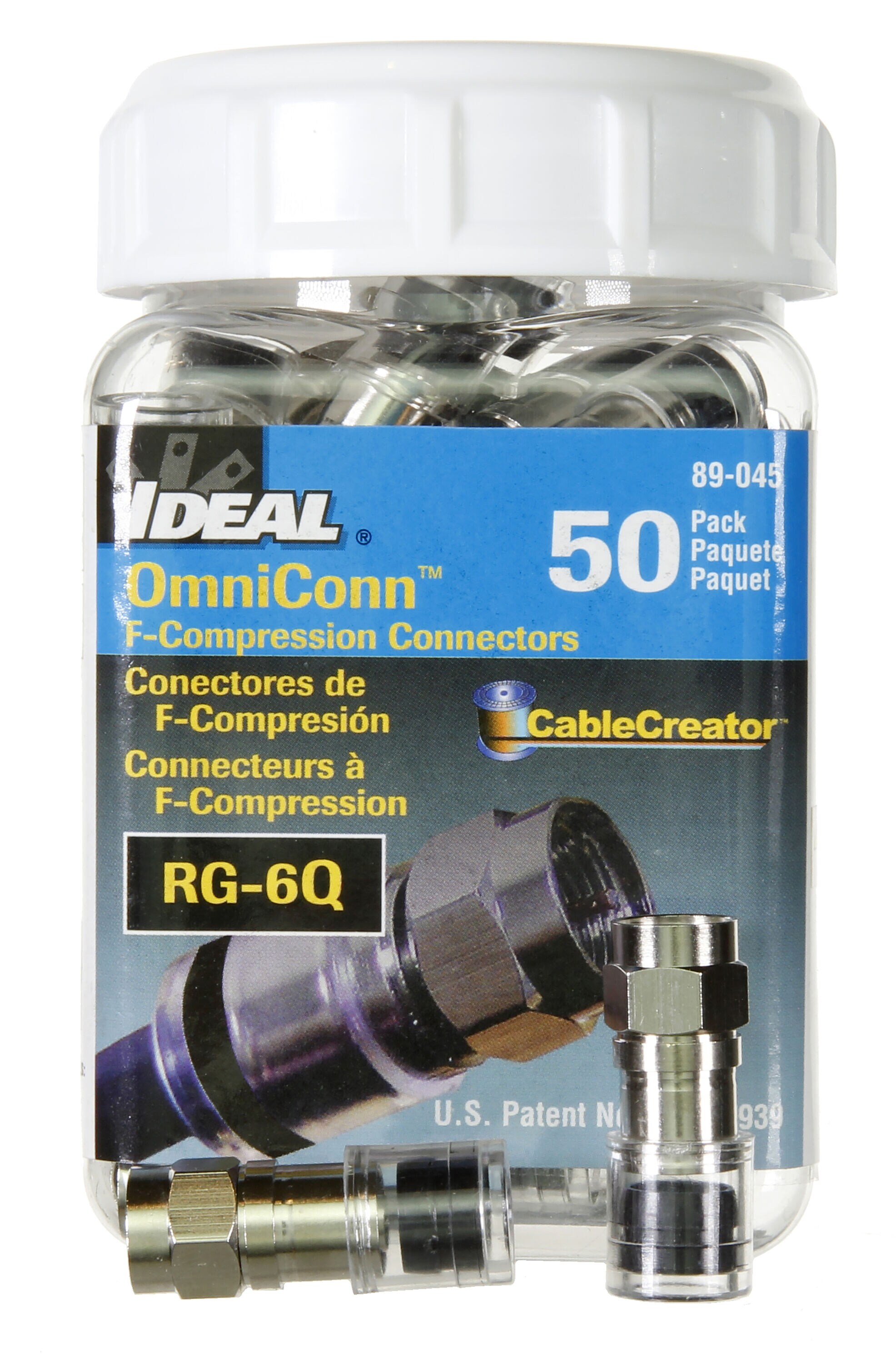

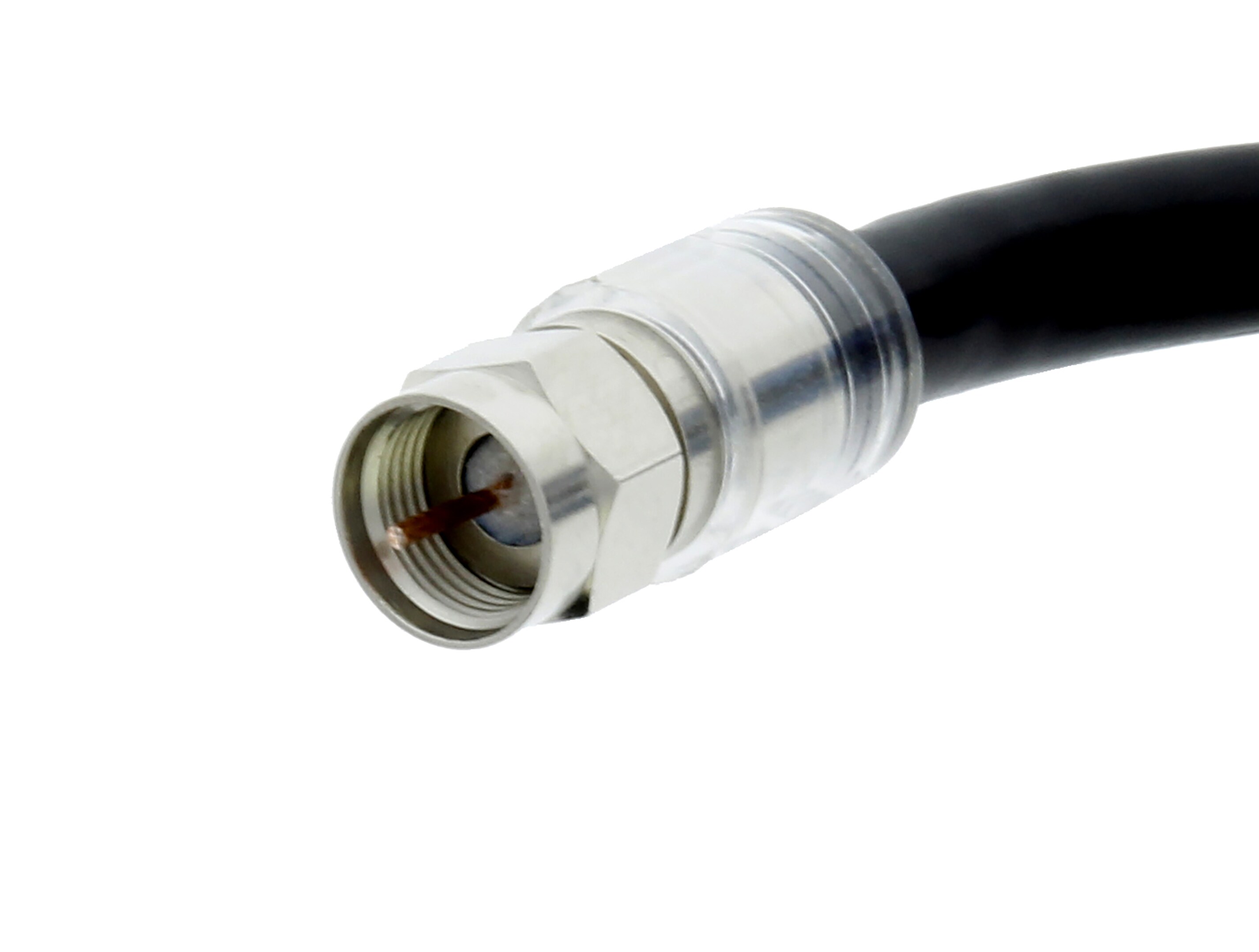

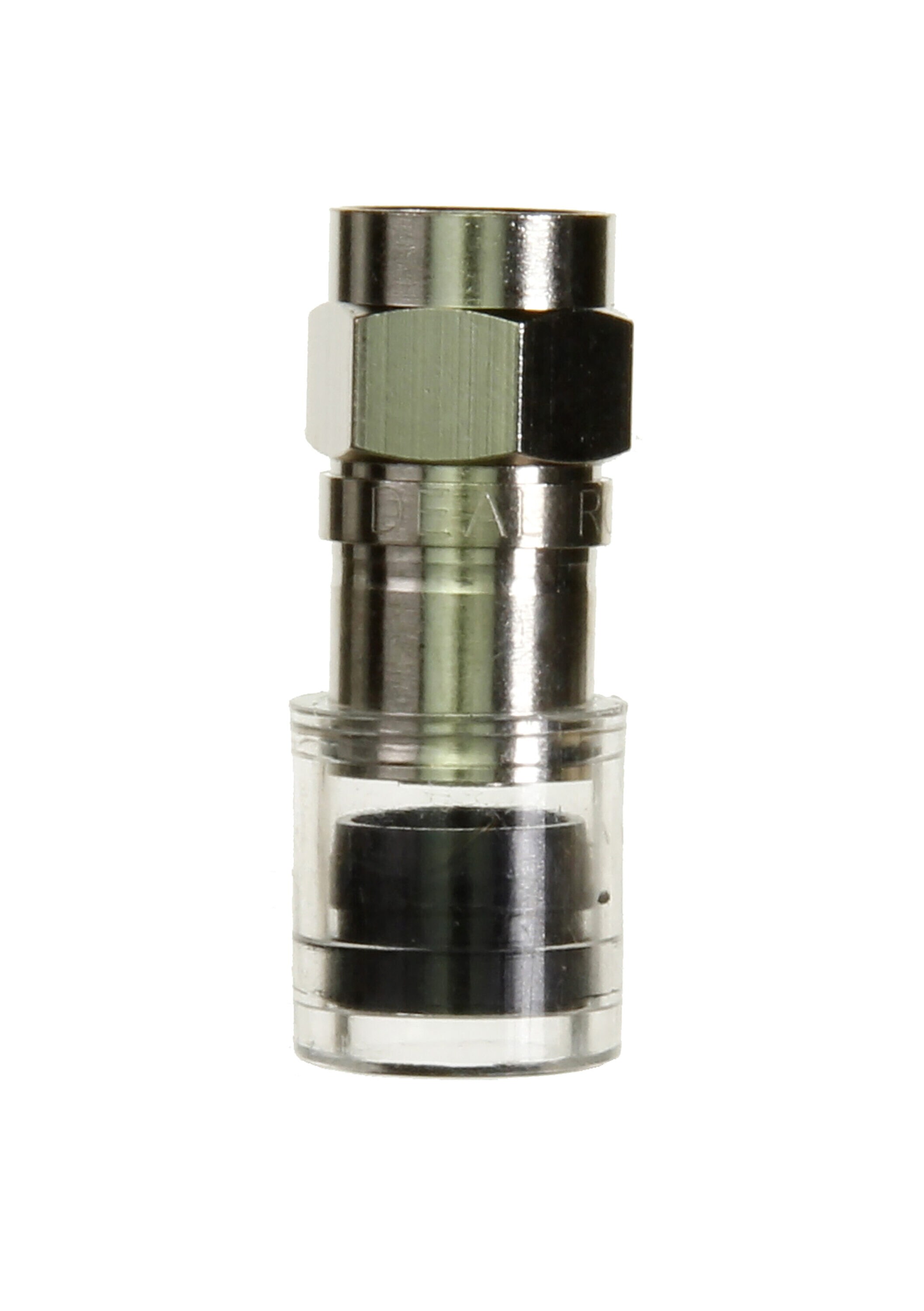

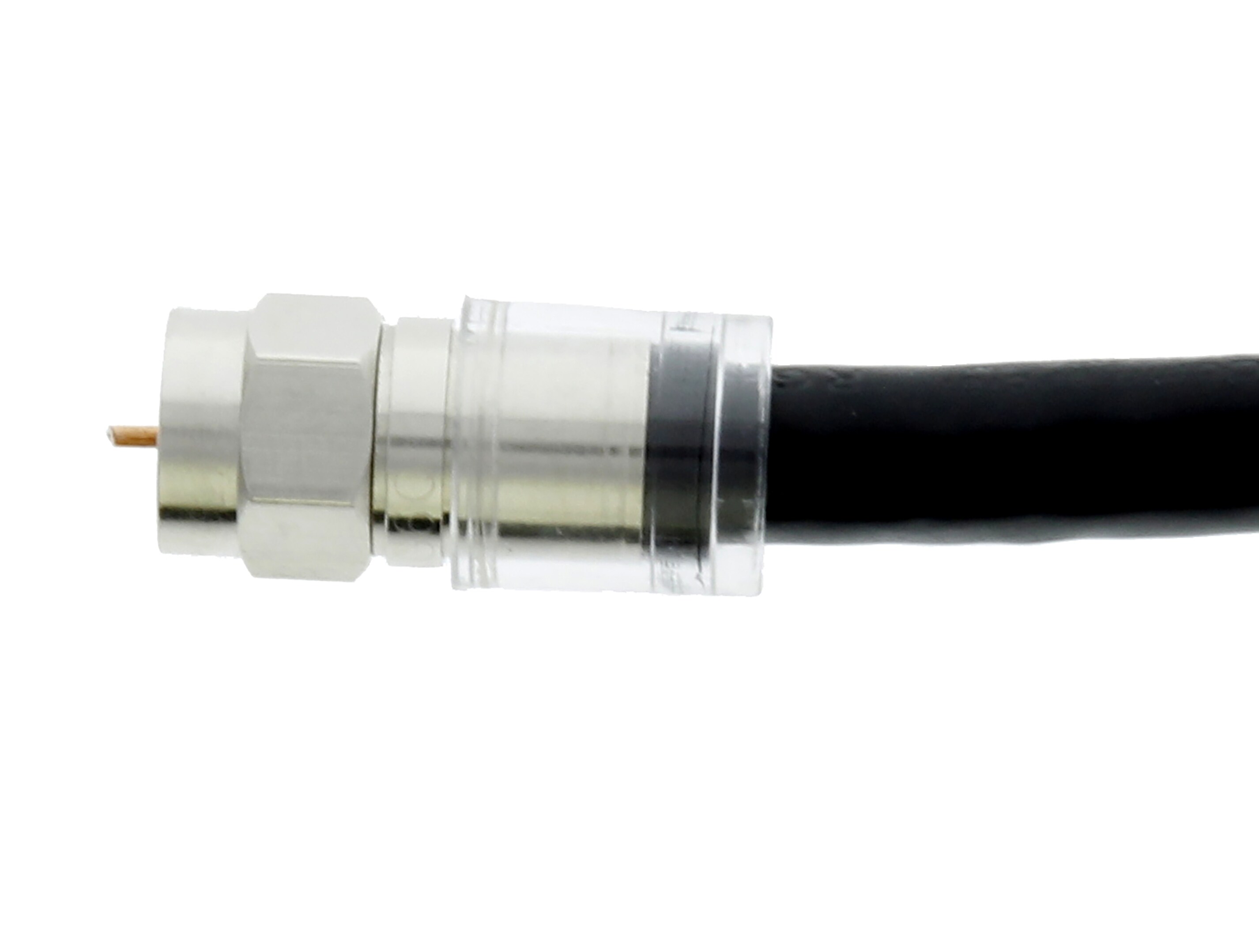

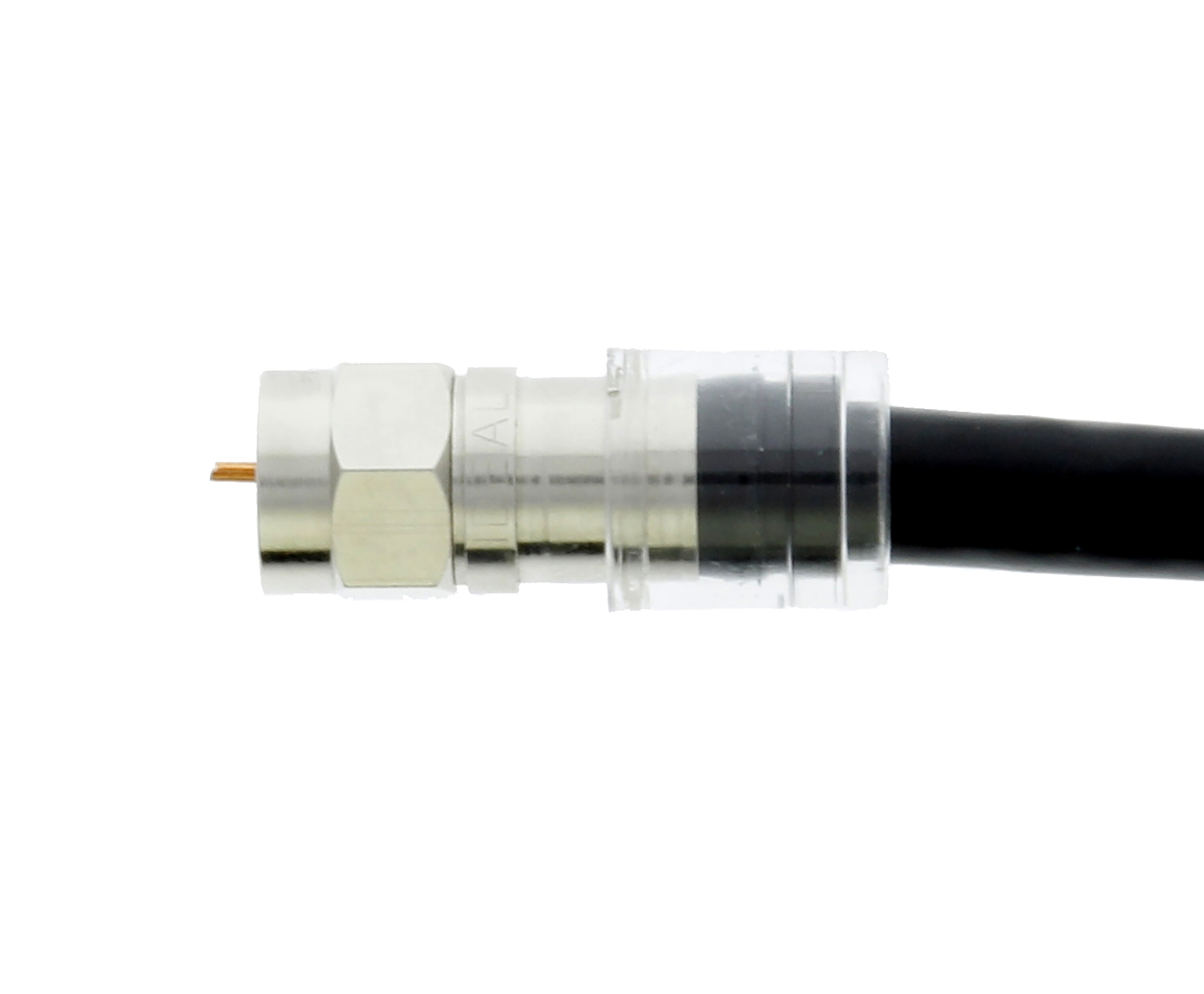

The IDEAL OmniConn F connector is a cable specific connector solution For RG-6 Quad coax. The OmniConn connectors have a combination brass and plastic exterior and an inner O-ring to provide a weather proof connection suitable for just about any application from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications - indoors or outdoors. An internal patented sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.

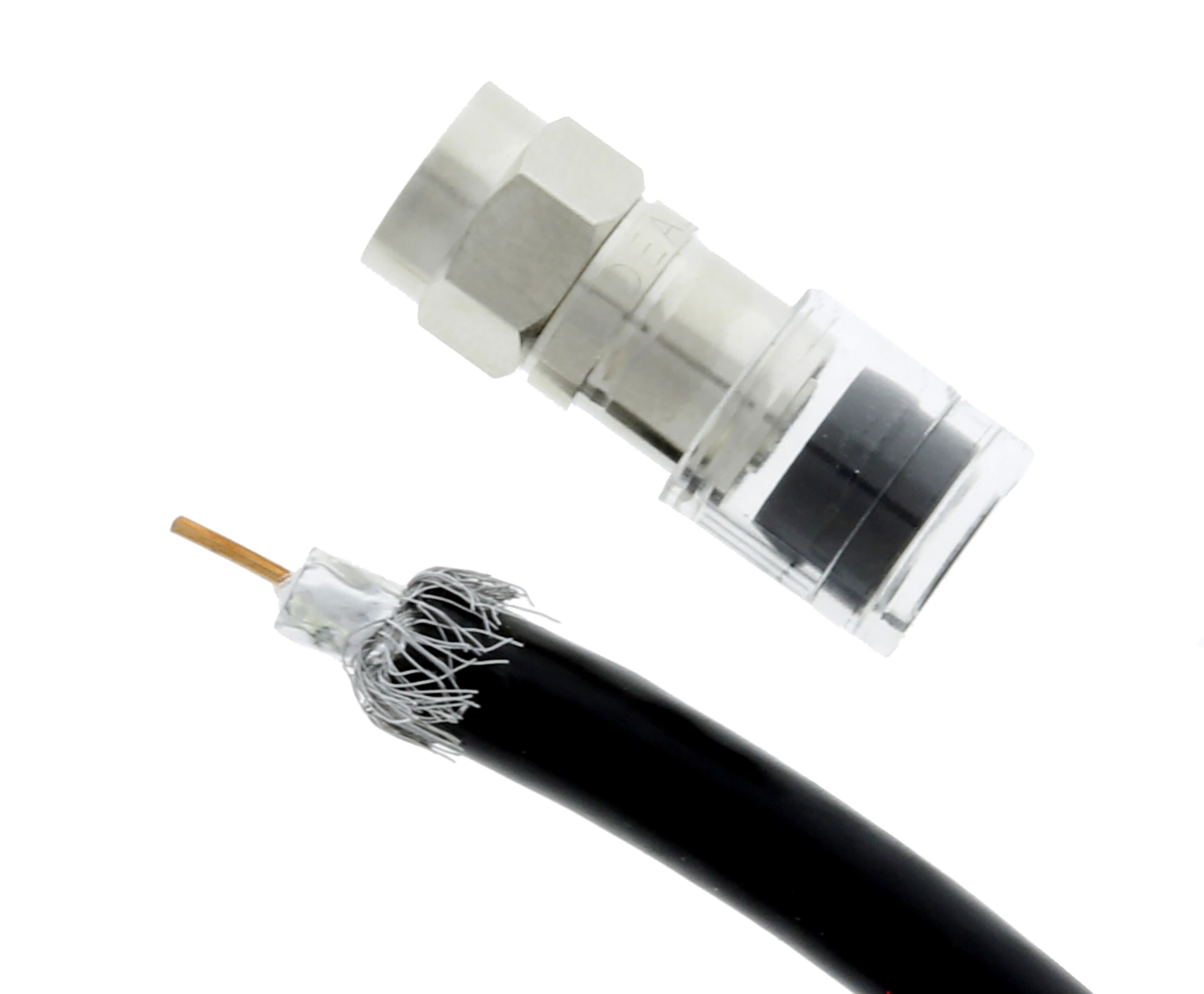

Accepts RG-6 Quad coax cables
Center conductor range: All
Dielectric diameter range: .175 in - .183 in
Outer jacket diameter range: .270 in - .295 in
Recommended cable prep/stripping tools: 45-605 PrepPRO

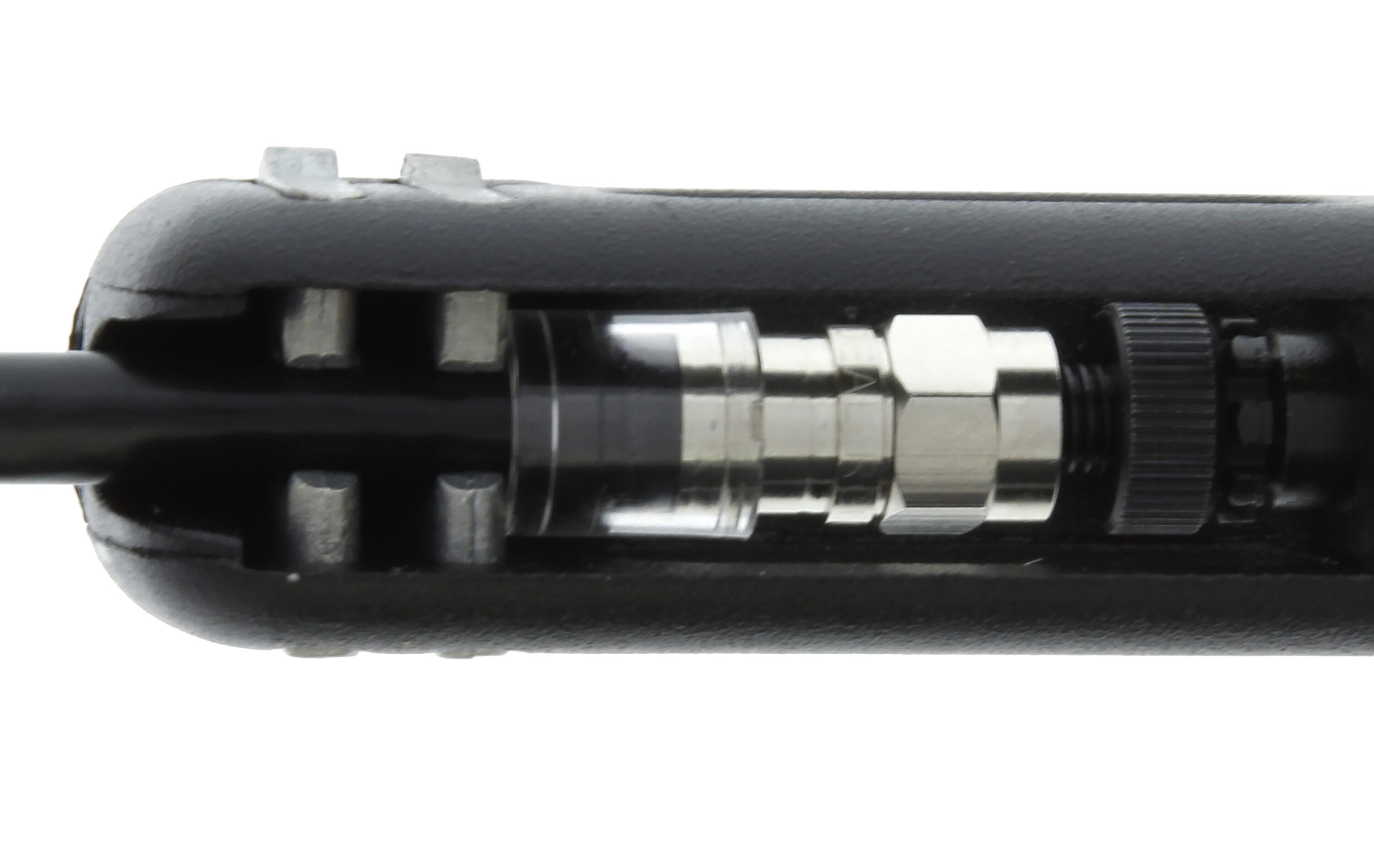

Recommended compression tools: 30-793 OmniSeal
