VEVOR Slip Clutch 1 3/8in PTO Slip Clutch Smooth Round Ends PTO Friction Clutch Carburized Steel Tractor Slip Clutch Adjustable Rotary Cutter Slip Clutch Black Brush Hog Slip Clutch for PTO Shaft

This PTO slip clutch is designed for versatile use with rotary tilling tools such as rotavators, stone buriers, brush cutters, and rotary mowers;Additionally, it is suitable for applications like hay tedders, balers, and post hole diggers.

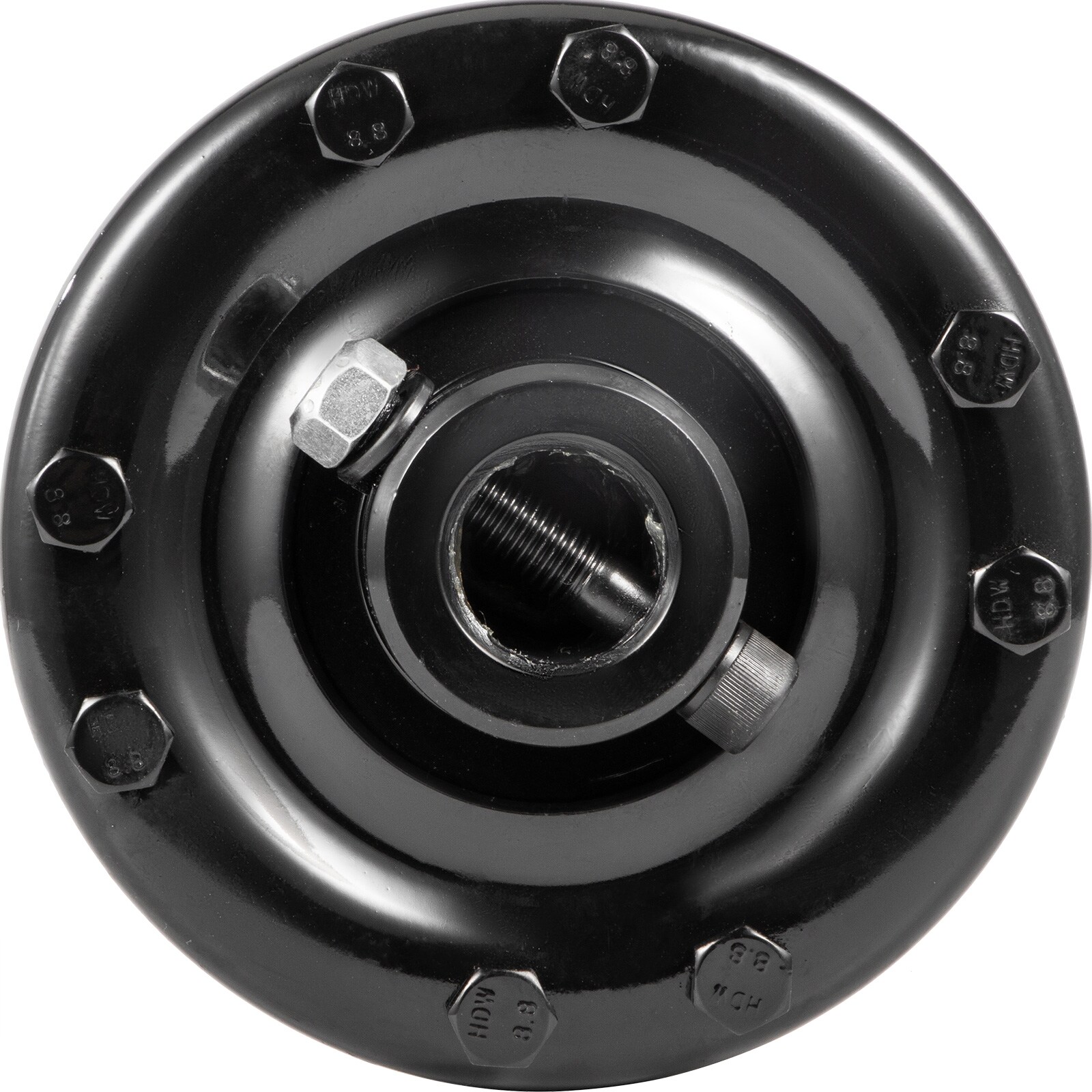

This PTO slip clutch is designed with a combination of springs, friction discs, pressure plates, and a flywheel;It features two circular ends that connect to the engine or clutch shaft, enhancing the efficiency of your equipment operations.

The friction discs come pre-installed within the friction lining and can be replaced as needed;The PTO slip clutch allows torque adjustment ranging from 20 hp to 55 hp by simply adjusting the springs.

Allow Two Speeds: Our PTO slip clutch limits the amount of torque being transferred from the tractor to the implement; This is accomplished by slipping or spinning free, which allows the two sides of the PTO shaft to spin at different speeds

Quality PTO Slip Clutch: The 20CrMnTi carburized steel which built this tractor PTO slip clutch has been reinforced to resist impact; The black-painted surface is smooth and anti-weary; So, it can withstand higher torque and speed to gain better protection for your PTO shaft;

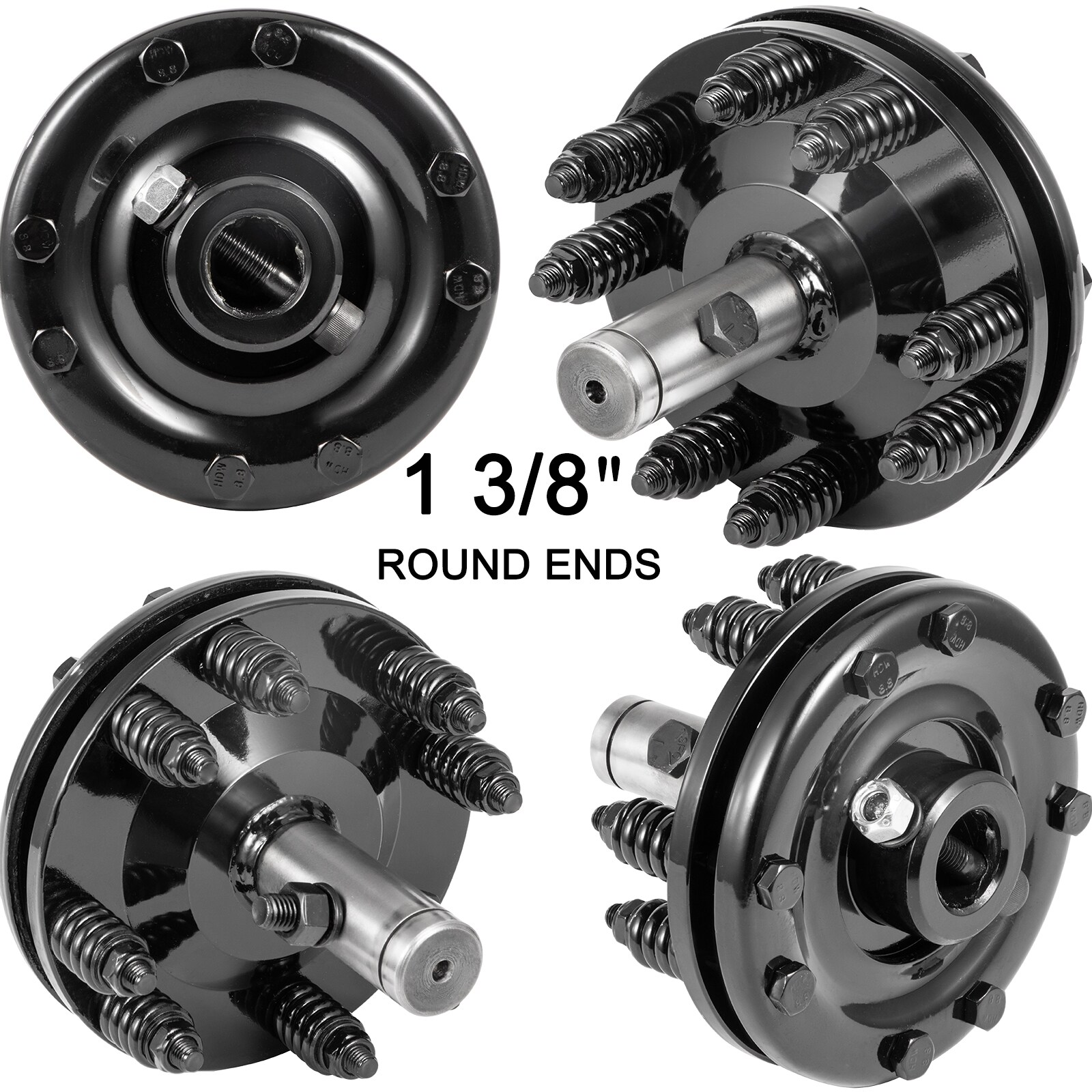

1 3/8" Round Shaft Ends: Constructed with Round ends, this PTO clutch has a standard size of 1-3/8" for both male and female ends; It perfectly matches the same diameter of implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts;

Easy Torque Adjustments: Rated torque: 900 nm, adjustment range: 20 - 55 hp; You can adjust the length of the tension springs to acquire an appropriate torque for your rotary cutter slip clutch; Just tight / loose the eight nuts by 1/4 of a turn and check its tightness for correct operation;

Replaceable Friction Discs: The PTO slip clutch adopts an essential spring and disc set-up; It is assembled with fiction discs inside to help transmit forces; It is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors;

Specification: Material: 20CrMnTi Carburized Steel; Color: Black; Surface Finishing: Painted; Female & Male End Size: 1-3/8" Round; Pinhole Size: 1/2"; Tension Springs: Adjustable; Friction Discs: Replaceable; Rated Torque: 900 nm; Adjustment Range: 20 - 55 Horse Power
