Designed for both new installations and replacements, the Brinks Commercial All-in-One Aluminum Door Closer with FlexPlate™adapter delivers strength, versatility, and ease of installation. The patented FlexPlate™ and four sliders simplifies retrofitting by adapting to nearly every existing hole pattern—no drilling additional holes. The all-metal closer body has adjustable spring tension (Size 1 to 6), supporting wood or metal doors ranging from light interior doors to heavy-duty commercial doors. Fine-tune performance with fully adjustable sweep speed, latching speed, and backcheck. Compatible mounting methods include regular arm, parallel arm, and top jamb installations.
Patented FlexPlate: Adapter plate and sliders fit together to allow for easy plug-and-play to your current closers hole pattern and the existing holes in your door, includes 1 plate and (4) sliders.
Meets ANSI Grade 1 Standards for doors with heavy traffic.
UL Listed and 3-hour Fire Rated for added protection during a fire event.
Fully Adjustable: Sweep speed and latching speed for fine tuning of closing speeds
Adjustable back-check helps prevent wind damage for exterior facing doors
Opening Range: Up to 180-degrees for maximum pass-through space

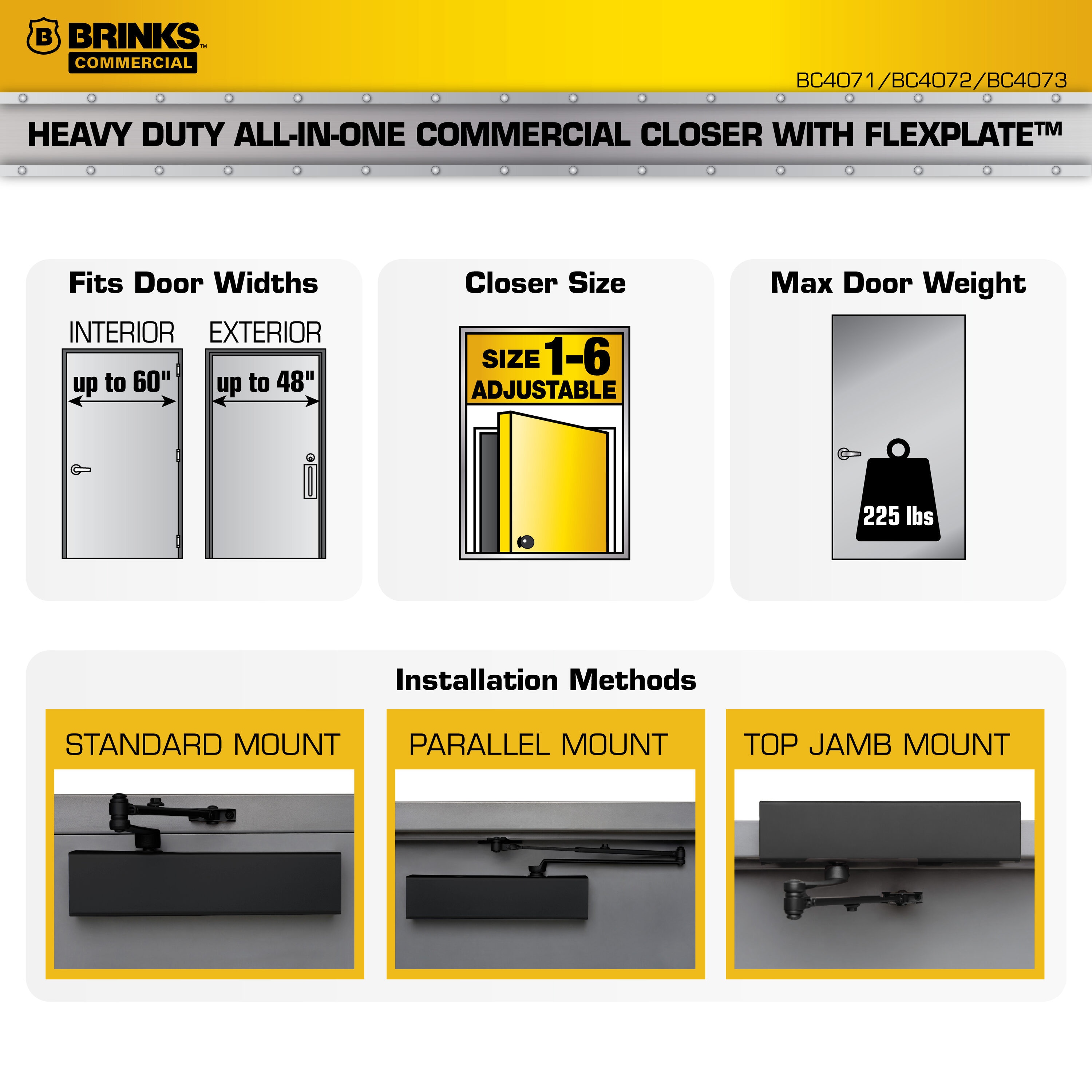

Mounting Options: Install either regular arm, parallel arm, and top jamb
Adjustable Sizing 1-6: Adjustable spring tension allows closer size range from 1-6.
Included Components: Closer body, FlexPlate adapter, four sliders, decorative cover, parallel arm plate, all mounting hardware, and installation instructions
