Precision inlay work rewards optics that hold still and light evenly. 7X-45X continuous zoom, a 10X eyepiece, and a 0.7X-4.5X objective open a 0.2-1.3 in field of view, enough to read prong seats, engraving lines, and small solder pads. Reach matters just as much, so the spring bracket swings up, down, left, right, forward, and backward across a 7.9-35.4 in telescopic range that clears tall boards and mechanical parts. Overhead, 144 LEDs rated 18000-35000 lumens dim steplessly from 0-100% over a plain USB line. A hardened chrome plated ball vise completes the set for appraisal, watch repair, and factory inspection.

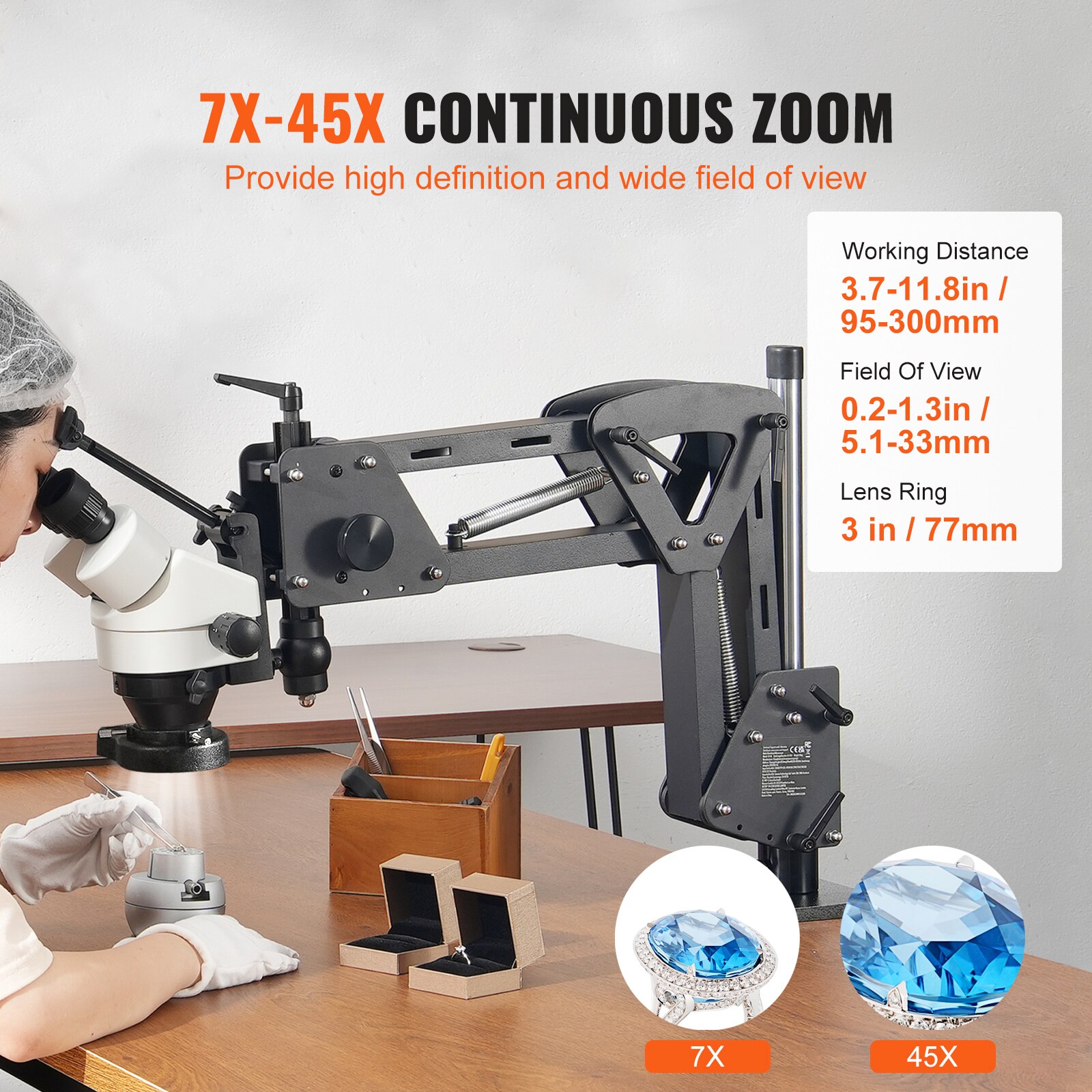

Sharp 7X-45X Stereo Zoom: Continuous 7X-45X magnification pairs a 10X eyepiece with a 0.7X-4.5X objective and a 3 in / 77 mm lens ring, opening a 0.2-1.3 in / 5.1-33 mm field of view wide enough to read prong seats and solder pads

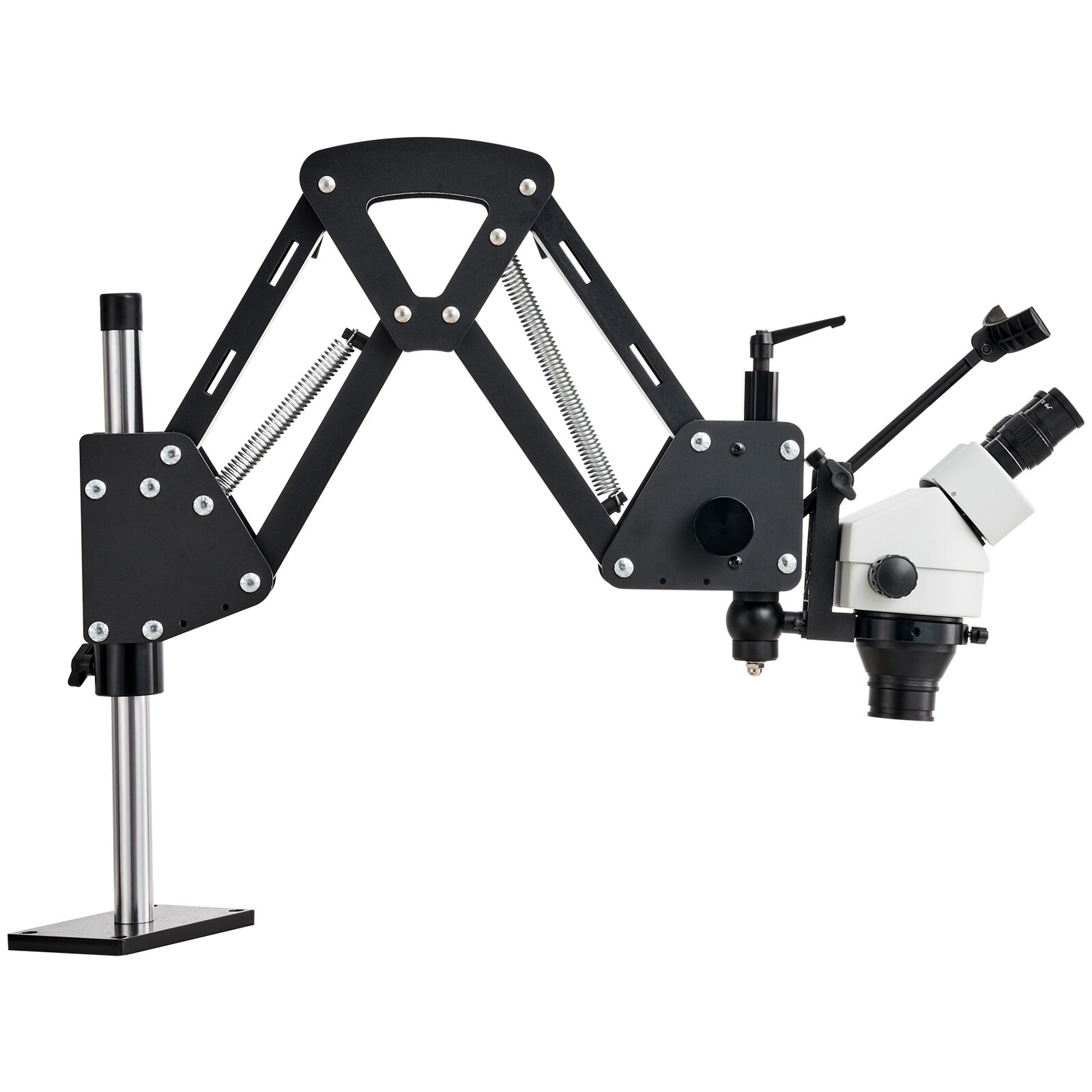

Six-Way Spring Bracket Positioning: Up, down, left, right, forward, and backward travel on a reinforced spring arm damps bench vibration, while the telescopic stand carries the head from 7.9 in / 200 mm out to 35.4 in / 900 mm of working reach
144-Diode Integrated Ring Light: An integrated ring light packs 144 LEDs rated 18000-35000 lumens at 6500-7000K with 0-100% stepless dimming and a plain USB connection, so illumination lands evenly on the piece instead of casting side shadows
Built for Detail Trades: Jewelers, watchmakers, board technicians, and factory inspectors work inside the 3.7-11.8 in / 95-300 mm observation height on jewelry inlay, engraving crafts, jewelry appraisal, watch repair, and large PCB rework

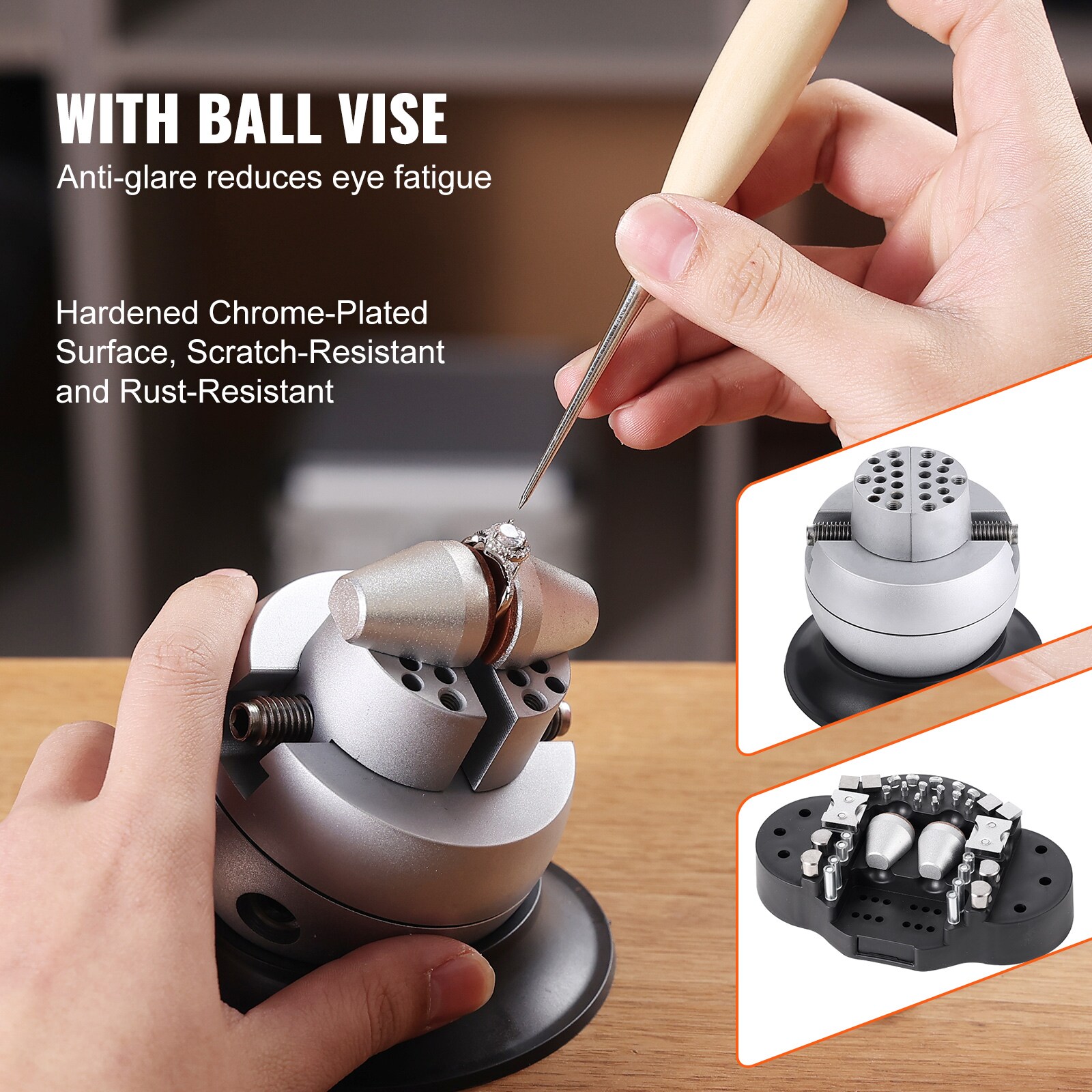

Metal Frame and Chrome Ball Vise: Steel, aluminum, and plastic components carry the 26.5 lb / 12 kg assembly, and the bundled ball vise wears a hardened chrome plating that shrugs off scratches, resists rust, and cuts eye-tiring glare
Specification: Total magnification 7X-45X adjustable; eyepiece magnification 10X; objective magnification 0.7X-4.5X adjustable; working distance 3.7-11.8 in / 95-300 mm; field of view 0.2-1.3 in / 5.1-33 mm; binocular distance 2-3 in / 50-75 mm
Specification (cont.): Stand extension 7.9-35.4 in / 200-900 mm; product dimensions 18.3 x 6.9 x 18.7 in / 465 x 175 x 475 mm; product weight 26.5 lb / 12 kg; shipping weight 30.8 lb / 13.95 kg; carton 24.2 x 16.9 x 9.4 in / 61.5 x 43 x 24 cm
Three-Move Quick Release: Press the button, lift the handle, then twist to tighten, and the stand joints loosen or lock in three motions so the optical head swings to a fresh angle between stones without a full re-clamp
Adjust While Observing: Diopter, magnification, and lens spacing each tune from simple mechanisms on the stereo body, letting observation and fine adjustment happen together rather than in separate stop-and-restart passes at the bench
