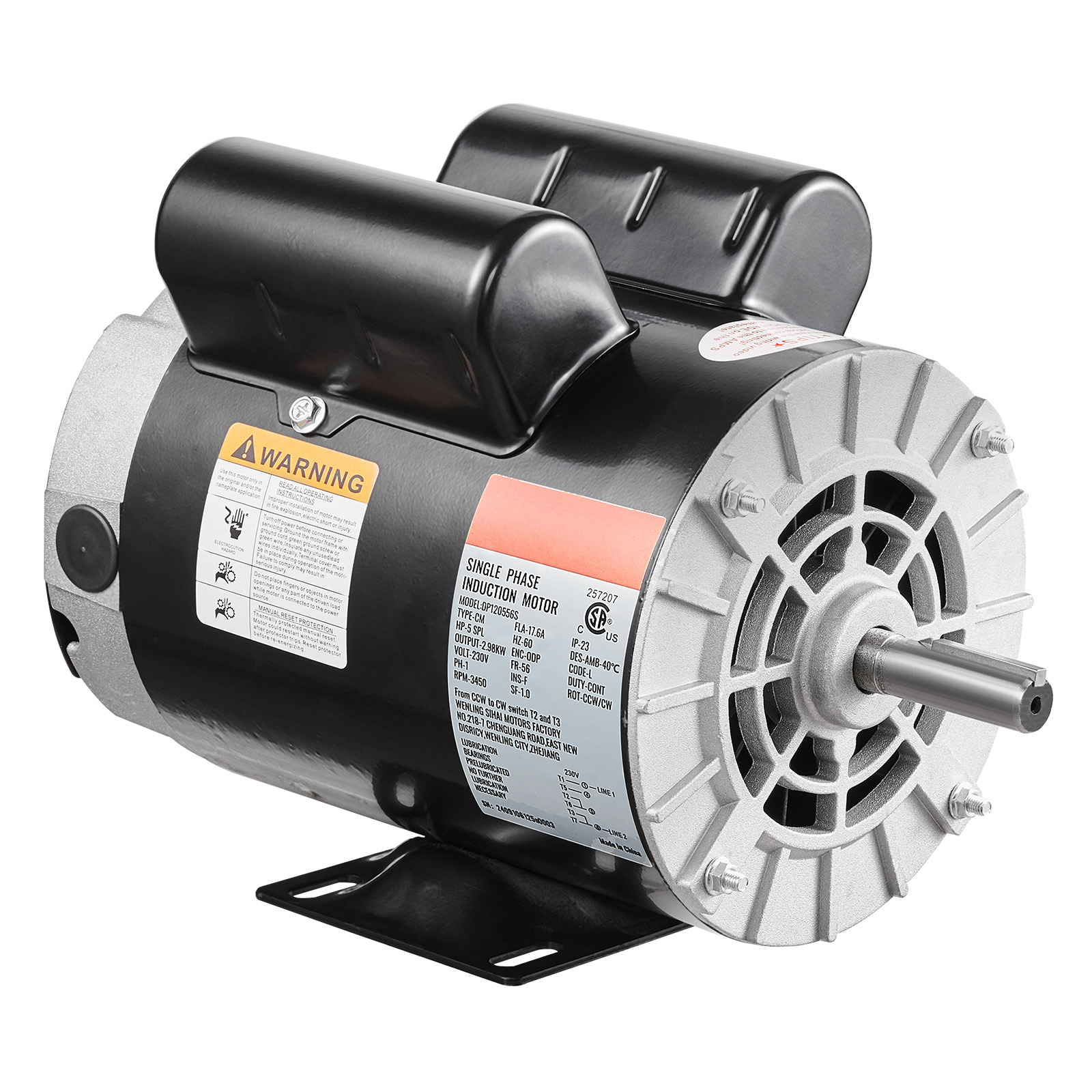

GIVIMO 5-HP SPL Air Compressor Electric Motor 230V 17.6-Amp 56 Frame 3450-RPM Single Phase with 5/8-in Keyed Shaft 1.88-in Shaft Length 0.188-in Keyway ODP Steel Housing and Reversible CW CCW Rotation for Belt-Drive Compressor Pumps in Garages and Shops

5-HP SPL Belt-Drive Power: A 5-HP SPL single-phase motor draws 17.6 A at 230V and spins 3450 RPM to drive residential and light commercial belt-drive air compressor pumps with steady torque

56 Frame OEM Match: A 56 frame size with a 5/8-in keyed shaft 1.88-in shaft length and 0.188-in keyway matches stock OEM motor mounts on most direct-drive compressor units

Reversible CW CCW Rotation: Preset to CCW rotation at the factory the motor reverses to CW by swapping the wiring leads which simplifies install when belt direction must change

ODP Steel Housing: An open drip-proof steel housing sheds heat quickly and suits clean dry shop conditions so it supports long compressor cycles in garages and repair bays

45-Amp Circuit Ready: Run the motor on a dedicated 230V branch with a 45-amp breaker and the 0.188-in keyway locks the pulley to the shaft for slip-free torque transfer under load

Specification: Power: 5 HP SPL; Voltage: 230 V; Full Load Amps: 17.6 A; Speed: 3450 RPM; Phase: Single; Frequency: 60 Hz; Service Factor: 1.0; Frame: 56; Shaft: 5/8 in Keyed; Shaft Length: 1.88 in; Keyway: 0.188 in; Enclosure: ODP; Rotation: Reversible CW/CCW; Net Weight: 34.5 lb / 15.65 kg
