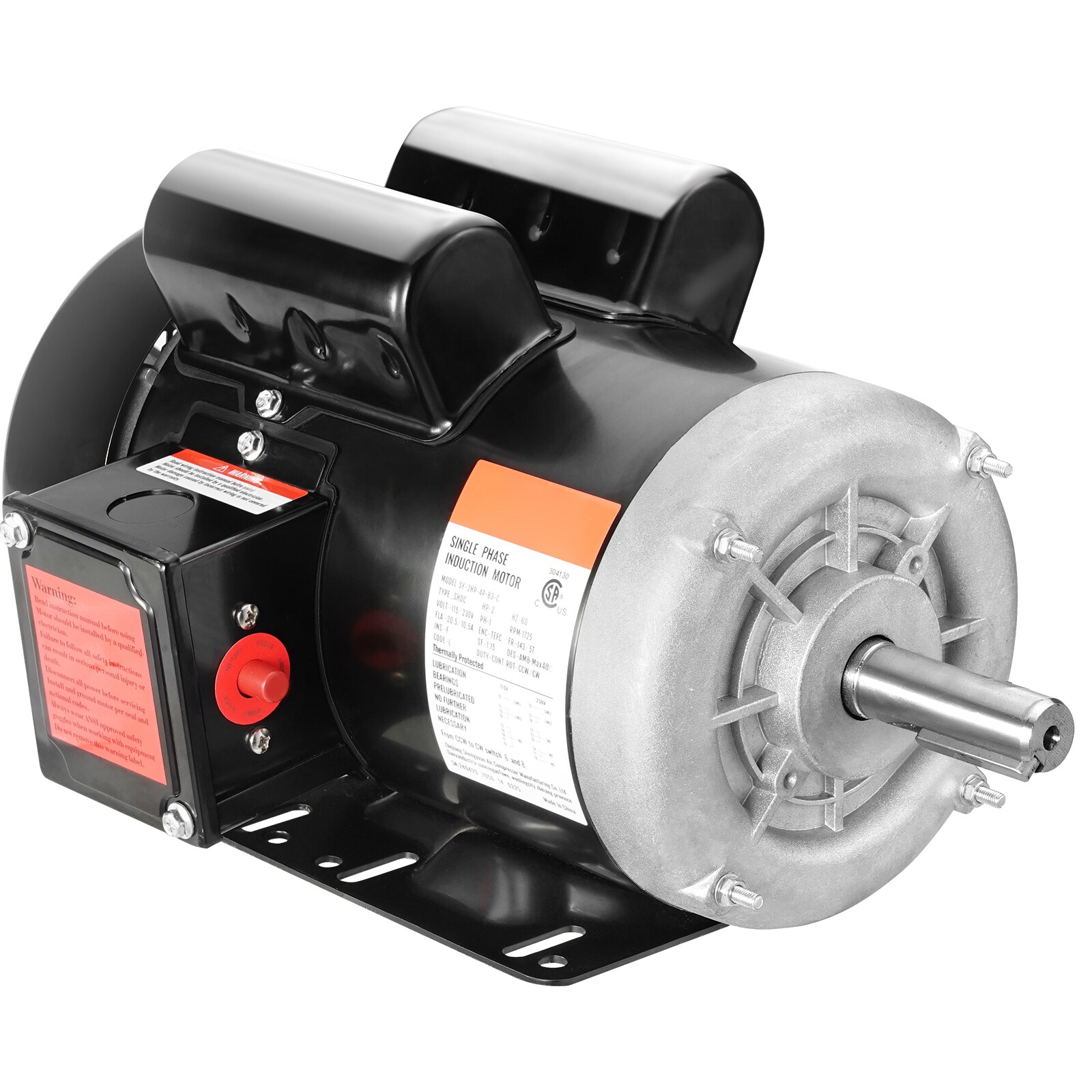

GIVIMO 2-HP Single Phase Electric Motor 1725 RPM 143/5T Frame Air Compressor Motor with 7/8-in Keyed Reversible Shaft

2-HP at 1725 RPM: The motor delivers 2-HP at 1725 RPM with a 1.15 service factor, which leaves headroom for short overload spikes.

Dual Voltage Wiring: One motor runs on 115 or 230 volt single phase service and draws 20.5 or 10.5 amps depending on the connection.

143/5T Frame: A standard 143/5T frame matches common mounting patterns, so it drops onto existing compressor and pump bases.

7/8-in Keyed Shaft: The shaft measures 7/8-in across and 2.25-in long with a 0.188-in keyway that fits standard pulleys and couplers.

Reversible Rotation: Clockwise and counterclockwise wiring options simplify hookup when the driven machine turns the opposite way.

Rolled Steel Shell: A heavy rolled steel housing protects the windings, and overload protection resets by hand after a trip.

44.1-lb Frame Weight: The 44.1-lb body on a 14.2-in by 9.1-in footprint suits a fixed base rather than a portable cart.
