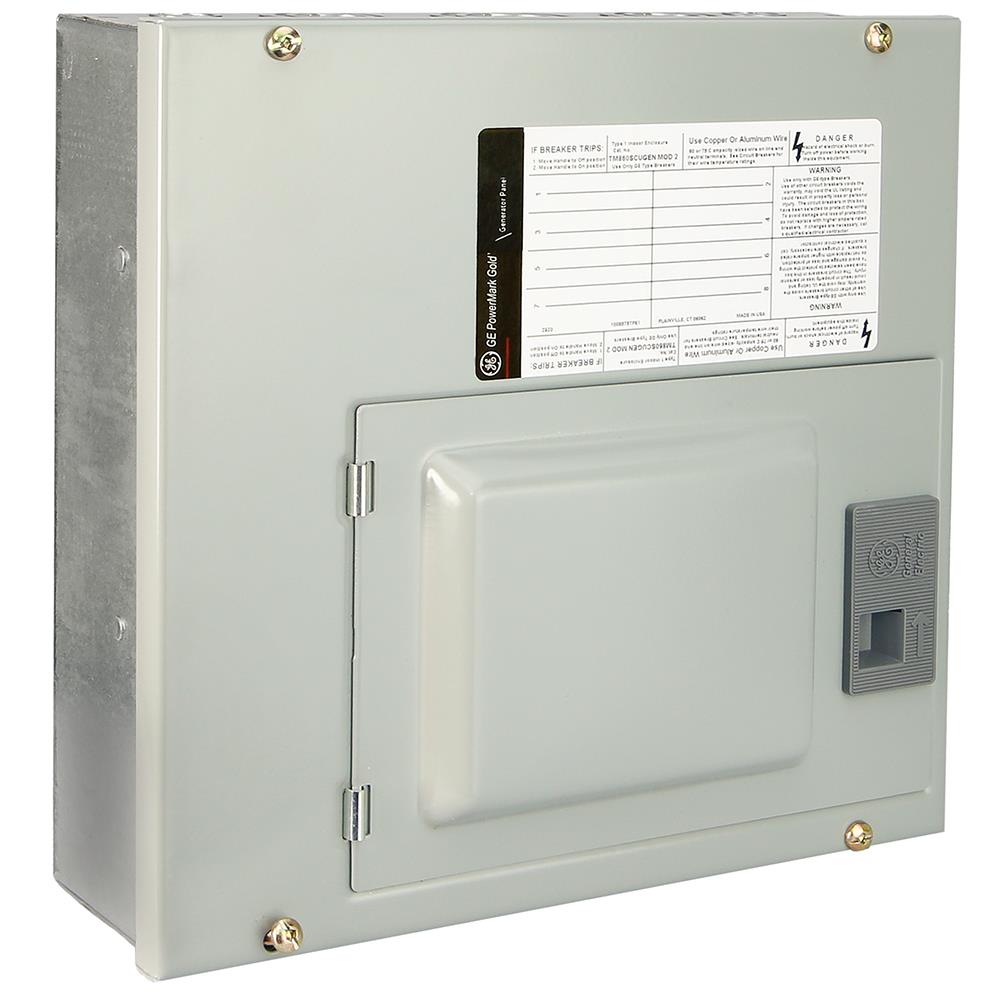

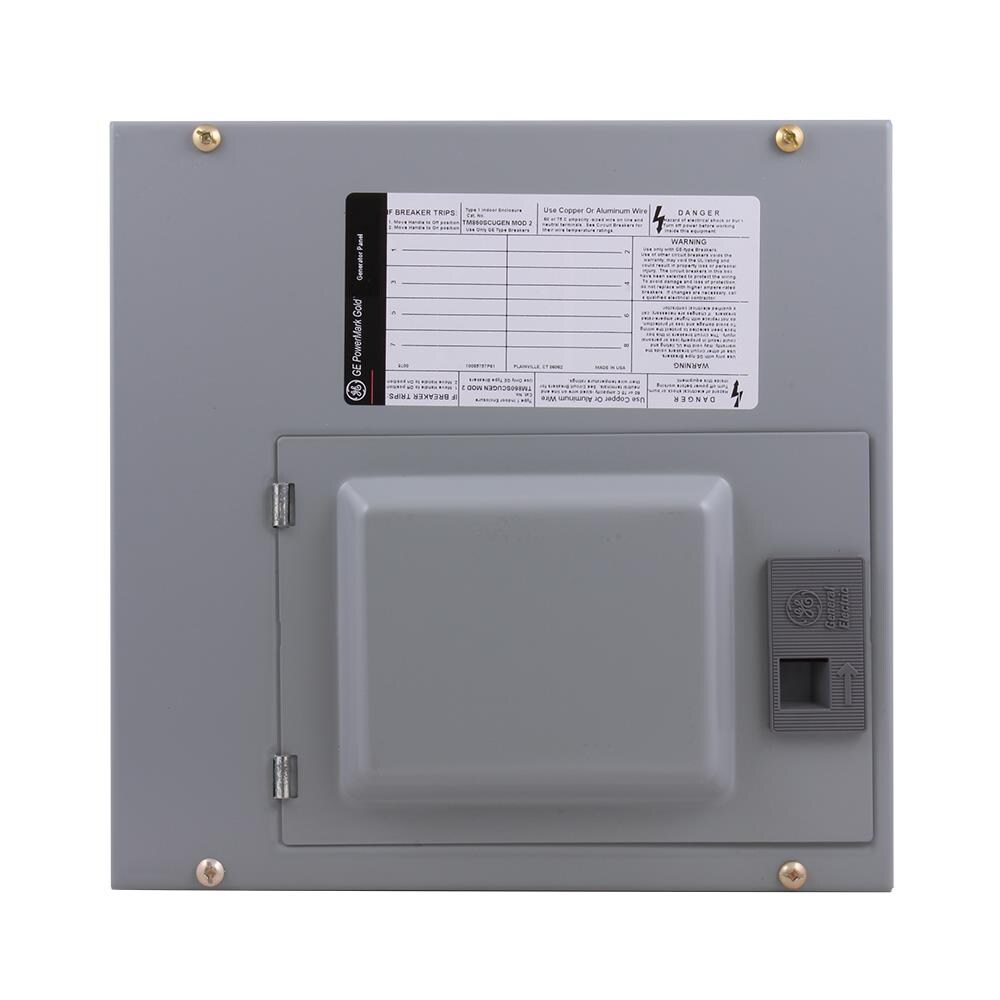

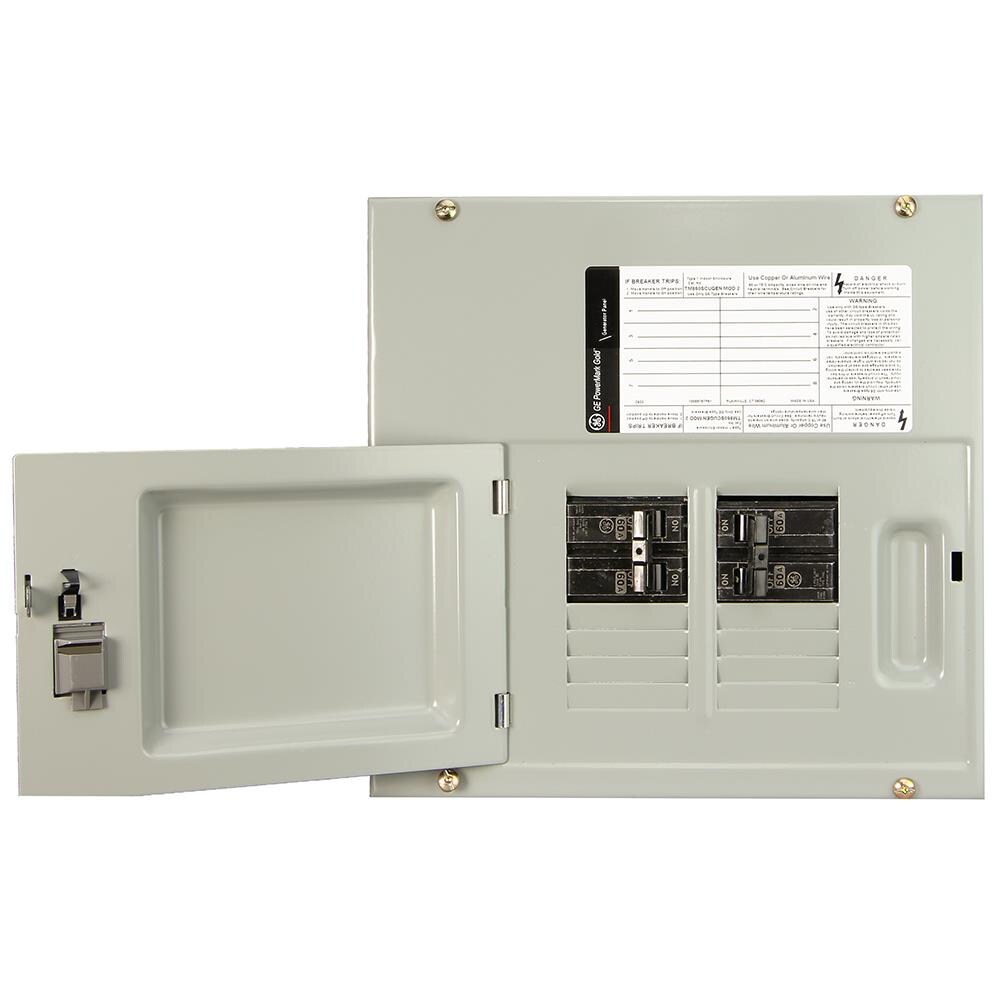

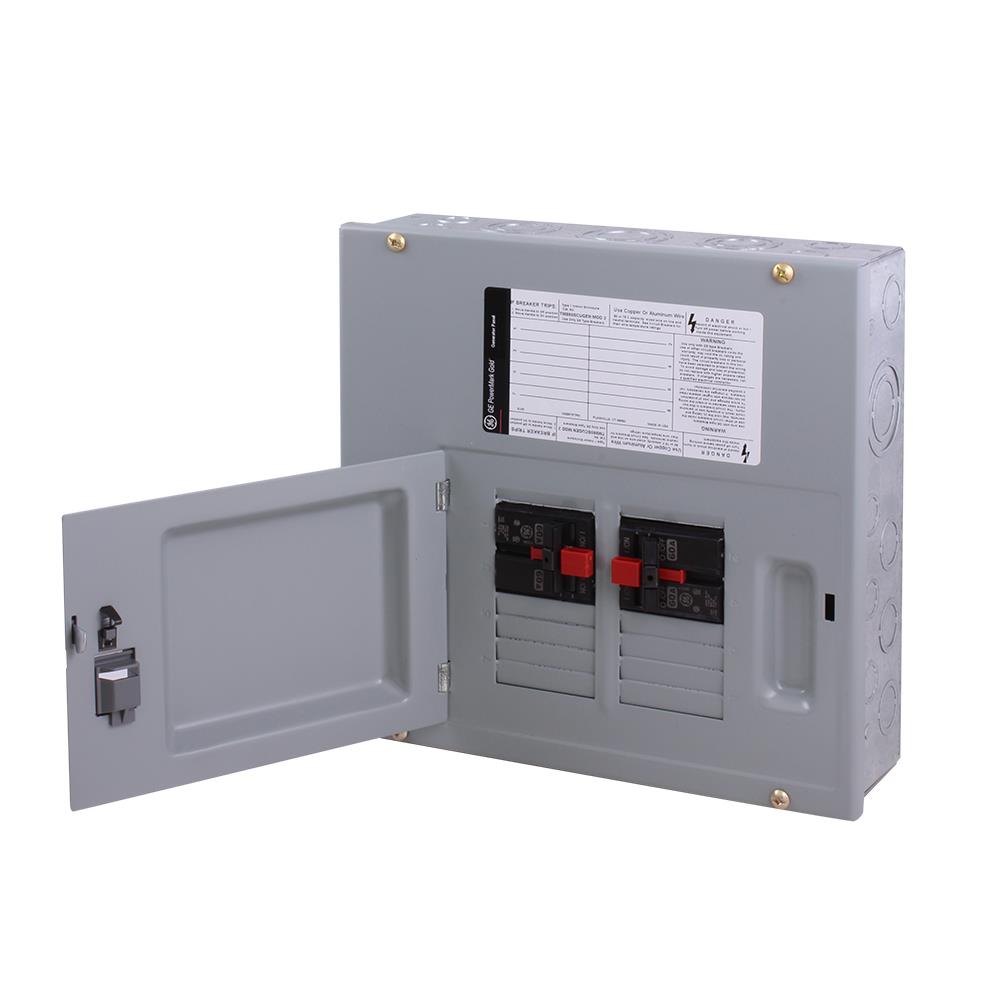

PowerMark Gold generator single phase panel feature 2 interlocked main breakers that ensures only one source is active at a time. They allow you to maintain power to such critical circuits as those for a furnace, pump, refrigerator, lights, etc. This panel is suitable for use in accordance with Article 702 of the National Electric Code, ANSI/NFPA 70.
Indoor NEMA 1 enclosure
Use to maintain power to critical household circuits
2 interlocked main breakers factory installed - side mounted main breaker allows top or bottom feed and equipment Ground Bar included
Compact and efficient box design that maintains optimum wire bending and interior removes and re-installs easily
Galvanized box increases durability and reliability and sturdy copper bus is tin-plated for corrosion resistance
All neutral holes rated for 14-4 wire, main wire size is 6-1, minimum 100% neutral terminations
Extruded neutrals are easier to wire, reducing installation time and cost
Equipment ground bar included
Accepts GE Q-line branch circuit breakers, including GE's exclusive 1/2 in THQPs
