Fieldpiece Dual Port Manometer

Marketplace items sold by a third party are not eligible for Lowe’s offers.

Accuracy: Stated accuracy at 0 to 50°C (32 to 122°F): ±1.5% FS
Battery: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life: 200 hours with low battery indicator on display

Stepper number input field with increment and decrement buttons

Best Price. Guaranteed

Find a lower price on an exact item? We'll match it. Some exclusions apply.

FREE Returns

Return it in store or ship it back for free. Eligibility rules apply.

Pay Your Way

Credit card, PayPal or Buy Now, Pay Later options available at checkout. Your choice.

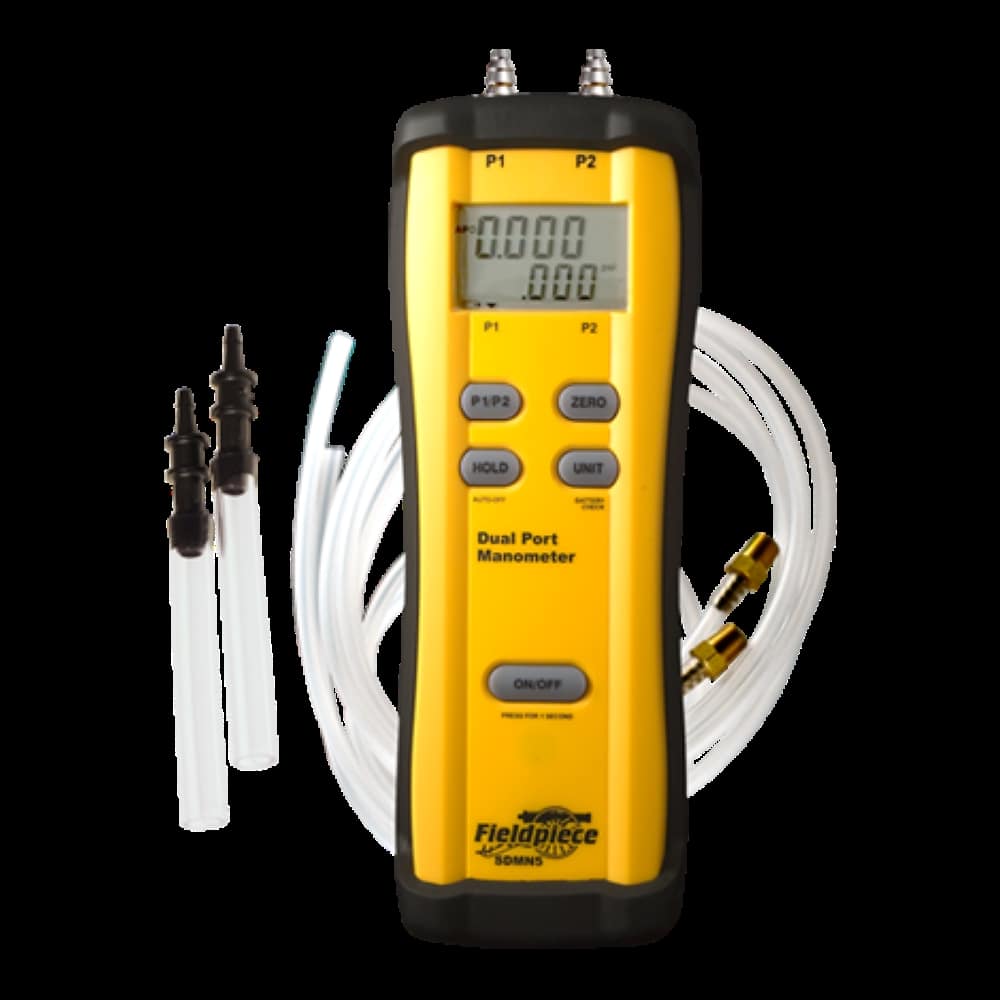

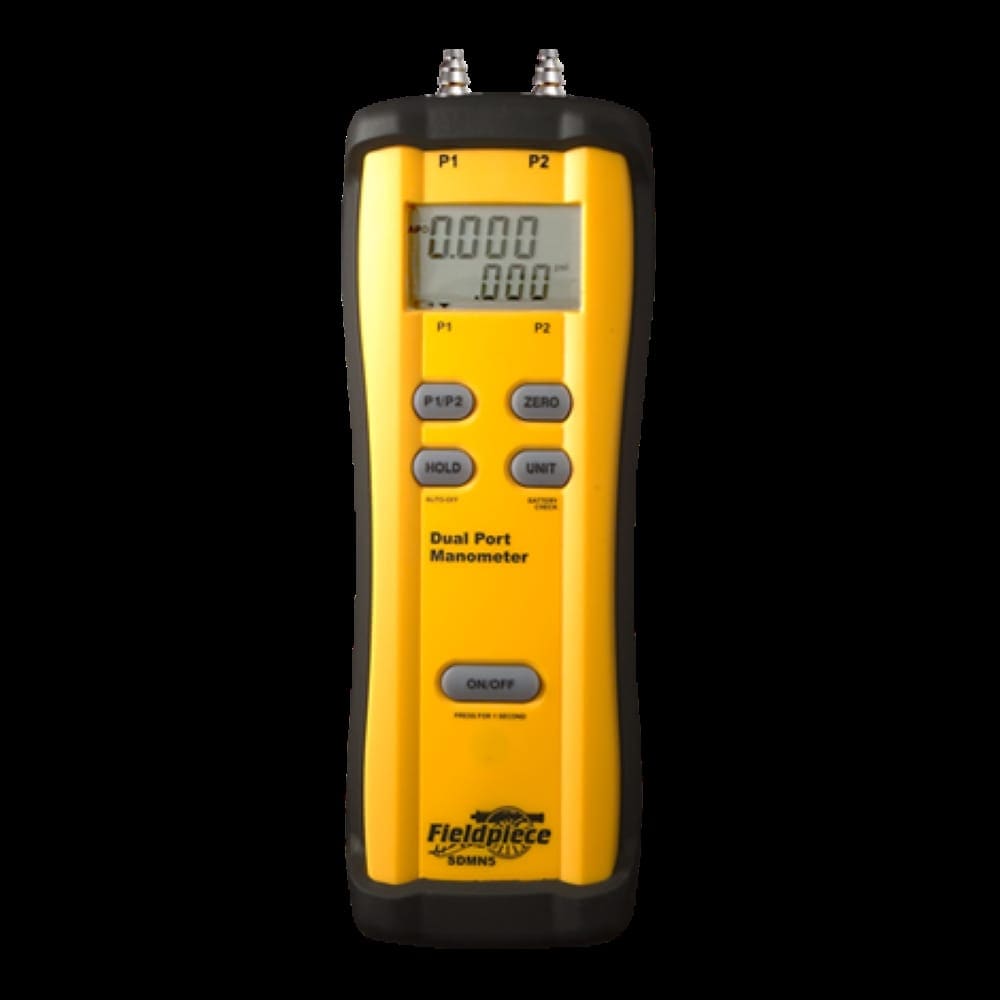

The SDMN5 is a portable, rugged dual-port manometer designed especially for HVACR field service technicians. Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life. The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. Includes 3/16” to 5/16” adapter for measuring gas inlet and outlet pressures.

Accuracy: Stated accuracy at 0 to 50°C (32 to 122°F): ±1.5% FS
Battery: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life: 200 hours with low battery indicator on display
Operating environment: 32ºF (0°C) to 122ºF (50°C)
Compatible Media: Dry, non-corrosive gases
Auto-Off power: 15 minutes
Weight: approximately 195g including battery
Dimensions: 180mm(~7 1/16”)(H) x 60mm(~2 3/8”)(W) x 30mm(~1 3/16”)(D)
Units of Measure: inWC, mmWC, mbar, PSI
