At a Glance
Rolling
Warranty Included
Assembly Required: PartialExtreme Tools DX Series 72-in W x 42.75-in H 17 -Drawer Steel Rolling Tool Cabinet ( Green )
Item #1614384 |
Model #DX722117RCGNBK
We'll notify you once this item is back in stock.
Patented self-latching Quick Release drawer pulls constructed with all metal parts - no plastic to bend or break
Drawers use heavy duty ball bearing slides with load capacities of 100 pounds for single slides and 200 pounds for double slides
Includes PVC drawer liners and laminated MDF work surface (25 mm thick) to protects your tool box
Four 6in x 2in exclusive Mag Wheel casters (2 locking swivel and 2 rigid) load rated 900 lbs each
High gloss powder coat finish on cabinet and drawer pulls resists scratches, oxidation and chemical stains
14-gauge steel frame construction supports a fully loaded tool box
Secure tubular, coded lock and 2 keys
Full width self-latching drawer pulls are secured across the front of the drawer and don't pull away over time
Compatible DX Series Models: DX722101HCGNBK Hutch, DX192100SLGNBK Side Locker
General | |||
|---|---|---|---|
Color/Finish Family | Green | Number of Drawers | 17 |
Manufacturer Color/Finish | Green | Lock Type | Built-in lock |
Series Name | DX Series | Work Surface Material | Wood |
Type | Bottom tool cabinet | Caster Type | Swivel |
Wheel Material | Polypropylene | Drawer Slide Type | Ball-bearing |
Primary Material | Steel | Number of Handles | 1 |
Liner Material | PVC | ||
Dimensions | |||
|---|---|---|---|
Cart Wheel Size (Inches) | 6 | Maximum Capacity (lbs.) | 2700 |
Depth (Inches) | 21 | Total Weight (lbs.) | 452 |
Drawer Weight Capacity (lbs.) | 100 | Width (Inches) | 72 |
Height (Inches) | 42.75 | Total Cubic Inches | 24137.3 |
Item Weight Rating | Industrial grade - more than 1000 lb. capacity | ||
Features | |||
|---|---|---|---|
Assembly Required | Partial | Re-Key Technology | Traditional |
Durability | Heavy duty | Removable Casters | Yes |
Full-Extension Drawers | No | Rolling | Yes |
Liner(s) Included | Yes | Rust Resistant | Yes |
Locking Casters/Wheels | Yes | Soft Close | No |
Number of Casters/Wheels | 4 | Steel Gauge | 14 |
Number of Deep Drawers | 6 | Weather Resistant | No |
Number of Trays | 0 | Wheels Included | Yes |
Powder-coated | Yes | Work Surface Included | Yes |
Compatibility | |||
|---|---|---|---|
Brand/Model Compatibility | Extreme Tools DX Series DX722101HCGNBK Hutch, DX192100SLGNBK Side locker | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | |||
Warranty | |||
|---|---|---|---|
Warranty | 5-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 24112400 | ||
Check out the Best Selling Bottom Tool Cabinets on Lowes.com
Ratings may include incentivized customer reviews.

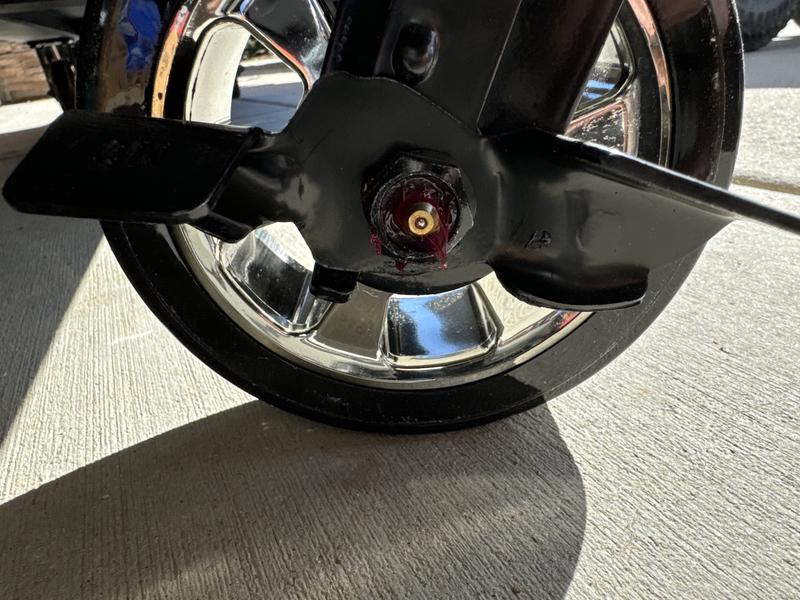

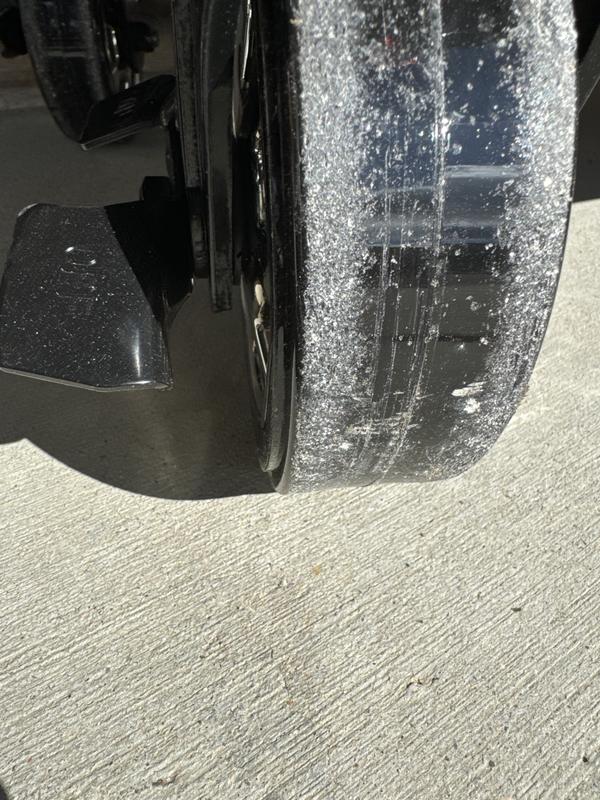

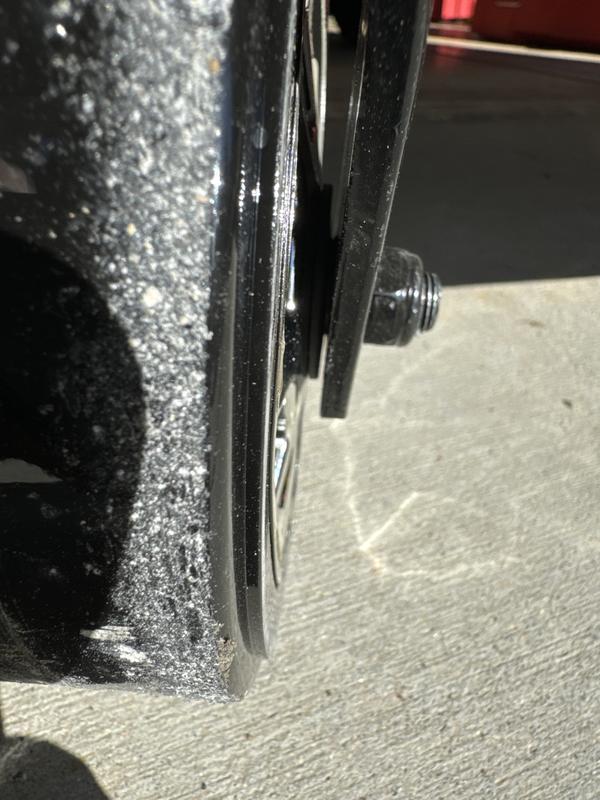

Casters will not lock
Box feels solid all drawers function great even when fully loaded, however the casters are not the best. Right out of the box I cannot lock either caster down nor can I insert grease, my assumption is the grease fittings are jammed or clogged but as of today third day of ownership I have had no luck with any of the casters.
From DX Series 72-in W x 42.75-in H 17 -Drawer Steel Rolling Tool Cabinet ( Black ) Verified Purchaser
Extremely well built toolbox
Very well made toolbox. It was shipped directly from the factory warehouse with liftgate services and free shipping. Highly recommended.
From DX Series 72-in W x 42.75-in H 17 -Drawer Steel Rolling Tool Cabinet ( Orange )
5 Questions
5 Questions
Do these boxes have electricity outlets
Anonymous on February 25, 20210
Answers
Where are these boxes made?
Anonymous on September 7, 20200
Answers
Will they be viewable in the store
Anonymous on June 8, 20200
Answers
Are they in stores to look at ?
Anonymous on June 4, 20200
Answers
Is this tool box stocked in any stores or special order only
Anonymous on February 27, 20200
Answers










Sorry for the issue you are having with the casters. These can be replaced under warranty. Please email us at [email protected] with the s...
