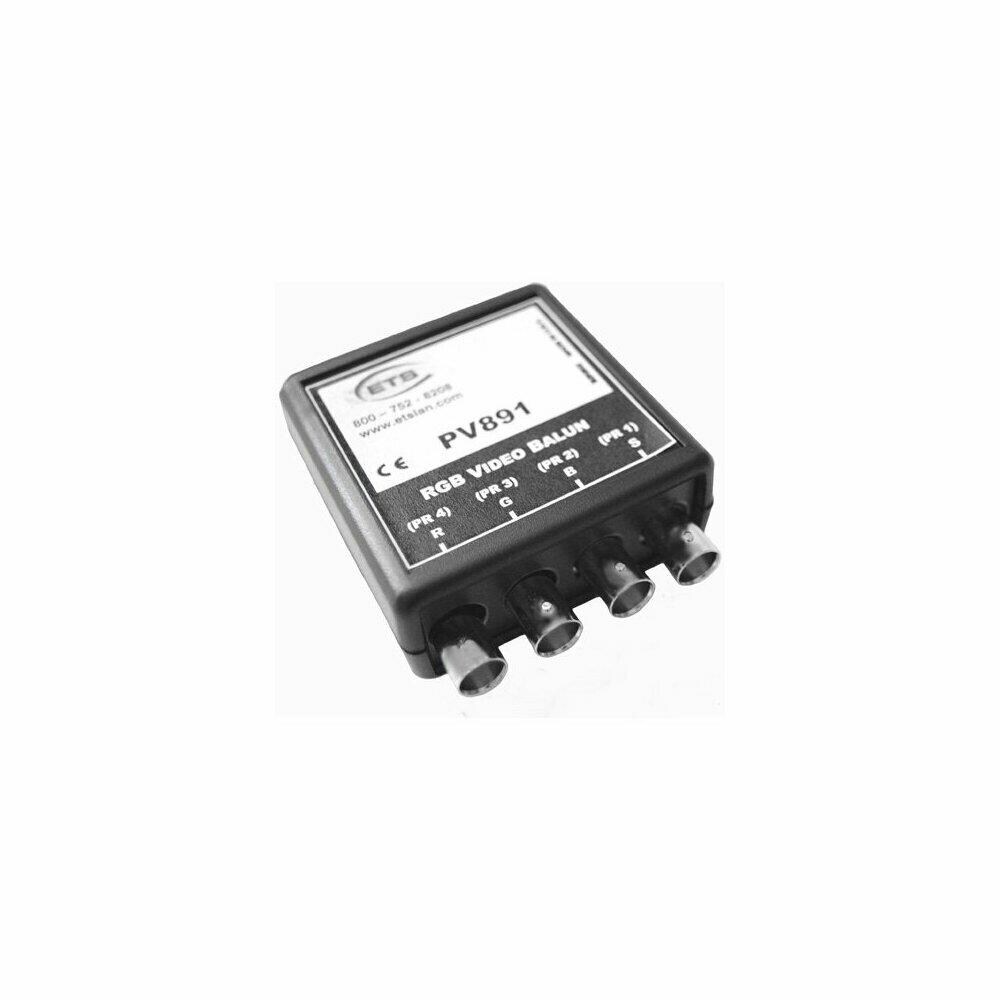

Energy Transformation Systems ETS-PV891 RGB Video Balun 4 FBNC to RJ45 Balun

The ETS PV890 Series of RGB Video Baluns provides you with the ability to send RGB video over standard telecom wiring (UTP), of Category 3 or better quality. The PV890 supports RGB with SOG (sync on green), using 3 pairs of UTP. The PV891 allows RGB with separate sync to be run using 4 pairs. Both baluns support monitors with resolutions up to 1024 x 768 pixels, at refresh rates of up to 75 Hz. The RGB Baluns allow the user or installer to take advantage of pre-installed telecom wiring PV890 baluns optionally coded coax jumper cables to connect to your source and receiving equipment, order part number ETS-RGBJ3 for each set. FeaturesSOG and separate sync models obtainable - call to inquireSend RGB over UTP at distances of up to 600 meters (150 meters nominal using CAT3 cable)Supports up to 1024 x 768 resolution at 75 Hz refreshSuperior signal balancing, lower crosstalk, less ingress and ghostingMay utilize existing telecom wiringSturdy compact plastic caseApplications:Remote Display ApplicationsVideo Projection SystemsConference RoomsSchoolsSpecificationsBandwidth: Flat to 60 MHzConnectors: 3 or 4 BNC female to RJ45Distance: 100 meters (TIA 568) minimumEmissions: Meets FCC Class ACommon Mode: 50 dBDimension : 66mm x 66mm x 28mmWeight: 0.5 lbs
