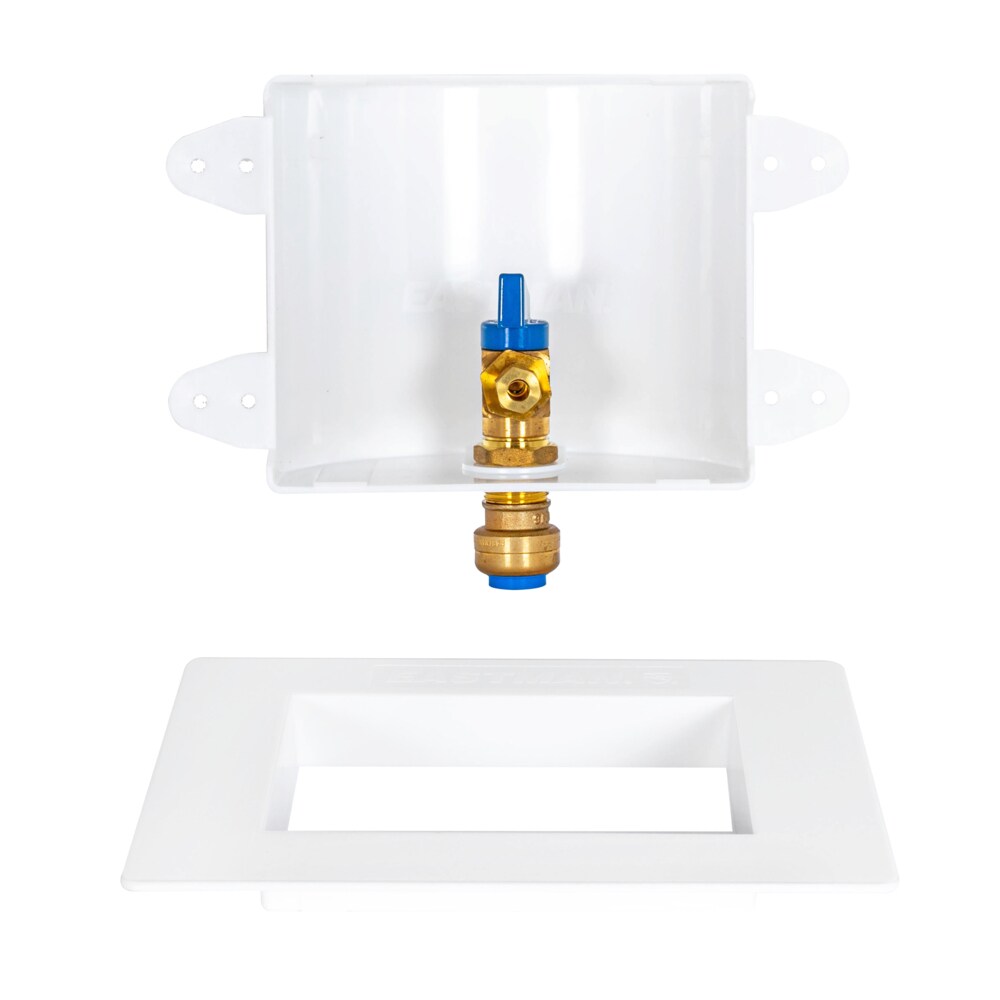

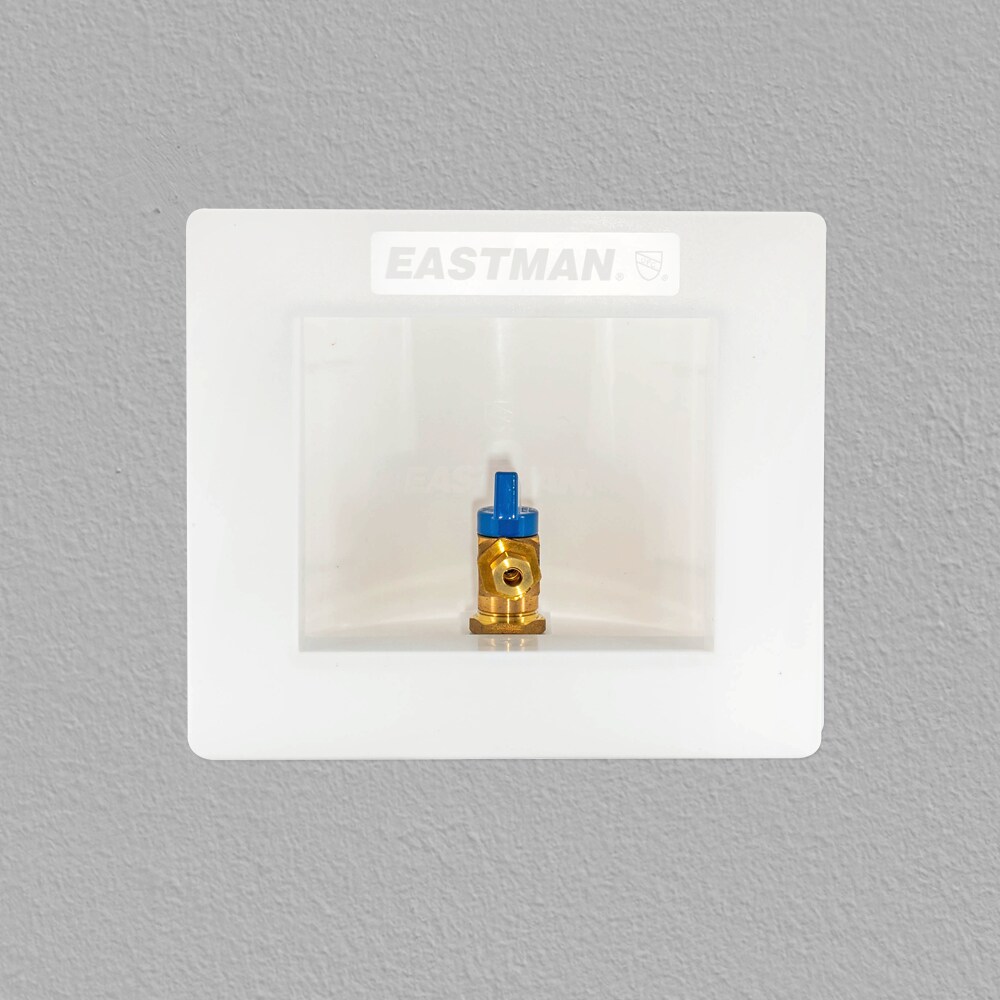

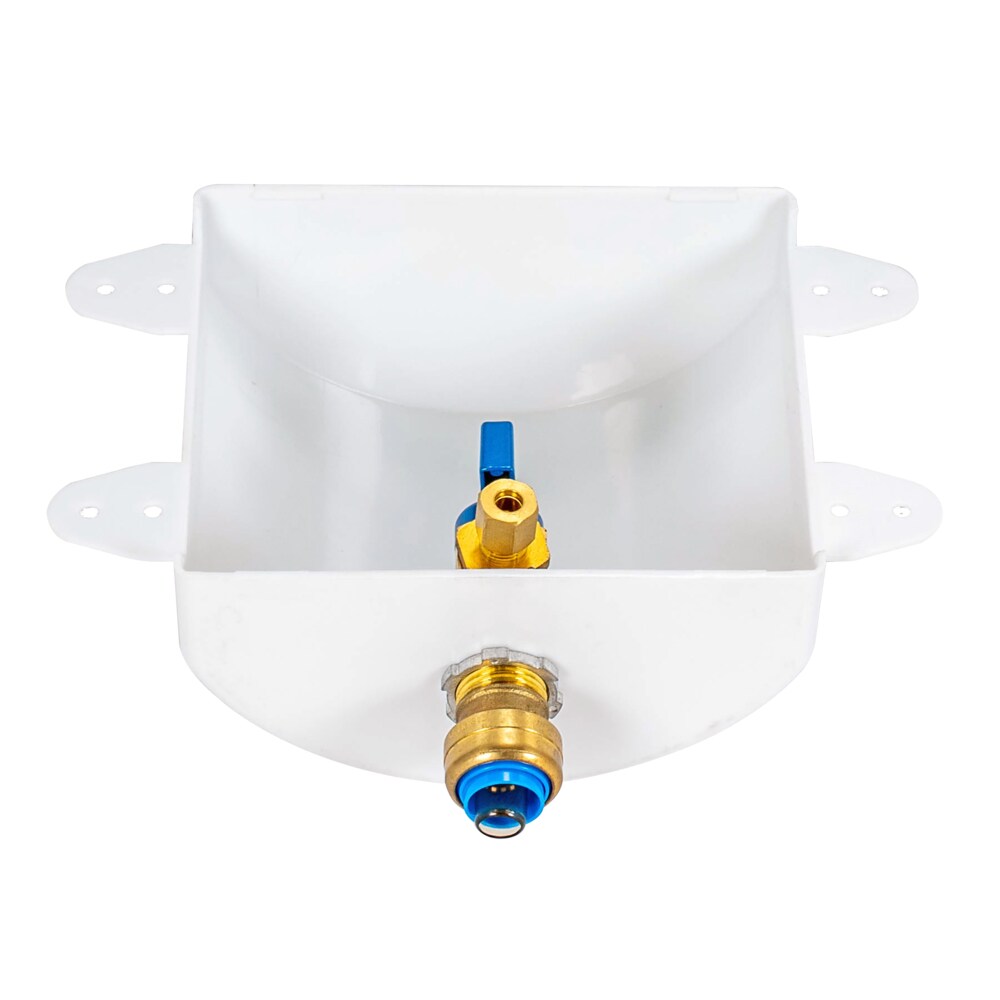

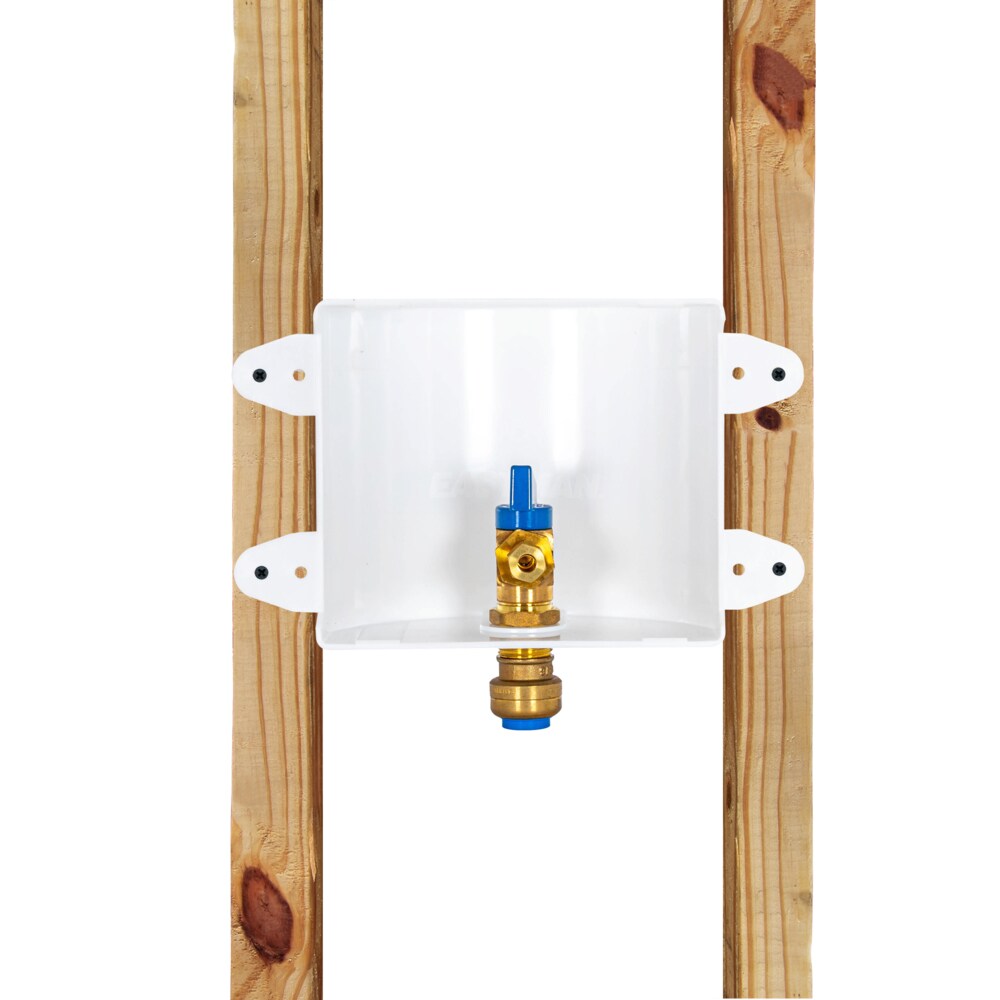

The Eastman ice maker outlet box provides a safe water supply installation for refrigerators, water dispensers, and ice makers. It is built with a one-piece box and flange design. It comes with a pre-installed support bracket, a faceplate cover and a 1/4-turn ball valve for shut-off during maintenance. This ice maker outlet box has a 1/2-inch Push-fit inlet connection and a 1/4-inch outer diameter compression outlet. It is designed for recessed residential applications. Intended for service at temperatures between 34 degree F (1 degree C) and 180 degree F (82 degree C), with an allowable working pressure of 125 psi. Complies with lead-free law. UPC approved.
Provides a safe water supply installation for refrigerators, water dispensers, and icemakers
Includes everything you need for a quick install
Equipped with one 1/4-turn ball valve

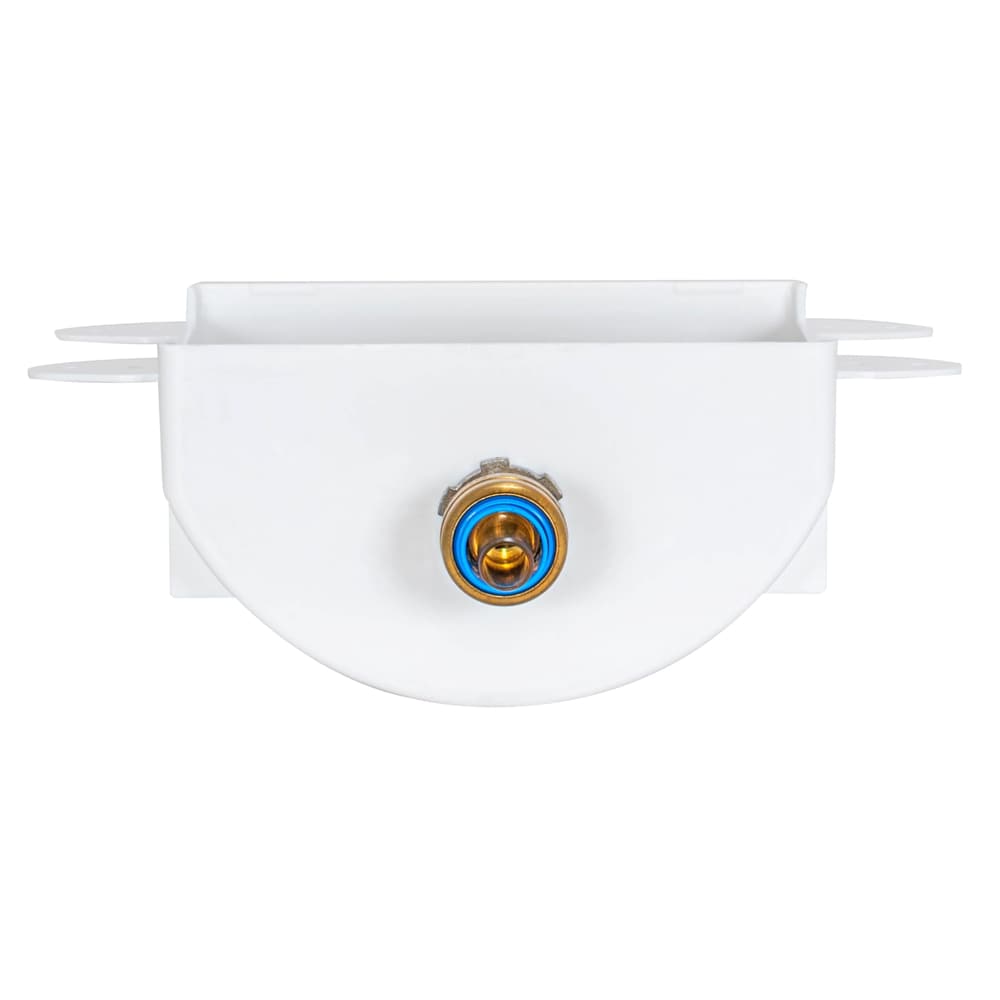

1/2 Inch Push-Fit inlet x 1/4 Inch OD compression outlet
Designed for residential applications
Operating temperature between 34 degree F (1 degree C) and 180 degree F (82 degree C)
Rough opening: 5-3/4 inch x 3-1/2 inch x 4-7/8 inch
Faceplate dimensions: 8-1/4 inch x 7-5/16 inch
