Doug Fleenor Design DFD-ES2 Entry Station 2 DMX Snapshot Recorder for 2 Preset Scenes

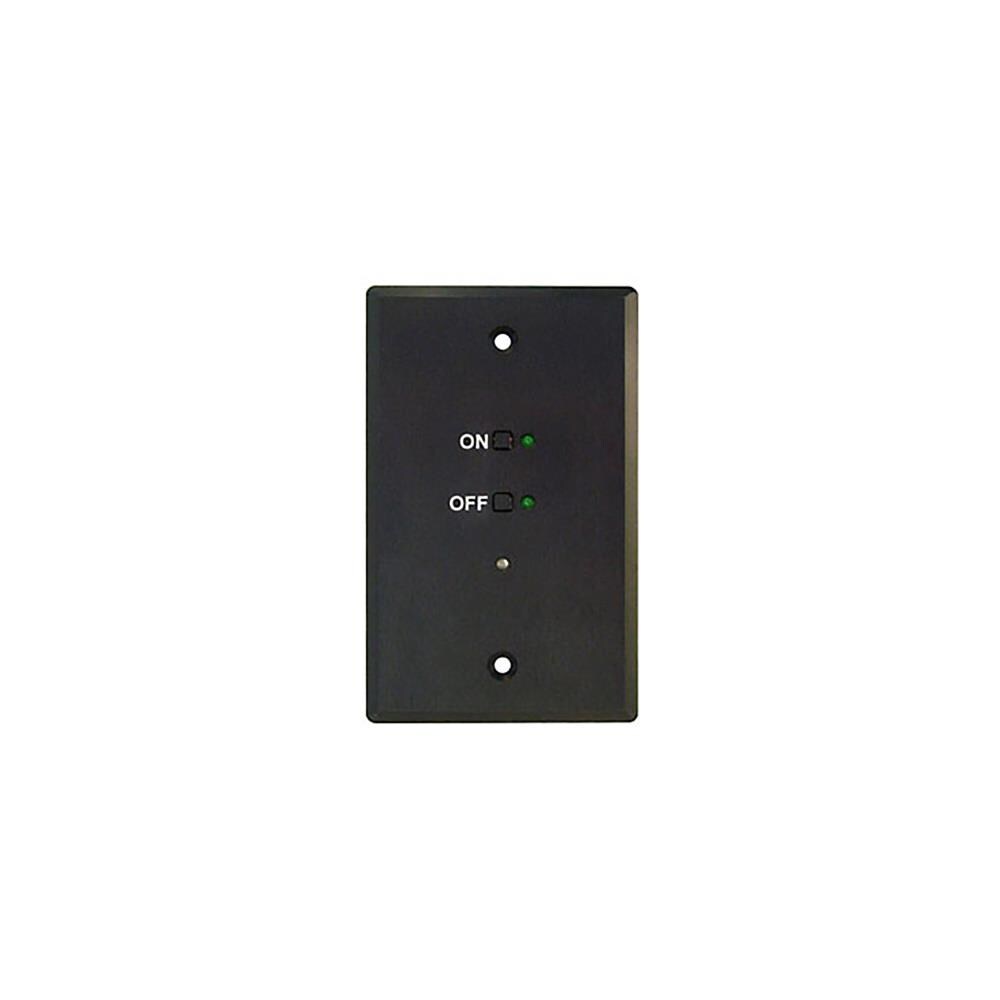

The Doug Fleenor Design ES2 is a stand-alone DMX snapshot recorder which can store two preset scenes or -"looks-". It can be used as a stand-alone main station or configured as a remote station in conjunction with another ES2 configured as a main station. It can be used as a remote station with Doug Fleenor Design's Preset 10-A, Preset 10-A2, or Rerun stations.In remote mode, the ES2 has two buttons which can be assigned to remotely trigger any of the presets/shows on a master station. Features. There is also a recessed button which is used to record presets. Set fade times when the es2 is configured as a main station Specifications. Connector: Phoenix Contact MSTB series 5 position two part terminal block. Model: MSTB 2,-5/5-ST-5,08 Order Number :. Connector pin out: 1 ( C) DMX512 common- 2 ( -) DMX512 data - 3 ( +) DMX512 data +- 4 ( C) Supply common ( internally tied to pin1)- 5 ( V) Supply voltage -"hot-". Input/Output circuit: ESD protected EIA-485 transceiver ( LT1785). Indicators: Two green preset indicators- One bi-color indicator ( Red = Lockout, Yellow = Time, Green = Inactive). User controls: Two push buttons
