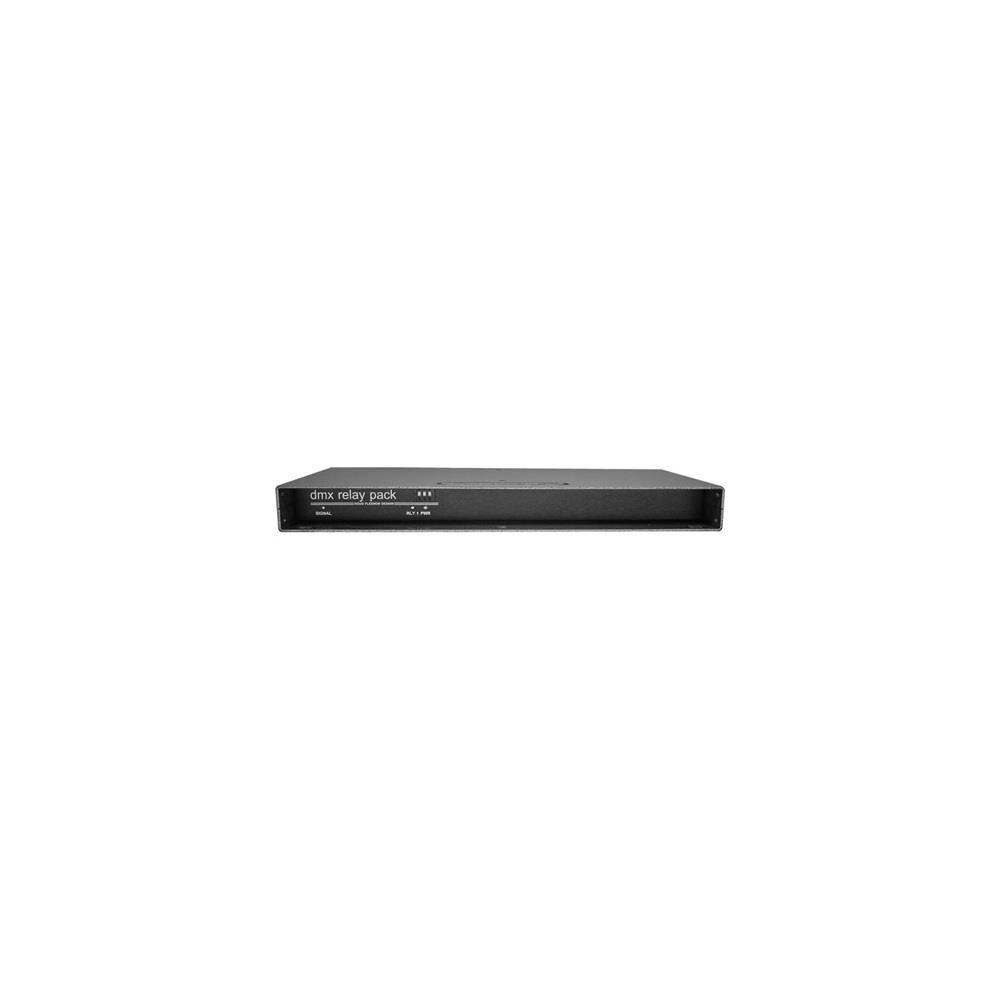

Doug Fleenor Design DFD-DMX6REL15A Six Channel Relay Pack with 1 Line in 15A Pigtail

Doug Fleenor Design makes a series of Relay Packs that are controlled by DMX512. These six channel units are designed to switch up to 15 amp line voltage loads and use 30 amp relays. Line voltage input is on an 18'' 12/3 SJ pigtail(s) fitted with 15 amp parallel blade plug(s). Model DMX6REL15A has one line in pigtail. Model DMX6REL30A has two line in pigtails (one for channels 1-3, one for channels 4-6). Switched line outputs are on chassis mounted 15 amp parallel blade receptacles. FeaturesSix channel units are designed to switch up to 15 amp line voltage loads and use 30 amp relaysDMX6REL30A has two line in pigtails (one for channels 1-3, one for channels 4-6)SpecificationsInput signal: 250 Kilobaud, 0.2 V minimum, 12 V maximumInput circuit: EIA-485 receiver protected against 120 VAC line cross and transients to 5 KV by two 100 ohm PTC self resetting fuses and four low capacitance transient suppression diodesInput connector: Gold plated 5 pin maleInput pass through: Gold plated 5 pin female, All five pins are passed through.Power input: 120 volts, 50/60 hertz, 2 wattsPower input plug: NEMA type 5-15P dead front plug standardPower input rating: 15 amps per line input pigtail with standard plugPower output: Input power is switched to outputPower output socket: Nylon NEMA type 5-15R receptaclePower output rating: 15 amps per outputOutput device: Aromat JTNSize: 1.7'' H x 16'' W x 6.5'' DWeight: 0.1 lbs
