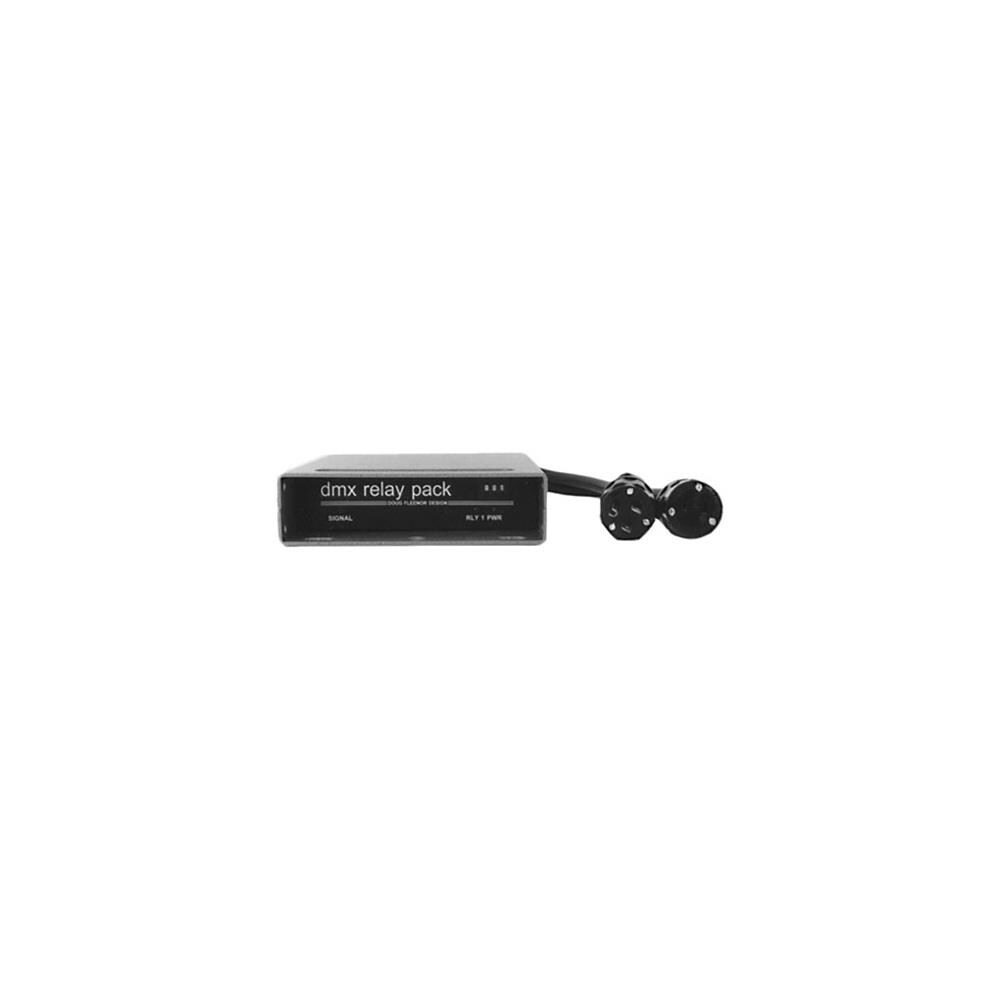

Doug Fleenor Design makes a series of Relay Packs that are controlled by DMX512. The DMX1REL20A is a single channel unit, designed to switch up to a 20 amp line voltage load, and uses a 30 amp relay. The unit is provided with two 18'' 12/3 SJ pigtails for line-in and switched line-out. Supplied with 15 amp parallel blade connectors as standard, the unit may be wired with higher rating connectors by special order or may be rewired by the user. Unit operates on 100-208V 50/60Hz, and may be optionally setup to work on 220-240V 50/60Hz.Obtainable connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure. FeaturesDMX1REL20A is a single channel unit, designed to switch up to a 20 amp line voltage load, and uses a 30 amp5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosureSpecificationsInput signal: 250 Kilobaud, 0.2 V minimum, 12 V maximumInput circuit: EIA-485 receiver with two 100 ohm PTC self resetting fuses, four low capacitance transient suppression diodesInput connector: Gold plated 5 pin maleInput pass through: Gold plated 5 pin female, All five pins are passed throughPower input: 100 to 208 Volts, 50/60 hertz, or 220 to 240 Volts 2 wattsPower input plug: NEMA type 5-15P dead front plug standard, others optionalPower output: Input power is switched to outputPower output socket: NEMA type 5-15R dead front receptacle standard, others optionalOutput rating: 15 amps with standard connectors, 20 amps with optional connectorsOutput device: Omron G8PElectrical life: 250,000 operations minimum at 5 Amps. 125,000 operations minimum at 20 AmpsSize: 1.7'' H x 6.5'' W x 6.5'' DWeight: 0.1 lbs
