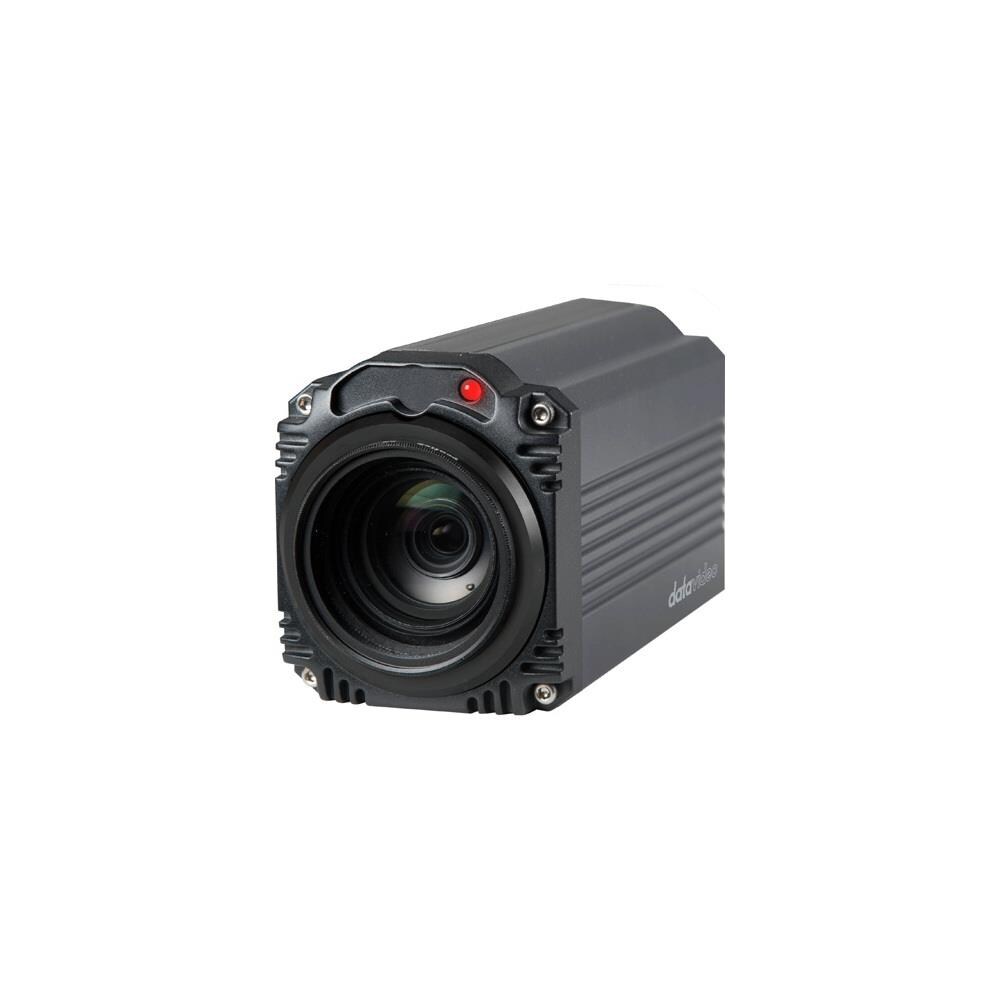

The BC-50 is a cost-effective block camera with 20x optical and 16x digital zoom. The video output is 3G/HD-SDI, it also supports VISCA/Pelco-D/Pelco-P protocols for control via RS-485. The BC-50 can deliver the compressed video signal H.264/H.265/MJPEG, and also RTMP streaming to facebook and youtube. The BC-50 Block Camera is a small HD camera with sturdy and durable metal case can be used in different types of environments. Features 1080P Full HD resolution 20x optical zoom with a maximum aperture of F1.8. The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ control H.264/H.265/Motion-JPEG compression through RJ-45 connection RTMP streaming to facebook and youtube Regular 3G SDI output for uncompressed video up to 1080P Controllable by VISCA/Pelco-C/Pelco-D Tally lights for broadcast level applications The camera is only 6.4 inch long facilitating setup in all environments Cold shoe mount for connecting an external LED light or monitor On-Screen Display ( OSD) English, Simplified Chinese, Traditional Chinese Specifications Video format: 1080p 60/50/30/25, 1080i 60/50, 720p 60/50 Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast Image Sensor: 1/2.7-" progressive scan CMOS sensor Effective Pixels ( approx.): 2.07 Mega pixels Electronic Shutter: 1/30s - 1/10000s Zoom Ratio: 20x Optical zoom , 16x Digital zoom Gamma Control: Yes Iris Control: Auto/Manual Digital Noise Reductions: 2D and 3D White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push, Manual AGC/Gain Control: Auto/Manual ( 0 to 28 step), Max. Gain Limit ( 6 to 28 step) Focus Mode: Auto/Manual Field of View ( Horizontal, Wide): Approx. 63.7 degree ( WIDE END)/2.3 degree ( TELE END) Image Compensation: Day and Night function Video Output: 3G/HD-SDI x1 Tally LED: Dual color ( Red, Green) Filter: M52.0 x 0.75 Thread with UV Protection RoHS: Compliant Remote Control Interface and Transmit Distance: RS-485: Transmit up
