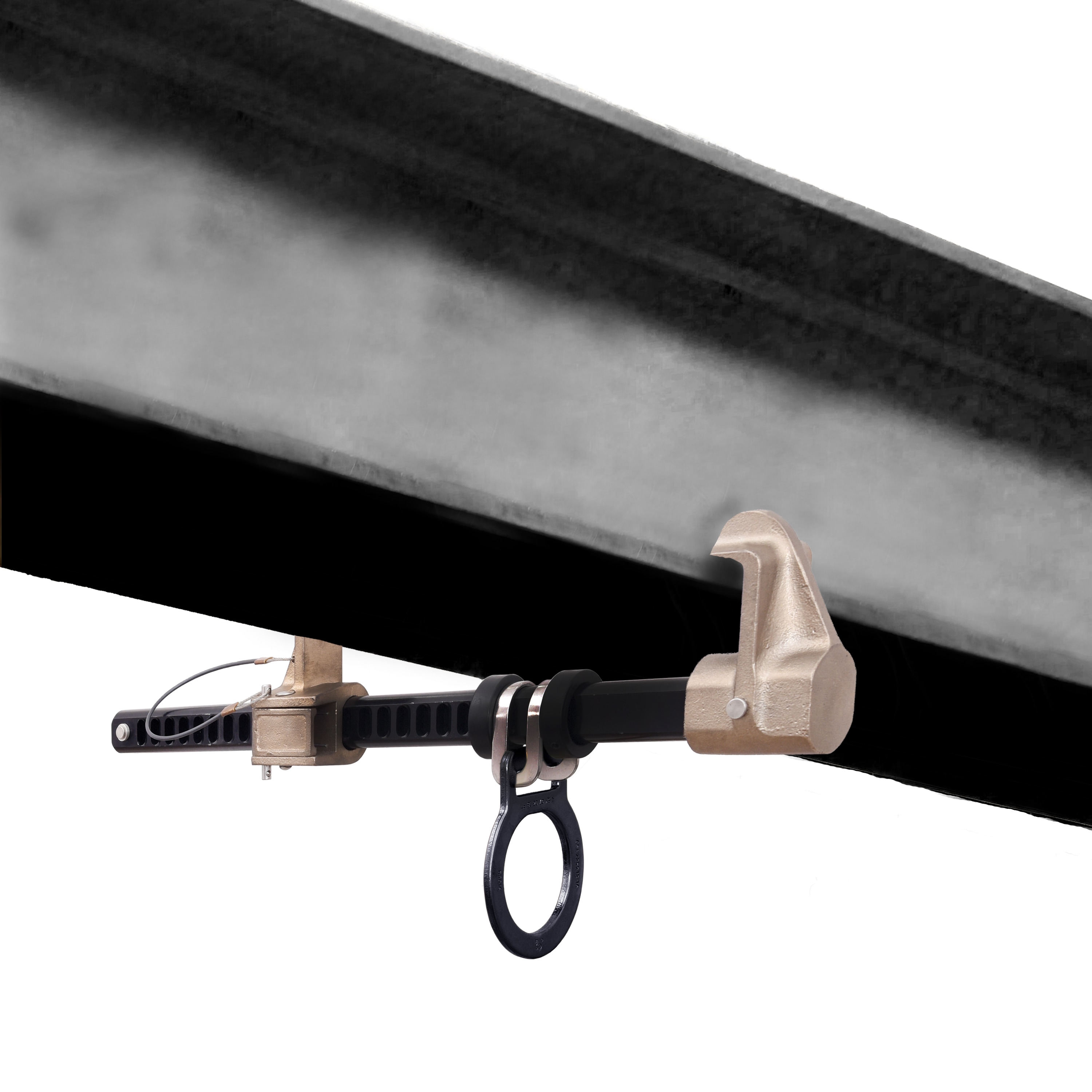

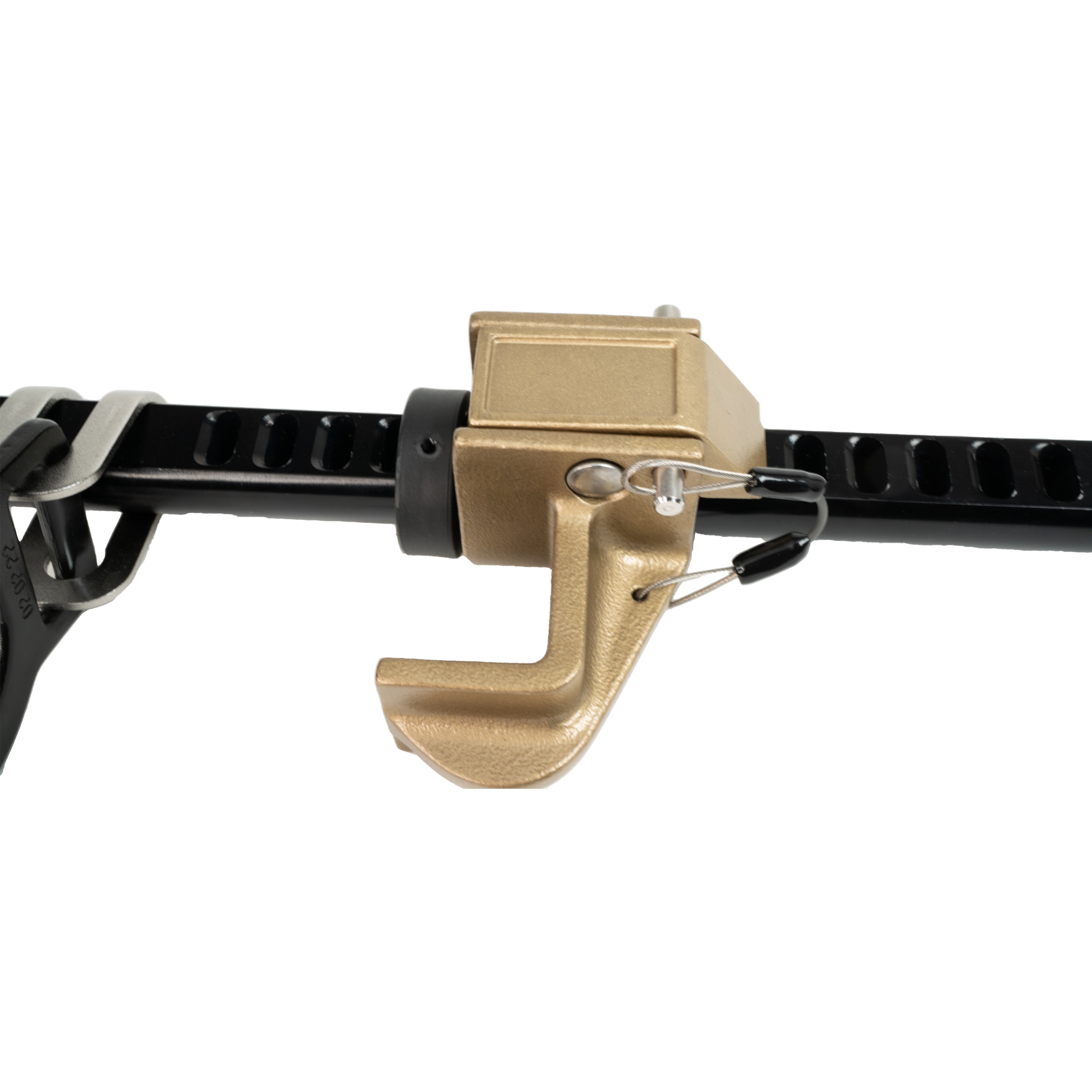

The DEWALT Fixed Beam Anchor is capable of being installed on the flange of horizontal beams. The variable position jaw adjustment enables it to be installed on flange widths of 3.5 in. (90 mm) to 13.3 in. (340 mm). Capacity of 310 lbs. (140 kg).
Durability: the aluminum alloy and brass construction of the fixed beam anchor provides exceptional strength for a long-lasting anchor point
Compact and lightweight: weighing only 4.13 lbs., this beam anchor is easily moved and reused from location to location
Flexibility: can be used as a horizontal temporary anchor point on steel beam flanges
Size and weight of flange widths is 3.5 inches (90 mm) to 13.3 inches (340 mm) W, 4.13 lbs (1.872 kg)
Minimum breaking strength of 5,000 lbs (23kN)
Standards: ANSI Z359.18-2017, OSHA 1926.502 and 1910.140
Material: aluminum alloy and brass
