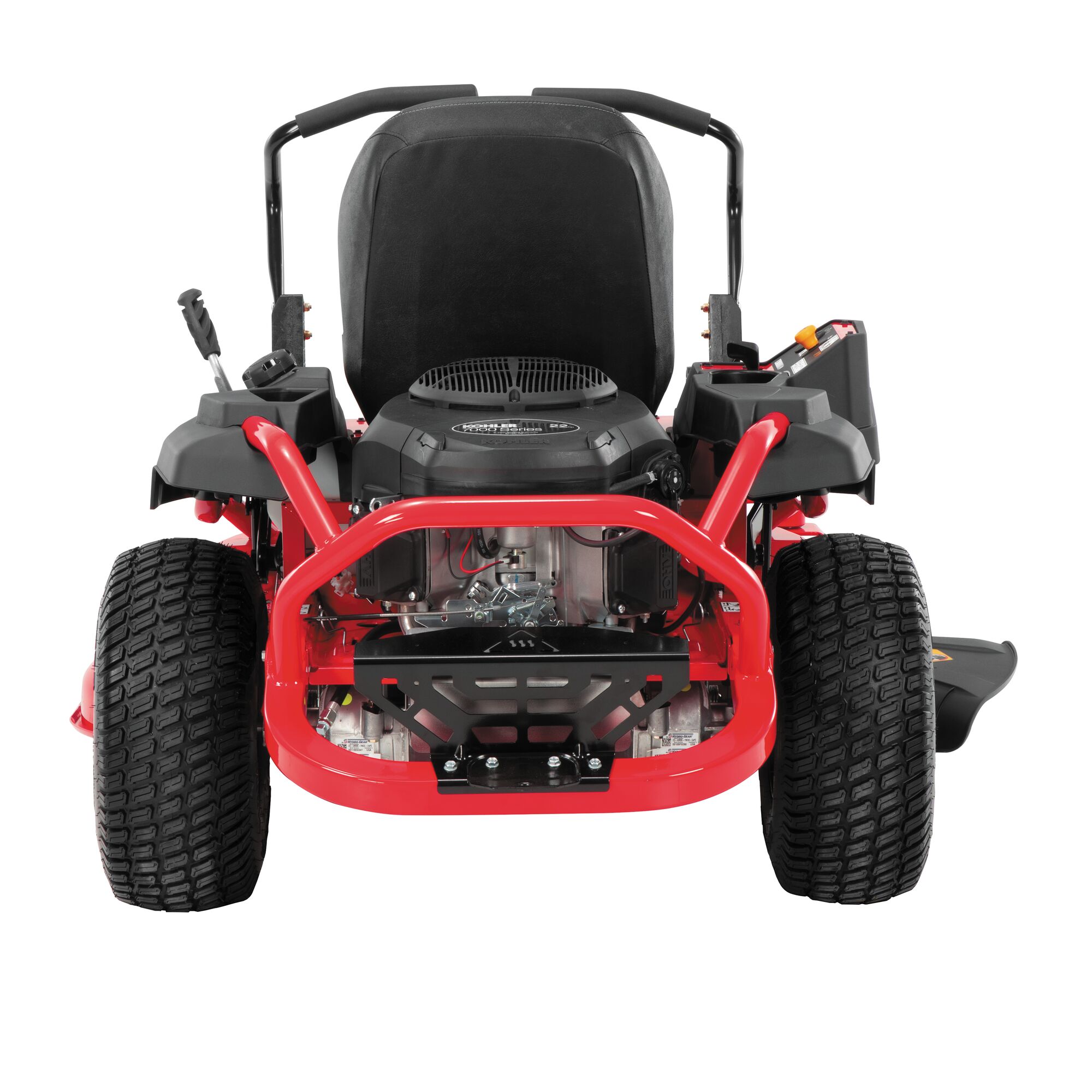

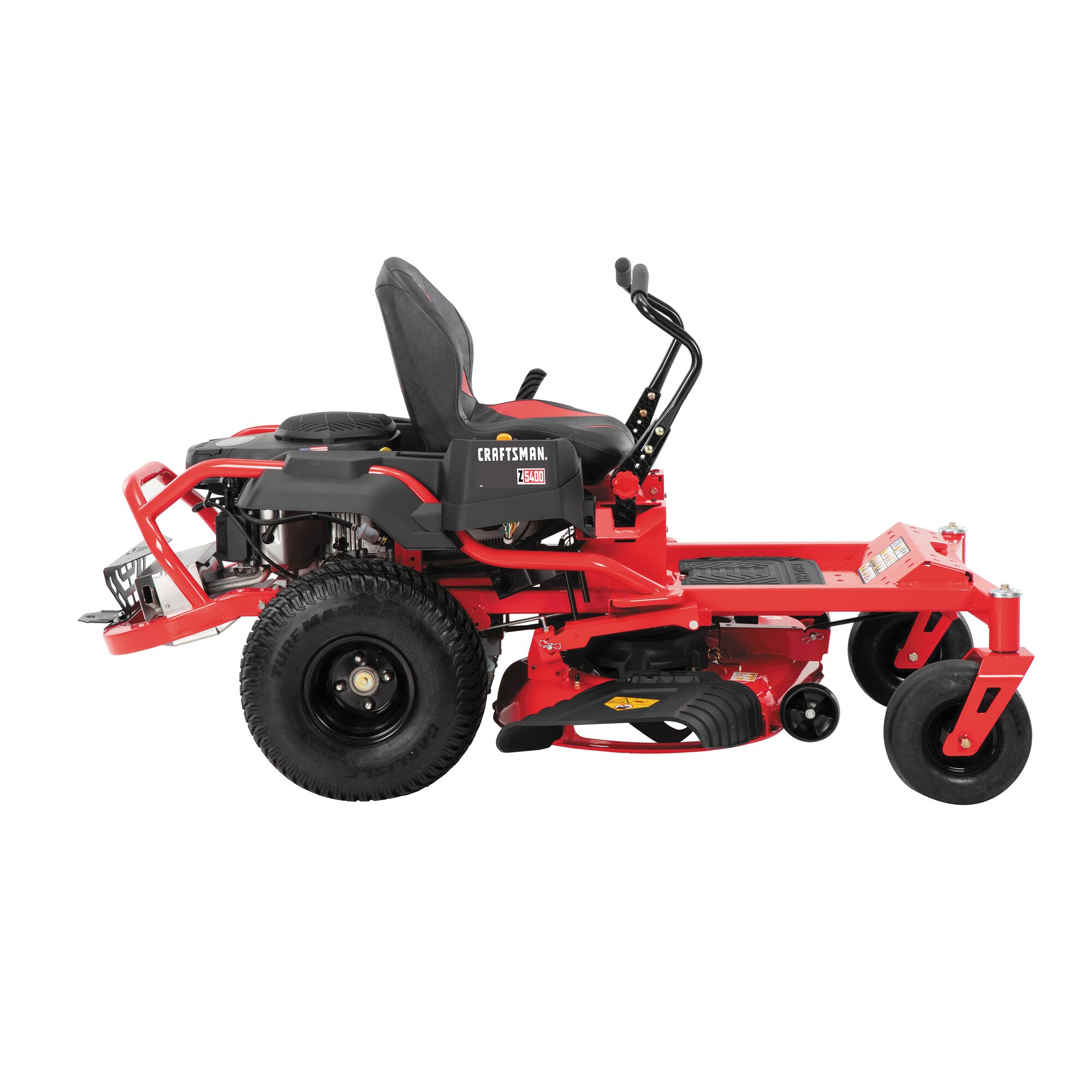

CRAFTSMAN Z5400 46-in 22 -HP V-twin Gas Zero-turn riding lawn mower
Item #2593136 |
Model #CMXGNAM211702
Powerful engine: Powered by a reliable 22 HP Kohler® 7000 twin-cylinder engine
Adjustable lap bar: Easy to operate 3-way adjustable lap bar
Comfort: Rubber foot pad allows you to focus on the task at hand by providing a smoother ride with less vibration
Increased traction control: 20x8/11x6 Turf Master® tires offer excellent traction without damaging your yard
Durable: 46-in stamped steel deck holds up against tough obstacles.
Cut-and-sew seat: High-back seat provides comfort and support to make sure the job gets done right
Warranty: 3-year limited product manufacturer warranty and 5-year frame warranty
Engine disclaimer: Engine power ratings are as certified by the engine manufacturer as actual operating power may vary
See the Parts and Attachments section below and the parts diagram in the images section for all the correct CRAFTSMAN® mowers parts and accessories
General | |||
|---|---|---|---|
Deck Engagement Type | Electric | Seat Type | High-back |
Deck Type | Stamped | Start Type | Turn key start |
Type | Zero-turn riding lawn mower | Transmission Type | Dual hydrostatic |
Battery Type | Lead acid (AGM sealed) | Power Source | Gas |
Blade Engagement Type (PTO) | Electric | Series Name | Z5400 |
Deck Material | Steel | Color/Finish Family | Red |
Drive Type | Rear wheel drive | Oil Filter Type | Spin-on |
Engine Type | V-twin | Number of Deck/Anti-Scalp Wheels | 2 |
Dimensions | |||
|---|---|---|---|
Cut Height Adjustment | 7-position | Overall Length (Inches) | 84 |
Mower Deck Width (Inches) | 46 | Rear Wheel Size | 20-in |
Weight (lbs.) | 710 | Minimum Cutting Height (Inches) | 1 |
Cut Width (Inches) | 46 | Maximum Cutting Height (Inches) | 4.5 |
Front Wheel Size | 11-in | Overall Width with Deck (Inches) | 52 |
Fuel Capacity (Gallons) | 3.5 | Engine Oil Capacity (oz.) | 64 |
Features | |||
|---|---|---|---|
Deck Lift System | Manual | Grease Fittings | Yes |
Grass Deflector | No | Maximum Forward Speed (MPH) | 7 |
Headlight(s) | No | Maximum Reverse Speed (MPH) | 3.5 |
Model Description | 46-in with Kohler ZTR | Turning Radius (Inches) | 0 |
Number of Blades | 2 | Charger Included | No |
Ammeter | No | Lowe's Exclusive | Yes |
Bagger Included | No | Mulching Capable | Yes (kit sold separately) |
Cruise Control | No | Engine Oil Included | Yes |
Deck Gauge | 12 | Engine Horsepower | 22 |
Discharge Location | Side | Bagger Capable | Yes |
Engine Brand | KOHLER | Operator-Controlled Mow-in-Reverse | No |
Engine Displacement (Cu. Centimeters) | 725 | Trailer Hitch Included | No |
Engine Series | Kohler 7000 | Removable Battery | No |
Front Axle | Fabricated steel | ||
Compatibility | |||
|---|---|---|---|
Matching Bagger (Item #) | 1136131 | Recommended Yard Size | 1 to 2 acres |
Matching Mulch Kit (Item #) | 2916553 | Recommended Terrain Type | Flat with obstacles |
Replacement Blade OEM Part Number | 742P05510 | Attachment Compatible | Front and rear |
Replacement Belt OEM Part Number | 754P06135 | ||
Warranty | |||
|---|---|---|---|
Warranty | 3-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 21101700 | ||
Check out the Best Selling Riding Lawn Mowers on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
This zero-turn mower offers powerful performance, smooth handling, and excellent cutting ability, even in tall or thick grass. Customers praise its time-saving capabilities and comfortable ride. However, some report minor issues like missing parts or assembly problems. Overall, it is a reliable and high-performing product that significantly improves the lawn mowing experience.
Customer review summary generated by AI, including incentivized reviews.Great Features
I have only mowed once, but so far I love the cut!!!!
Verified Purchaser
I like it
Looks good, cuts good, maneuvers good, plenty of power
Verified Purchaser
its great
love the product
Verified Purchaser
craftsman 5409 zero turn
I bought one 3 years ago. I use it everyday in my landscaping business. no Major issues. it gives a good cut. I would recommend the mower to anyone.
