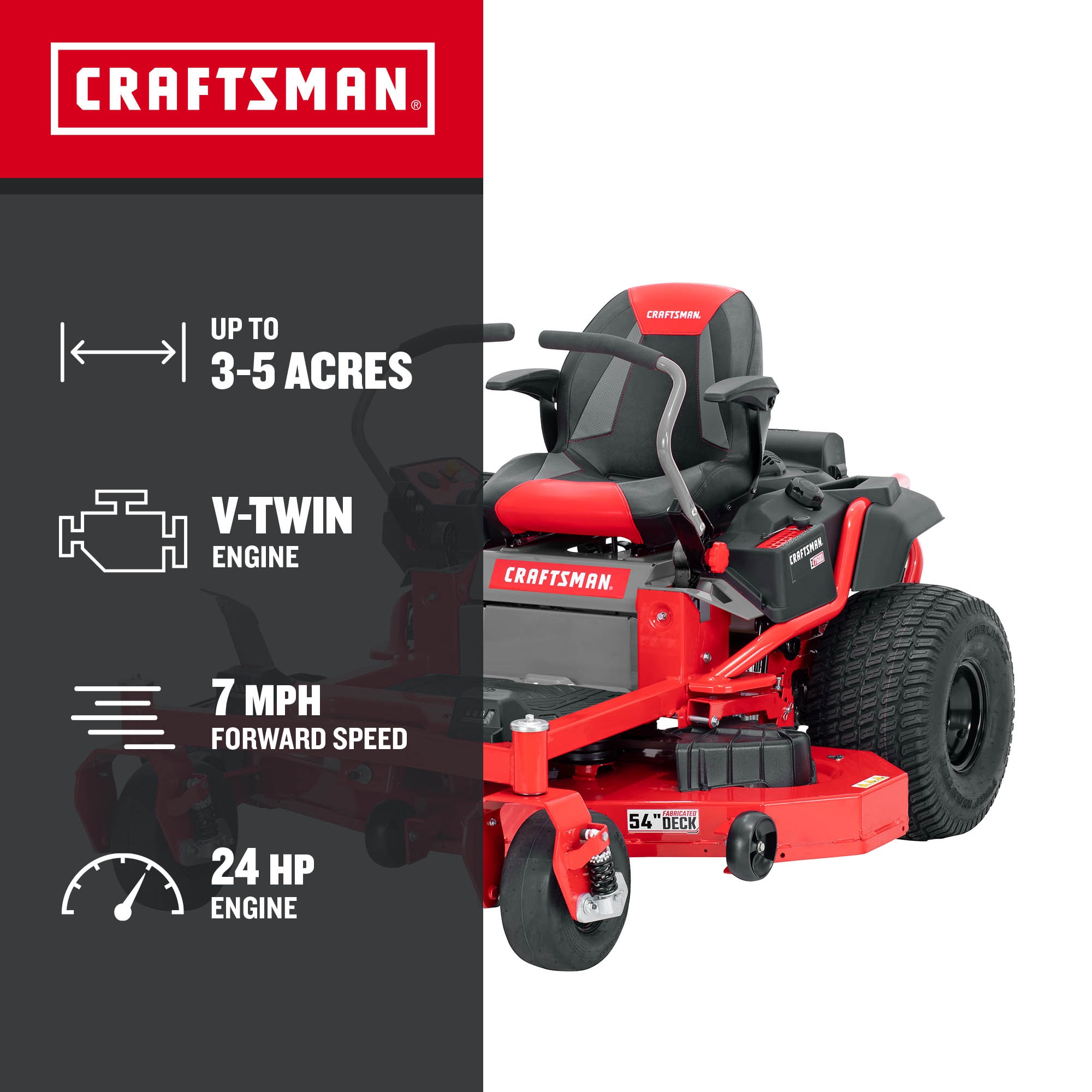

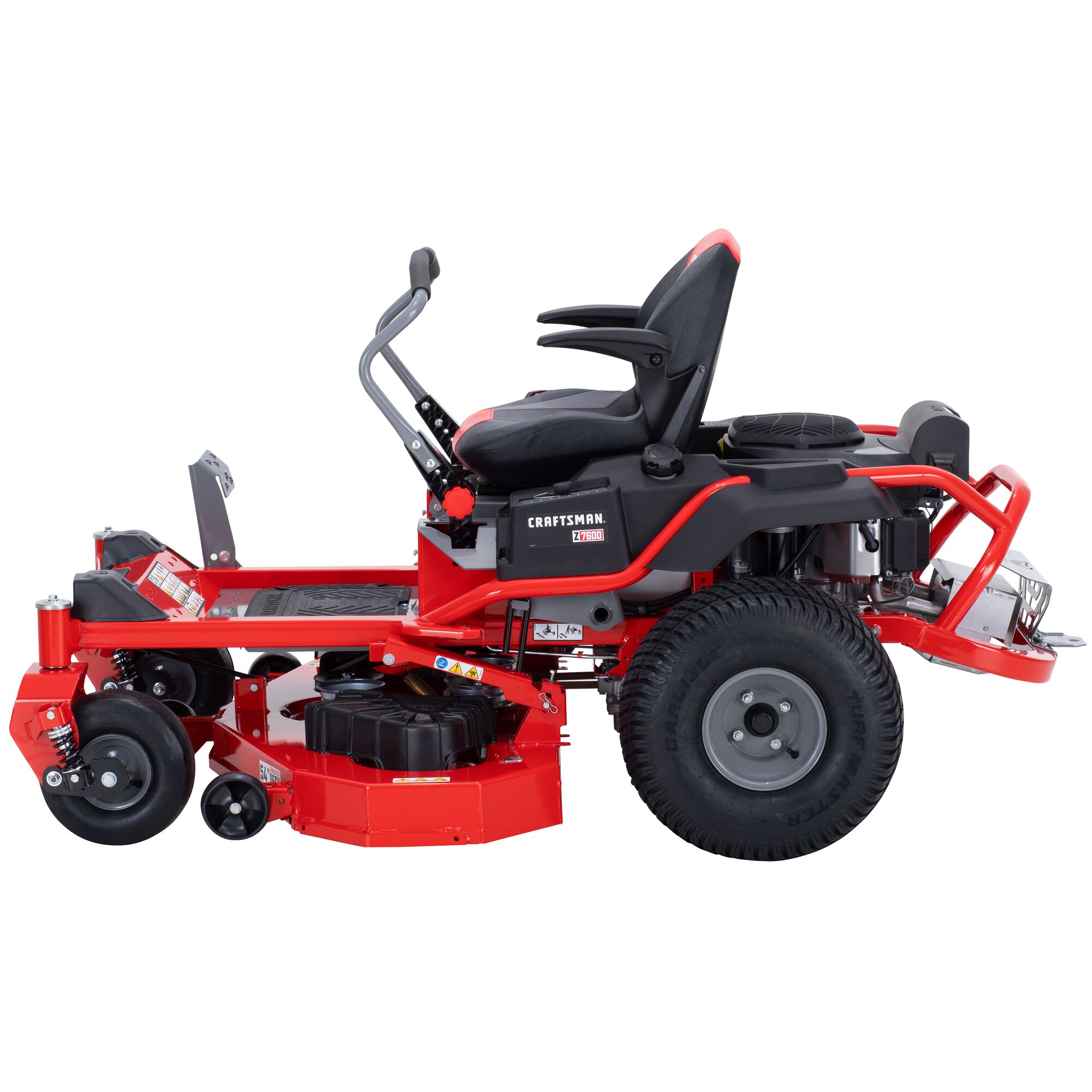

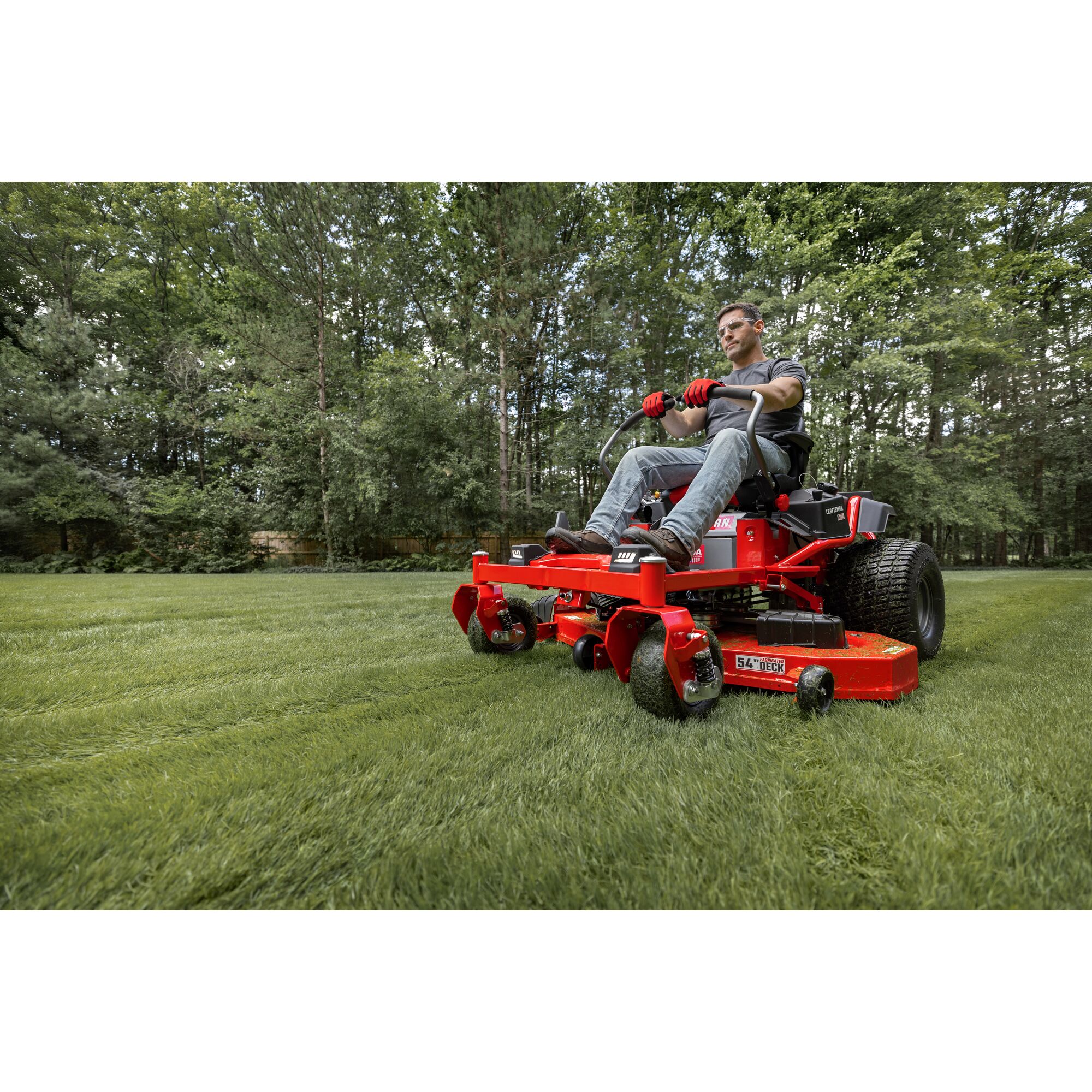

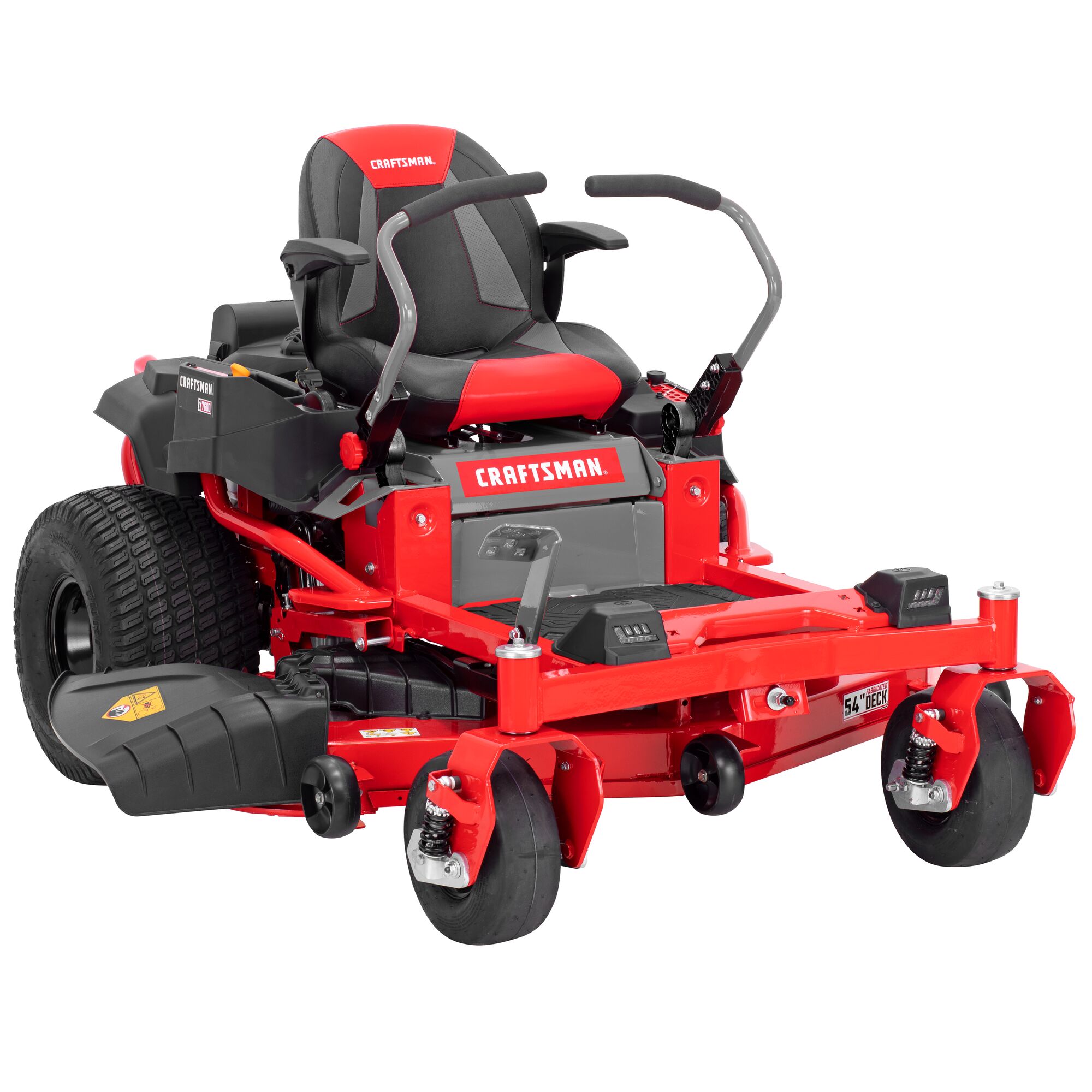

CRAFTSMAN 24 HP 54-in. Gas Zero-Turn Riding Mower 54-in 24 -HP V-twin Gas Zero-turn riding lawn mower
Item #1099302 |
Model #CMGN231702

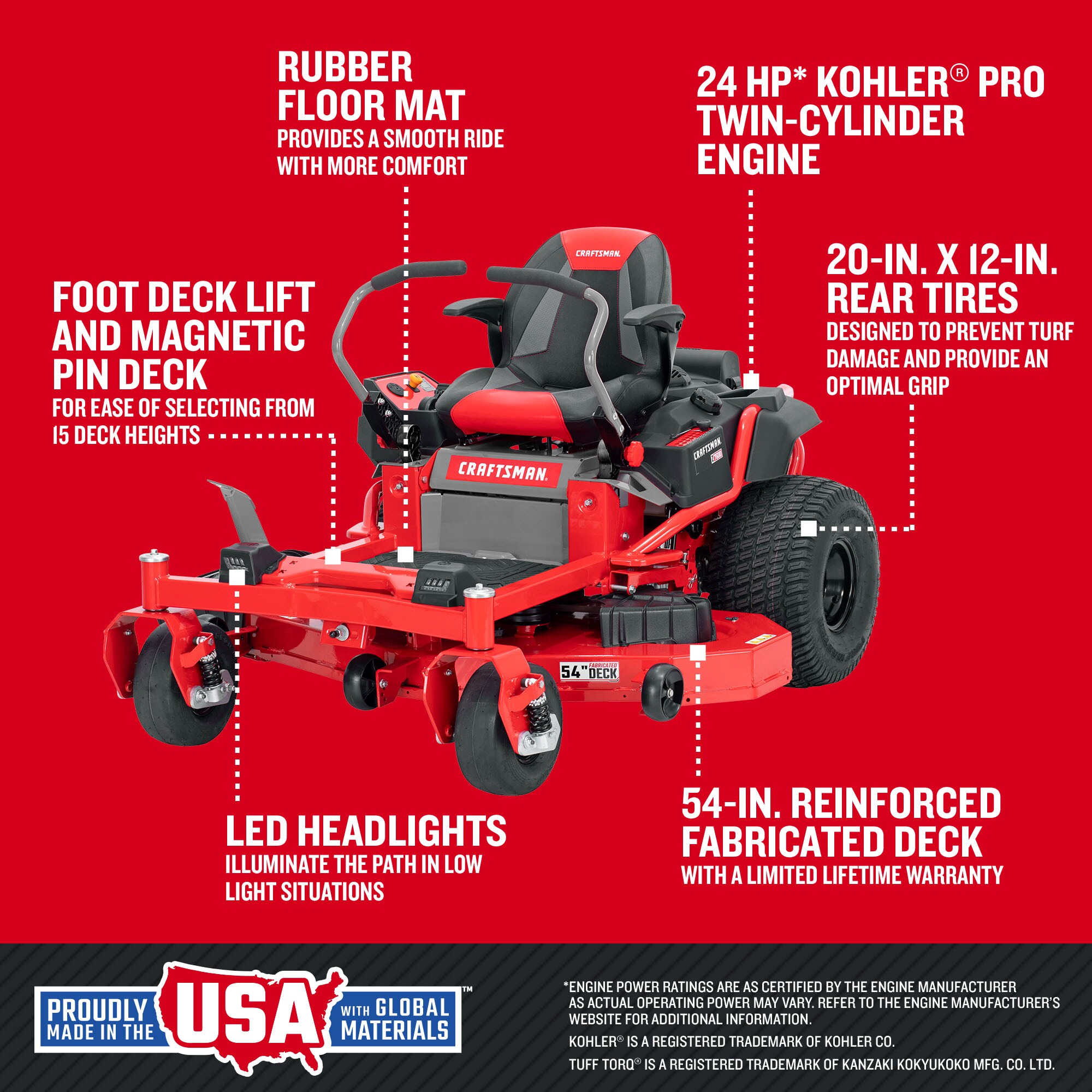

Premium performance: Powerful 24 HP KOHLER® Pro KT735 engine with Tuff Torq TZ 350 Transmission

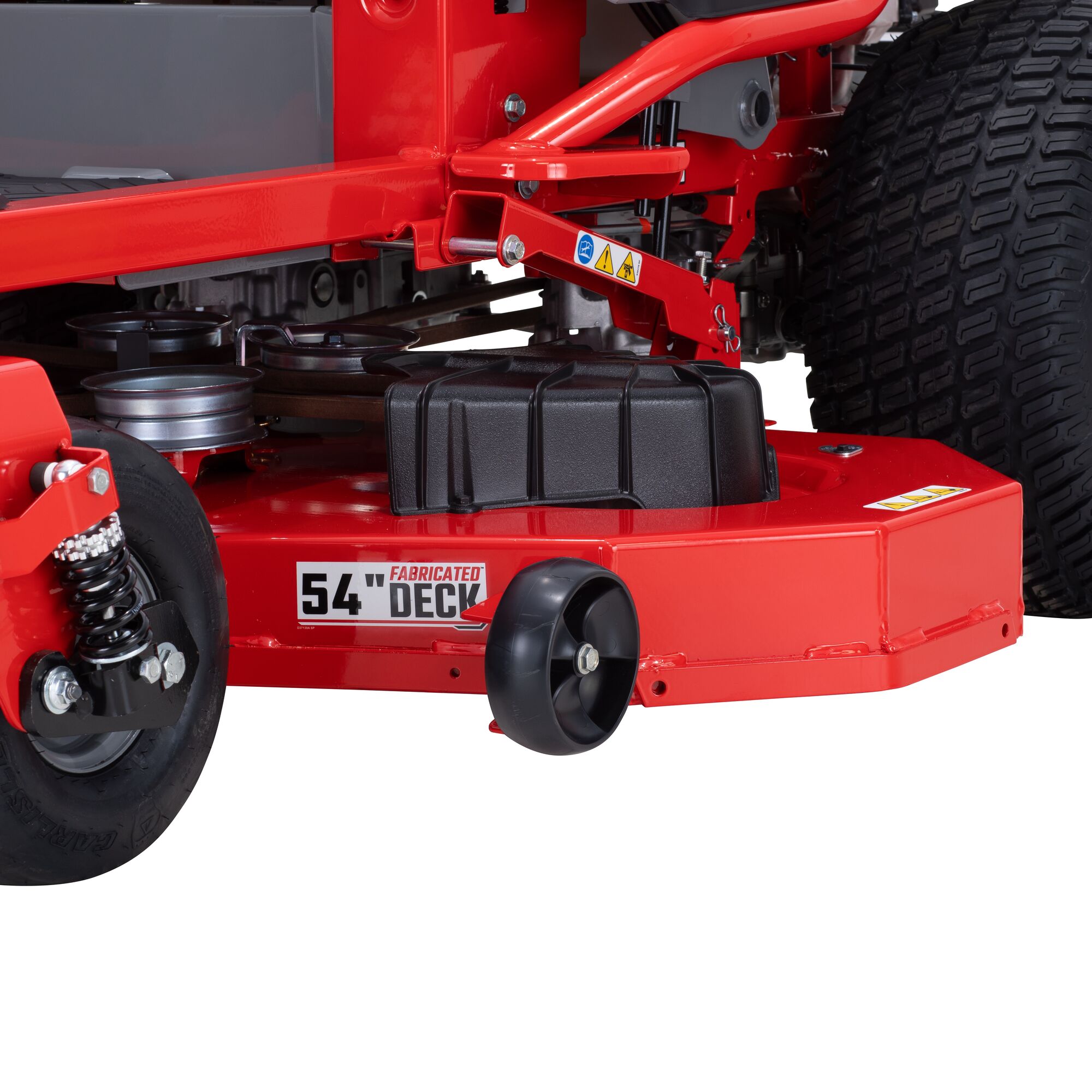

High-endurance deck: 54-in reinforced fabricated deck designed to hold up against difficult conditions
Traction control: Glide over grass with 20-in x 12-in rear tires designed to prevent turf damage and provide an optimal grip
Proudly made in the USA with global materials in Martin, Tennessee
LED headlights to help illuminate the path in low light situations

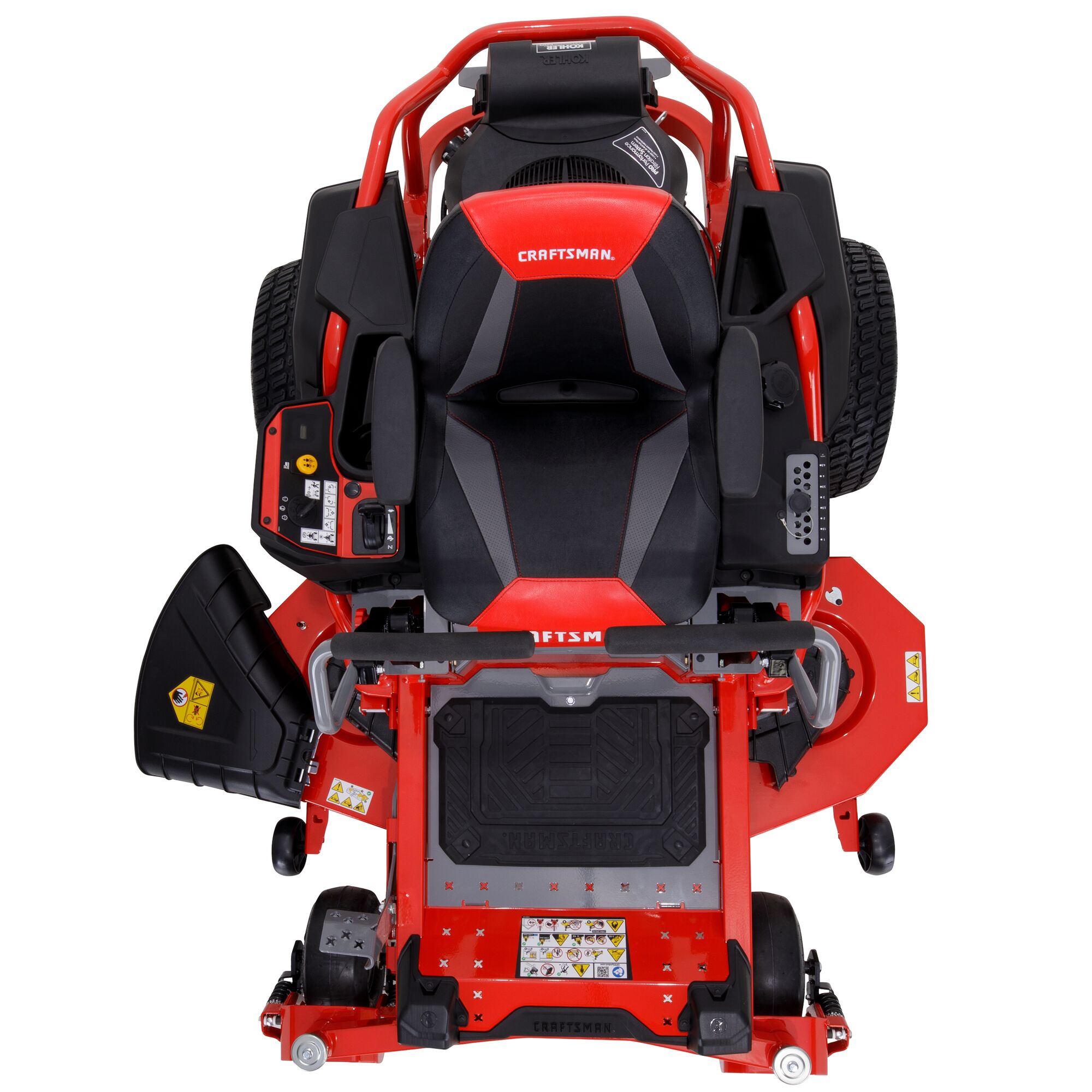

Sitting support: 20-in 3-color cut-and-sew with arm rest and seat slide adjust
Ease of use: Foot deck lift and magnetic pin deck for ease of height selection when selecting from 15 deck heights

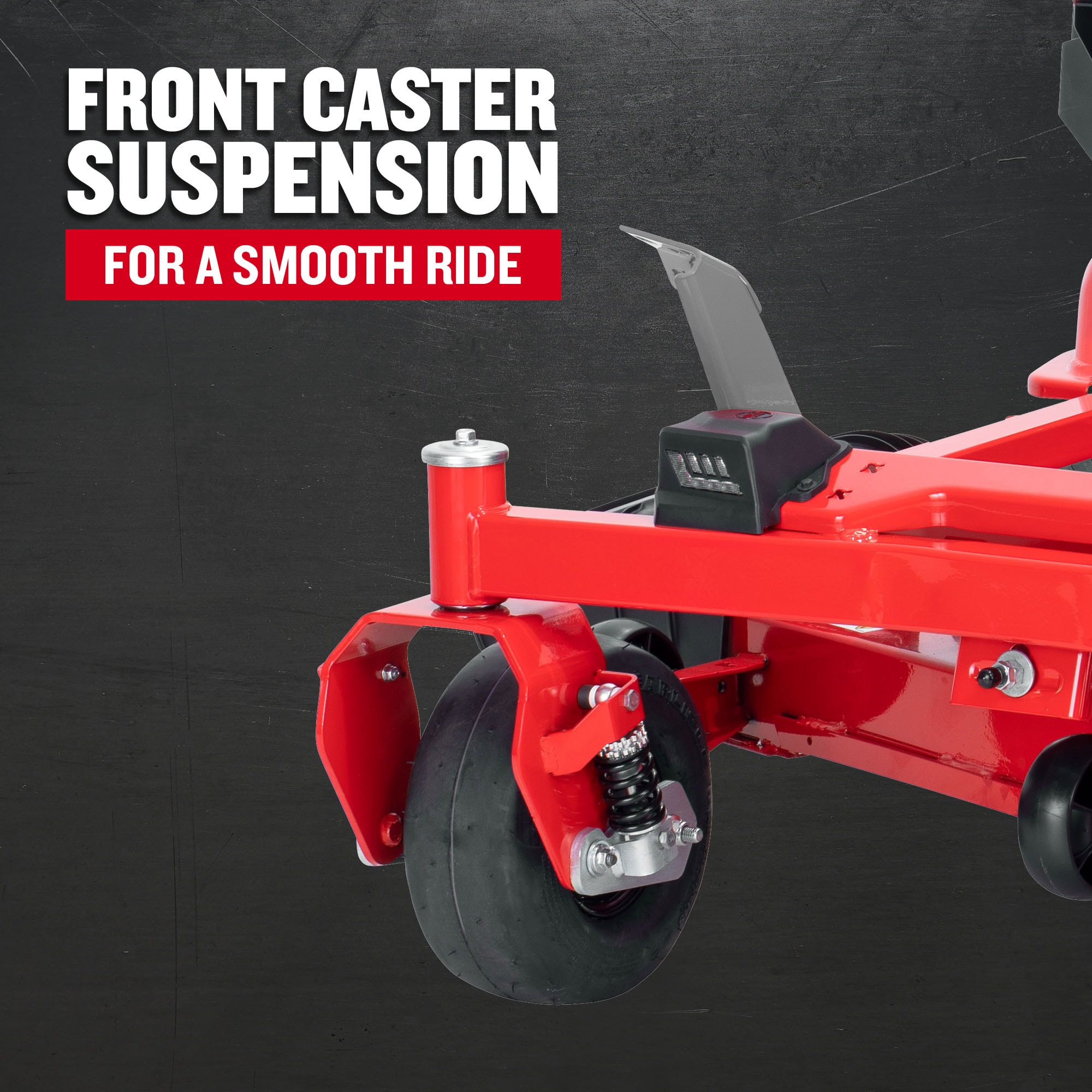

Smooth ride: Experience a smooth ride with a front caster suspension
Comfortability: Rubber floor mat designed to help vibration on the operator's feet for a comfortable mowing experience
General | |||
|---|---|---|---|
Blade Engagement Type (PTO) | Electric | Power Source | Gas |
Deck Type | Fabricated | Seat Type | Mid-back with arm rests |
Drive Type | Rear wheel drive | Series Name | 24 HP 54-in. Gas Zero-Turn Riding Mower |
Engine Type | V-twin | Start Type | Turn key start |
Number of Deck/Anti-Scalp Wheels | 3 | Transmission Type | Side by side foot pedal hydrostatic |
Oil Filter Type | Standard | Type | Zero-turn riding lawn mower |
Dimensions | |||
|---|---|---|---|
Cut Width (Inches) | 54 | Minimum Cutting Height (Inches) | 1 |
Engine Oil Capacity (oz.) | 64 | Overall Length (Inches) | 81 |
Front Wheel Size | 12-in | Overall Width with Deck (Inches) | 54 |
Fuel Capacity (Gallons) | 3.5 | Rear Wheel Size | 20-in |
Maximum Cutting Height (Inches) | 4.5 | Weight (lbs.) | 640 |
Features | |||
|---|---|---|---|
Ammeter | No | Engine Oil Included | Yes |
Bagger Capable | Yes | Engine Series | Kohler Pro KT735 |
Bagger Included | No | Front Axle | Fabricated steel |
Charger Included | No | Grease Fittings | Yes |
Commercial/Residential | Residential | Headlight(s) | Yes |
Cruise Control | No | Lowe's Exclusive | Yes |
Cup Holder | No | Maximum Forward Speed (MPH) | 7 |
Deck Gauge | 15 | Maximum Reverse Speed (MPH) | 3.5 |
Discharge Location | Side | Model Description | Z7600 24 HP KOHLER 54" ZTR |
Engine Brand | KOHLER | Mulching Capable | Yes (kit sold separately) |
Engine Displacement (Cu. Centimeters) | 725 | Number of Blades | 2 |
Engine Horsepower | 24 | Operator-Controlled Mow-in-Reverse | Yes |
Compatibility | |||
|---|---|---|---|
Attachment Compatible | Rear | Recommended Yard Size | 3 to 5 acres |
Matching Mulch Kit (Item #) | 5216233 | Replacement Belt OEM Part Number | 954-04329A |
Recommended Terrain Type | Flat with obstacles | Replacement Blade OEM Part Number | 742P05086 |
Warranty | |||
|---|---|---|---|
Warranty | 3-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 21101700 | ||
Check out the Best Selling Riding Lawn Mowers on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The product offers a mixed performance, with some customers satisfied with its power, smooth ride, and cutting ability, while others report frequent mechanical failures and reliability issues. Key concerns include difficulty finding replacement parts, faulty components, and poor warranty support. While the product may initially perform well, the lack of reliable parts and service appears to outweigh its strengths for many users.
Customer review summary generated by AI, including incentivized reviews.DON'T BUY!!
I had this mower a little over a year then it stopped. It wouldn't go forward or backwards. Called Craftsman for warranty repair. They gave me two company's to take it to. They both were out of business. Had to call again. Took it to a dealer and they fixed the mower but now Craftsman is dragging the process out. I have been without the mower for over three weeks when it only took two days to fix. It is under warranty but Craftsman is not paying the dealer for some reason. I called Craft...
Lowes

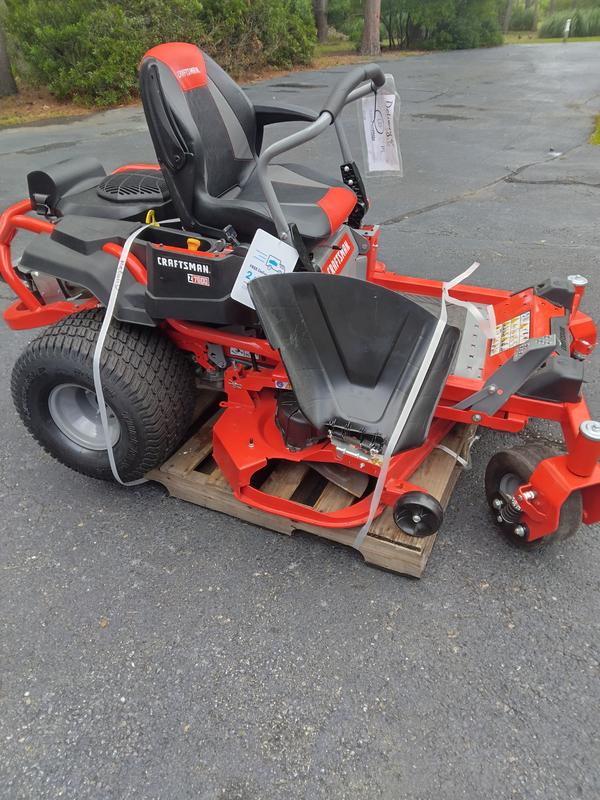

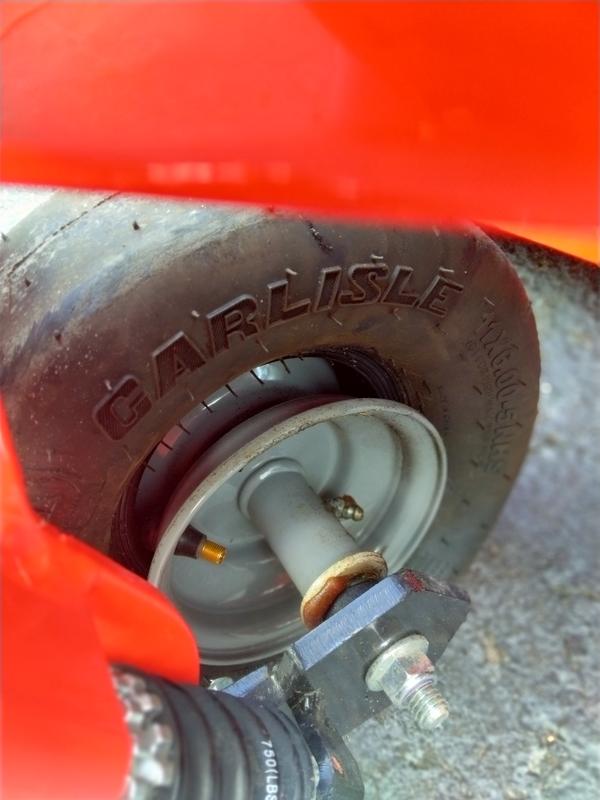

Got my Z7600 delivered today on a pallet for me to get off. Right front tire was completely flat. The battery bracket was not fastened down and did not fit the battery they installed. I assumed they installed the smallest cheapest battery allowed. Tried calling them today but have gotten on there automated robo thing, no real people. Frustrated!
Well built more than expected for craftsman, lots
Works well unless grass is damp at which point when incline mowing then machine experiences loss of steering and traction. Not a big issue i just cut when the sun shines
Verified Purchaser
Easy deck raising and lowering
Love everything about this mower. I was just only disappointed that the deck belt tensioner spring broke with less than 10 hours of usage but was able to repair it on my own.
Verified Purchaser
Girliest Zero Turn
I researched almost every brand/manufacturer prior to purchase of the Craftsmen Z7600. The Kohler engine has plenty of power and the ride is very comfortable. I have owned this model for over one year and would purchase it again.
