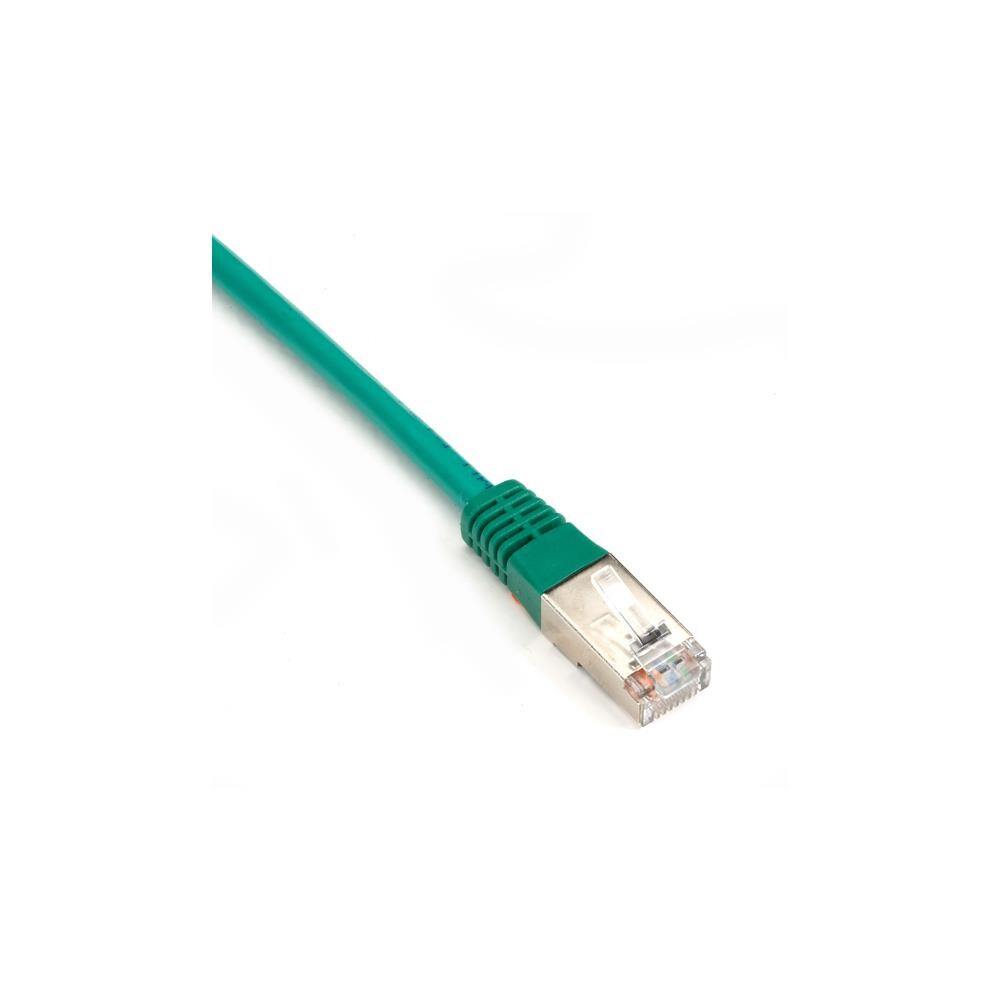

CAT5e 100-MHz Shielded Stranded PVC Cable- 26 AWG, Green- 1 ft.

Features Cable construction - 26 AWG stranded conductor, straight-pinned, 4-pair, T568B, molded boots Shielding - Mylar tape, tinned-copper drain wire-aluminum/Mylar tape Shielded slimline RJ-45 connector Flame retardancy is verified according to IEC 60332-1-2 Shielded CAT5e cable for noisy data center and desktop connections Ideal for use in data, audio, and video applications and for horizontal network connections up to 1000BASE-T Specifications Color: Green ACR: 13.3 dB/100 m at 100 MHz ACRF: 23.8 dB/100 m at 100 MHz Attenuation: 33.0 dB/100 m at 100 MHz Cable Outside Diameter - Nominal: 0.22-" Capacitance Unbalance - Pair to Ground: 330 pF/100 m maximum Conductor: 26 AWG, stranded, bare copper Impedance: 100 15 ohms at 100 MHz Insulation: HDPE, 0.008-" NEXT: 35.0 dB/100 m at 100 MHz PS-NEXT: 32.0 dB/100 m at 100 MHz Return Loss: 20.1 dB/100 m at 100 MHz RoHS: Yes Temperature/Voltage Rating: 167 degrees F at 300 V Jacket: PVC Standards: UL E196163-Y-IEC 60332-1-2-ISO/IEC 11801 ed 2-EN 50288-2 2-TIA/EIA-568-B.2 CAT5e Length: 1 ft. Weight: 0.09 lbs
