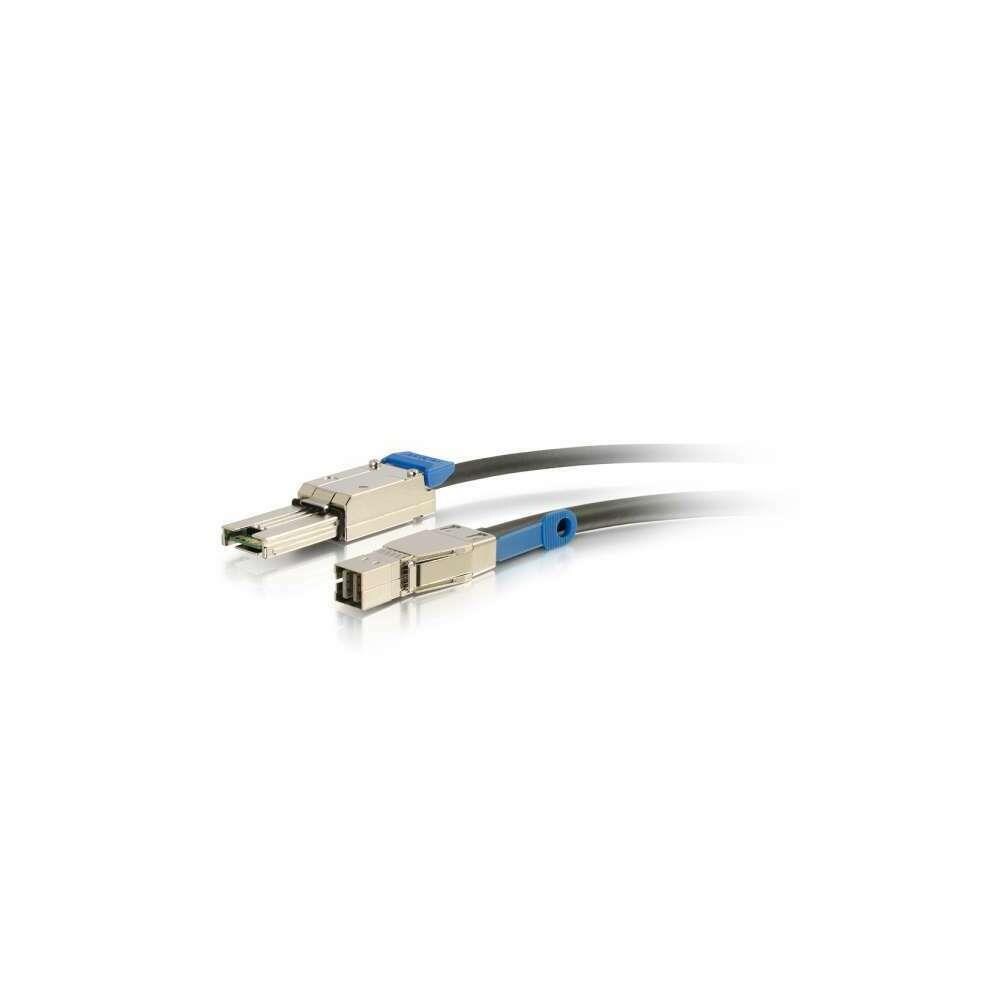

C2G Cables to Go 54256 2m Mini-SAS HD to Mini-SAS Cable, Black

C2G is a leading high performer of cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. We are focused on delivering unique connectivity products and solutions while providing an effortless experience and value added solutions. We are dedicated to going beyond basic fulfillment by creating lasting quality where your specific needs are addressed through both products and servicesLink SFF-8644 Mini-SAS HD to SFF-8088 Mini-SAS storage devices to provide data transfer rates up to 12Gbps Features Constructed with 28AWG conductors to optimally support the distance between storage devices Supports data transfer speeds up to 12Gbps Built with silver plated solid copper conductors, Electrical Specifications Differential Impedance: 100 5 TDR Bit Rate 12 Gbps Electrical Specifications Differential Impedance: 100 5 - TDR Bit Rate 12 Gbps Physical Specifications Outer Diameter: 7.75mm Conductor: 28AWG Solid Silver Plated Copper Pair: 2 Singles Lair flat and Parallel Core: 8 Pairs Pair Drain Wire: 30 AWG Solid Tin Plated Copper Pair Shield: Aluminum/Polyester Tape, Aluminum Side facing inward ( 20-25 overlap) Outer Shield: 40 AWG Tin Plated Copper Braid ( 85 Coverage) Jacket Material: Flexible PVC ( Black) Mini-SAS HD Cable Plug ( SFF-8644) Connector Specification PCB: 4 Layer Gold Plating on Contact Pads, Without Carbon Latch: Stainless Steel Backshell: Zinc Die Cast Hood ( Nickel Plated) Pull Tab: Nylon UL94V-0 ( Blue) EMI Spring Shielding Mini-SAS Cable Plug ( SFF-8088) Connector Specification PCB: 4 Layer Gold Plating on Contact Pads, Without Carbon Latch: Stainless Steel Backshell: Zinc Die Cast Hood ( Nickel Plated) Specifications Color: Black Size: 2 Meter Connector 1: ( 1) Mini SAS HD Connector 2: ( 1) Mini SAS HD
