Brixwell PH6X6CH Tubular Back To Back Pull Handle 6 In Center To Center 7-1/4 In Length 1/4 In To 1/2 In Glass Thickness Metal And Plastic Washers Polished Chrome Finish

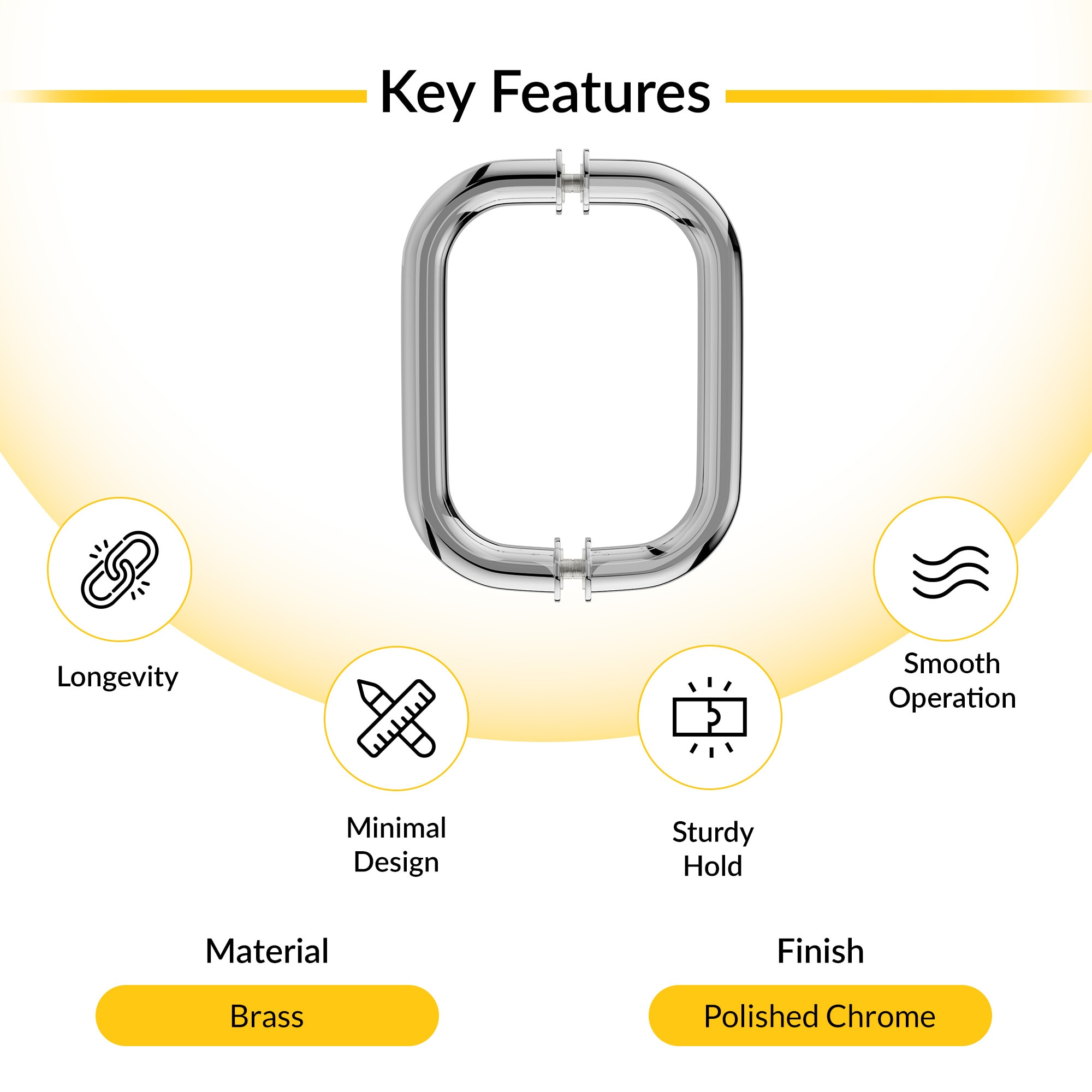

This tubular back-to-back pull handle is intended for glass mounted applications where access is required from both sides of the panel. The handle is manufactured from brass and finished in polished chrome. The center to center spacing measures 6", while the overall length measures 7-1/4", allowing alignment between opposing mounting points. The tubular body has a diameter of 3/4" with a tube thickness of 1.5 mil, forming a consistent round profile along the handle length. Projection from the glass surface measures 2-1/2", defining the clearance between the glass panel and the grip area. Mounting is configured for back-to-back glass installation using monolithic tempered glass panels. Supported glazing thickness ranges from 1/4" to 1/2". Installation requires a hole diameter of 1/2" and uses a 1/4"-20 thread size for fastening. Washer components supplied with the assembly are manufactured from metal and plastic, with a style washer diameter of 1-1/4". The handle design maintains consistent dimensions and spacing for balanced placement on glass surfaces. Care: Wipe hardware dry after use. Clean with mild soap and water if needed. Avoid abrasive cleaners.
