Black Box Black Box BBX-SW1047A DB9 A-B Switch Latching Remote Control Dry Contact

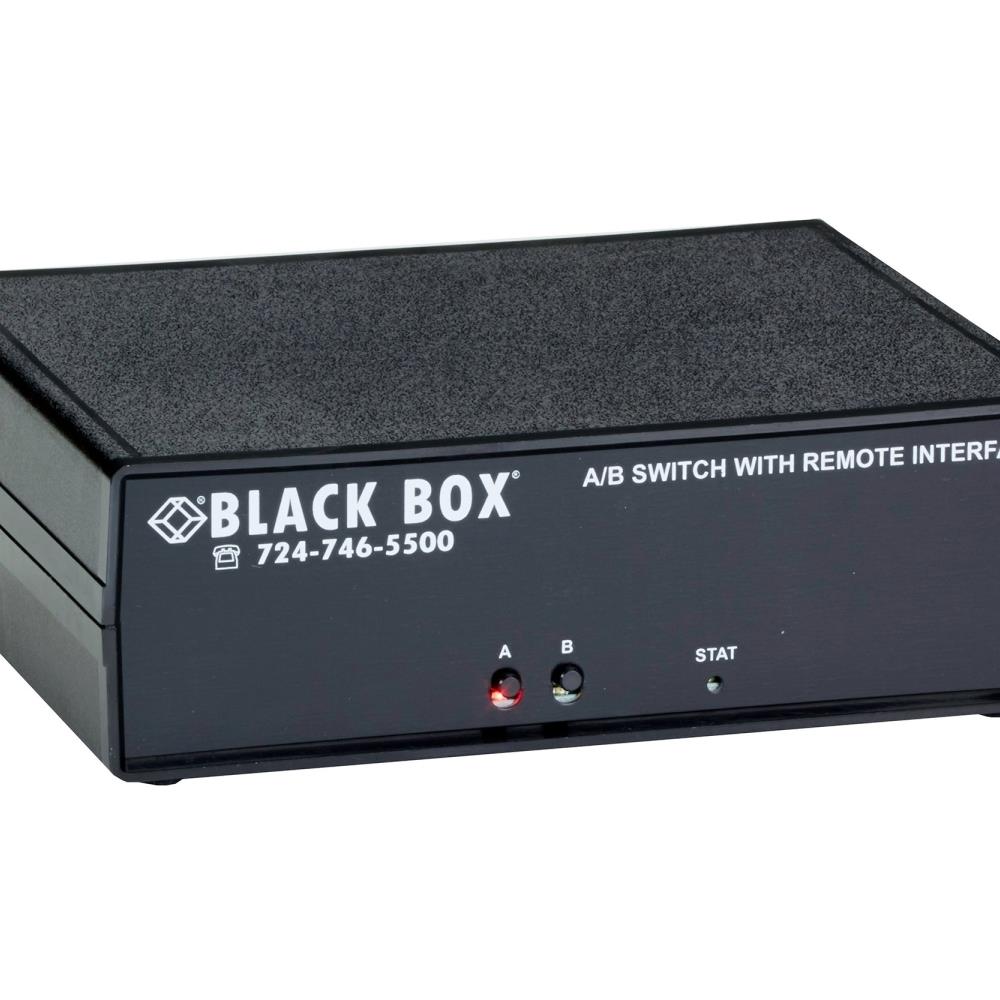

DB9 A-B Switch Latching Remote Control Dry Contact The Black Box SW1047A DB9 A/B Switch has a 6 position terminal strip on the rear of the unit that provides remote control capability and accepts external dry contact closures as inputs for remote A/B switching. Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Mbps. Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit. The connection state will be maintained if power fails or is removed.Features:Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 MbpsManual control of the switch port connection state is supported through pushbutton switches on the front of the unitThe connection state will be maintained if power fails or is removedConnecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A positionConnecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B positionIf desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B SwitchSpecifications:Connectors: A/B switch ports: (3) DB9 F; Serial control port: DB9 F; Remote control/status port: (1) 6-position terminal block; Power: (1) 3.5-mm power inputDimensions(H x W x D): 2.5 inch x 6.25 inch x 8.1 inch (6.4 x 15.9 x 0.6 cm)Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDCSwitching Speed Typical: 5 msec; Maximum: 10 msecWeight: 4 lb. (1.8 kg)
