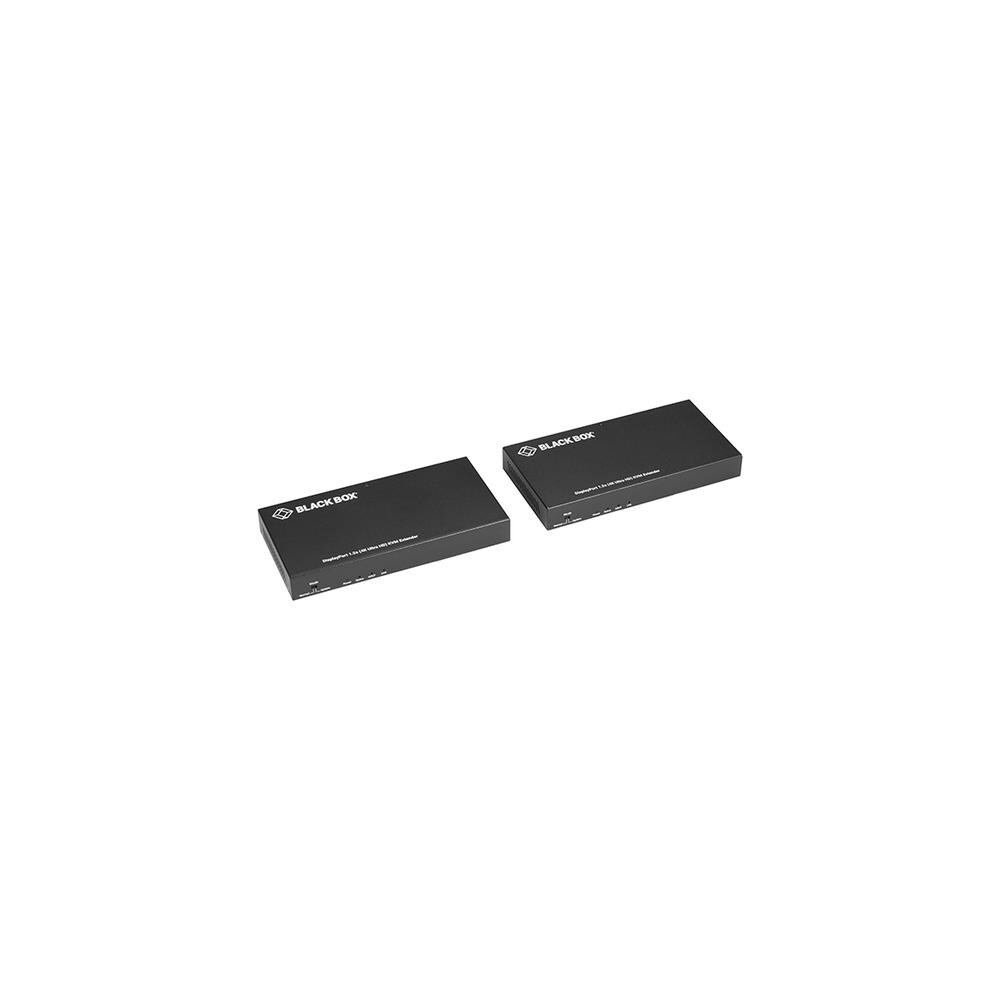

High-Performance KVM Extension - The 4K DisplayPort KVM Extender helps operators get their jobs done effectively and efficiently. It extends keyboard, mouse and UHD 4K video signals up to 100 meters over a single CATx cable. It also extends audio, power, RS-232 and USB 2.0. USB 2.0 Pass-Through - This extender's USB 2.0 pass-through feature allows users to control remote servers or physically inaccessible PCs, servers or workstations. And its bidirectional audio pass-through enables audio distribution in both directions. Only Requires One Power Supply - With integrated power, the extender only requires one power supply connected to TX to power both units. Its 12 V power supply is secured with a screw-on connector to prevent accidental disconnections. It also features an LED indicator light that shows if power is being supplied to units and the connection status of connected devices. Features Uncompressed UHD 4K video Extends UHD 4K video, audio, RS232 and USB 2.0 up to 100 meters over a single CATx cable DisplayPort 1.2a Supports 3840 x 2160 at 30 Hz and 2K at 60 Hz Only requires one power supply, receiver can be powered by the transmitter USB 2.0 pass through over HDBaseT Bidirectional analog audio pass through Offers transparent EDID and internal EDID options Specifications Approvals: AE CE, UL, FCC, RoHs Operating Systems: All OS Distance ( max.): 90m ( 100 m max.) Resolution: 3840x2160 30Hz, 1920x1200 60Hz Power: 12 VDC, 2 A, one power supply powers both TX and RX units via integrated 48-V PoE Temperature: Oeration - 0 to 45 degrees C, Storage - -20 to +70 degrees C Humidity: 10 to 90 , noncondensing Weight: 4.5 lbs
High-Performance KVM Extension - The 4K DisplayPort KVM Extender helps operators get their jobs done effectively and efficiently. It extends keyboard, mouse and UHD 4K video signals up to 100 meters over a single CATx cable. It also extends audio, power
