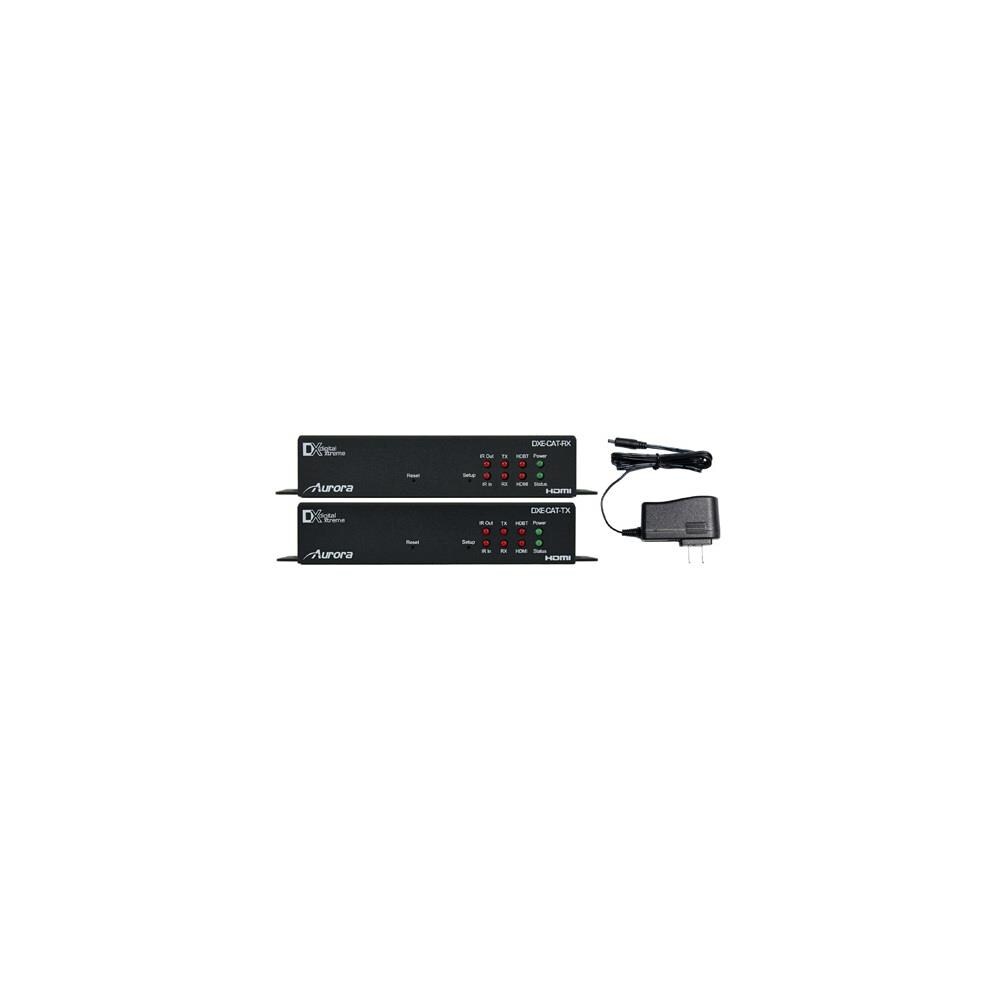

The DXE-CAT-S2 is part of Aurora's expanding Digital Xtreme Series and one of many HDBaseT CAT extender kits. The DXE-CAT-S2's powerful design provides usability and features not found anywhere else. Single-sided connections for LAN HDMI Control and Power provide a cleaner wiring and rack mounting solution. The Patents Pending design allows the system to be powered via POE or AC adapter from either side With a single CAT 5e/6/7 cable the DXE-CAT-S2 can go up to 330ft 1080p 60Hz 48bit Color depth with bi-directional RS-232 IR LAN up to 600ft with CAT 6a shielded cable at 24bit Color depth. The kit includes the DXE-CAT-RX2 DXE-CAT-TX2 and the PS0080-1 power supply. FeaturesTransmit HDMI up to 1080p 60Hz 48bit 330ft over one CAT 5e/6/7 cableTransmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cableTransmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6a shielded cableHDCP CompliantAll connectors on one side for easier installationBi-directional RS-232 IR LANPower both units from TX or RX side with wall power supply HDBaseT POE LAN POE Power-Over-Ethernet can power both TX RX without wall supplies Patents Pending Status LED for all connections on frontVarious mounting optionsComes in a variety of models for different features savingsSpecificationsHDMI Compliance: HDMI 3DHDCP Compliant: YesMax Resolution: 4K 30Hz 340MHz Mounting: Wall mounting tabs included Rack mount bracket included Power Supply: 24V 0.65A DC 5WattsOperation Temperature: 32 - 104 and deg;FStorage Temperature: -4 - 140 and deg;FRelative Humidity: 20 - 90 percent RH no condensation Weight: 1 lbs
The DXE-CAT-S2 is part of Aurora's expanding Digital Xtreme Series and one of many HDBaseT CAT extender kits
Single-sided connections for LAN HDMI Control and Power provide a cleaner wiring and rack mounting solution
