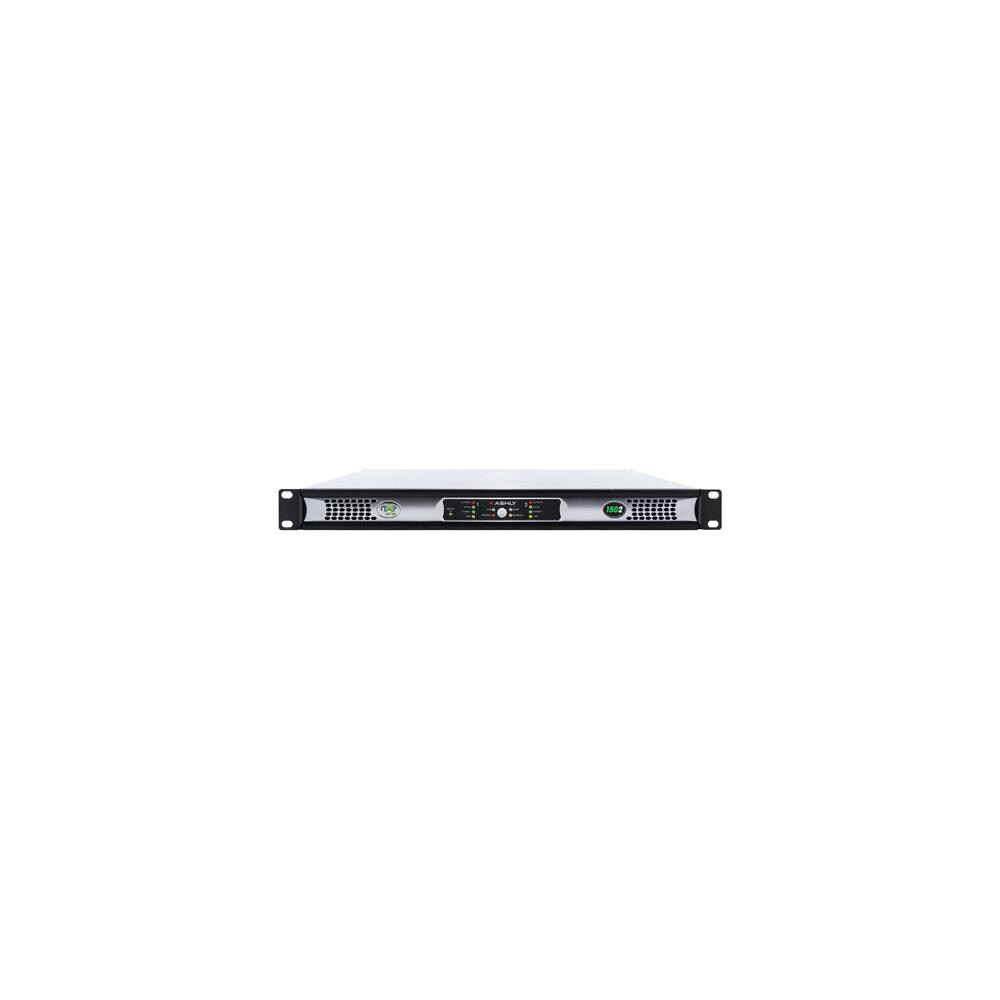

Introducing the Ashly series of nX, nXe, or nXp power amplifiers. These products use state of the art, light weight, high power, high efficiency switching technology developed through years of design and field testing. nX amplifiers are three series, designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers as well as schools, store fronts,and worship spaces. three amplifier series, NX offers 2 or 4-channel models as NX ( base model series), NXE ( networkable), or NXP ( networkable + DSP).Class-D Switching Amplifier Technology.NXP features a universal switch-mode power supply with Power Factor Correction ( PFC) that operates from 70VAC to 270VAC.Multi-Mode Operation.Selectable Outputs allow you to choose the desired output mode on each channel. Set the DIP-switch configuration for Low Impedance ( 2, 4, and 8 Ohm), or 25V, 70V, or 100V Constant Voltage and you're set to go.Energy Efficiency.NXP has power-saving Ashly EMS ( Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt ( defeatable).Ethernet Control using Protea NE software.Also, serial data control by Ashly programmable remotes or third party controllers, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, optional Dante, CobraNet, or AES3 digital audio capability ( factory-installed).Real-Time Clock with Event Scheduler.Assign automatic execution of selected functions and tasks. The event scheduler is programmed from software and stored in the amplifier.Ashly Remote Control via iPad app.Use our Ashly Remote app for custom design of secure wireless control over network.32-bit SHARC DSP Processing at 48kHz or 96kHz Sample Rates.Comprehensive software control of digital signal processing, matrix and auto-mixing, built-in signal generator for test tone and noise-masking, swept output load impedance monitoring. Use Ashly Remote iPa
Introducing the Ashly series of nX, nXe, or nXp power amplifiers. These products use state of the art, light weight, high power, high efficiency switching technology developed through years of design and field testing. nX amplifiers are three series
Selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel
