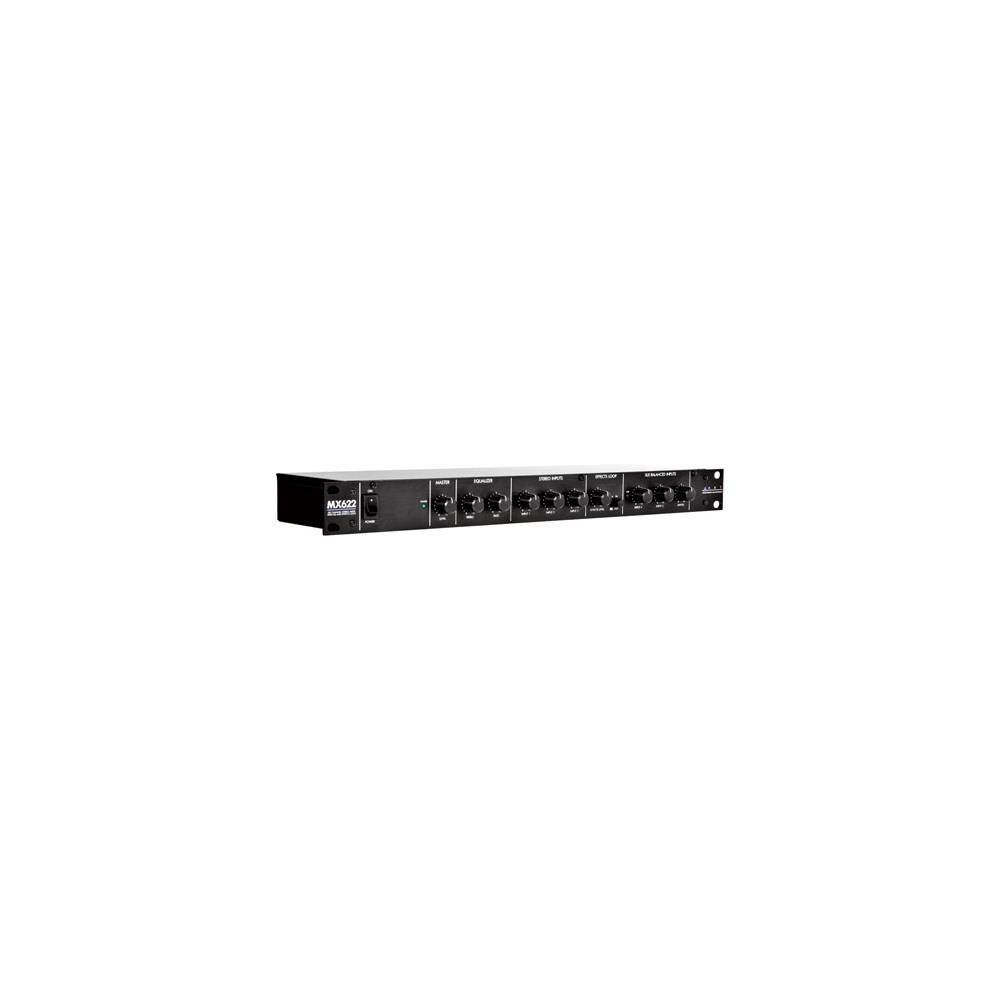

Applied Research and Technology ART-MX622 Pro Audio 6 Channel Stereo Mixer with EQ and EFX Loop

The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop ( mono send with stereo return), independent stereo record outputs, stereo TRS -1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation. Features. Pro Audio 6 Channel Stereo Mixer with EQ and EFX Loop. Three Balanced XLR Inputs Switchable Mic/Line Level. Three Stereo RCA Inputs with Separate Level Controls. Level Control and Clip Indicators. Selectable 15-volt Phantom Power for Mic Channels. Balanced TRS -1/4-inch Main Output Jacks with Master Level Control. Versatile Two-Band Master EQ. Separate Stereo Record Outputs. Effects Loop with Level Independent Level Control. Input Connections: XLR-F balanced/-inch unbalanced/3 pairs stereo RCA. Output Connections: TRS balanced -1/4-inch/-1/4-inch unbalanced/RCA. Input Impedance: 600/22K Ohms mic/line XLR inputs/10K Ohms RCA inputs/22K Ohms -1/4-inch effects returns. Output Impedance: 50 Ohms -1/4-inch main outputs/1K Ohms RCA record outputs/100 Ohms effects output. Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs/+20dBu RCA line inputs/+20dBu Effects inputs. Maximum Output Level: +24dBu balanced main outputs/+20dBu RCA record outputs/+20dBu Effects output. Phantom Power: +15 Volts DC. Maximum Gain: 56dB/26dB mic/line/26dB RCA inputs. Signal to Noise Ratio: >90dB typical. THD:.01 Percent Typical. Equalizer Range: +/-12dB 100Hz and 10KHz. Power Requirements: USA - 105 to 125 VAC/50-60Hz, 15 Watts typical. Dimensions : 1.75 x 19.0 x 6.0. Dimensions : 44.5 x 483 x 152 Specifications. Weight: 6.2 lbs
