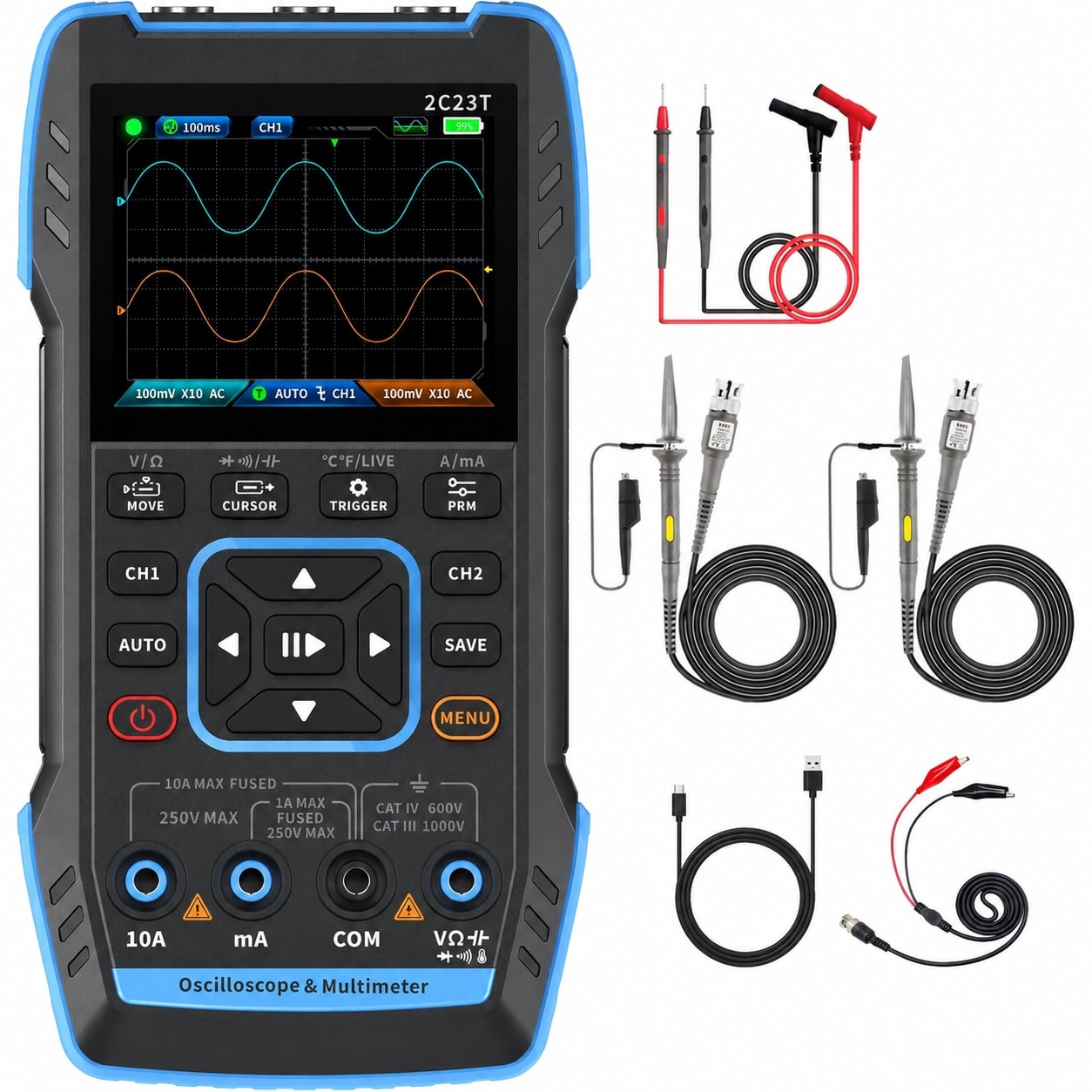

Designed for engineers, students, and electronics enthusiasts, this multifunctional handheld device integrates a digital oscilloscope, multimeter, and DDS signal generator to streamline your testing and analysis workflow. The oscilloscope features dual channels with a 10 MHz bandwidth, 50 MSa/s sampling rate, and 32 kb record depth, allowing for accurate waveform capture and automatic measurement. The multimeter mode offers 10000-count precision, measuring AC voltage up to 750 V, DC voltage up to 999.9 V, current up to 9.999 A, resistance up to 99.99 MΩ, capacitance up to 99.99 mF, and continuity for comprehensive diagnostics. The DDS generator outputs seven waveform types up to 2 MHz, perfect for signal testing and simulation. With a convenient one-click save function, waveform images
This versatile 3-in-1 device combines a digital oscilloscope multimeter and DDS signal generator in a compact handheld unit making it ideal for professionals students and electronics hobbyists seeking multifunctional testing tools
Featuring dual channels with a 10 MHz bandwidth and a 50 MSa/s sampling rate the oscilloscope mode allows for detailed waveform analysis automatic measurements and supports waveform image storage and export for easy data management
The multimeter mode offers precise measurement capabilities with 10000 counts supporting AC voltage up to 750 V DC voltage up to 999.9 V current up to 9.999 A resistance up to 99.99 MΩ capacitance up to 99.99 mF and continuity testing
The DDS signal generator function outputs seven selectable waveforms including sine square triangle full half noise and DC with a maximum frequency of 2 MHz and adjustable steps down to 1 Hz for flexible signal creation
A convenient one-click save and screening function lets you upload saved waveform images to your PC via data cable enabling comparison of reference and measured waveforms on the same screen for efficient troubleshooting
Built with FPGA MCU and ADC hardware architecture this device features high-voltage protection a clear 2.8 inch LCD display and a lightweight design measuring 6.58 x 3.35 x 1.34 inches and weighing only 10.24 ounces
