The Anqtovp UT208B digital clamp meter is designed for measuring AC and DC electrical values across a broad range of testing tasks. It measures AC and DC current up to 1000 A and AC and DC voltage up to 1000 V, along with resistance, capacitance, duty cycle, temperature, continuity and diode values. The meter also measures AC current frequency response, current frequency, high voltage frequency and low voltage frequency. Inrush current mode captures transient current for readings that occur during current changes.This True RMS clamp meter has a 6000-count display and auto-ranging operation with autoscale memory. Relative mode, zero mode, data hold and MAX/MIN functions provide multiple ways to review or compare readings. For voltage testing, the meter includes a low-pass filter ACV function, LoZ ACV and input impedance for ACV and DCV. NCV detection is paired with a multi-segment display and audio and visual alarm.The meter has a 42 mm jaw opening for clamp-on measurements, a large LCD screen, a nonslip rubber grip and a design that is easy to carry. An integrated flashlight, auto backlight and wake-up function support access and visibility during use. The stated safety ratings are CAT III 1000 V and CAT IV 600 V. Use the included test leads or K-type thermocouples according to the measurement being performed and the instructions provided with the meter.The package includes one UT208B clamp meter, one pair of test leads, one pair of K-type thermocouples, one carrying case, one packaging box, one paper manual and one electronic manual. The product dimensions are 12.52 x 5.75 x 2.8 inches and the product weight is 1.92 pounds. The package dimensions are 13.1 x 5.7 x 2.8 inches and the package weight is 2.01 pounds. One-to-one user support is available seven days and 24 hours, with customer service contact provided for use-related problems.
The UT208B clamp meter measures AC and DC current up to 1000 A AC and DC voltage up to 1000 V resistance capacitance duty cycle temperature continuity and diode values
Inrush current mode captures transient current while AC current frequency response current frequency high voltage frequency and low voltage frequency functions support varied testing needs
True RMS measurement 6000-count display and auto ranging provide readings with autoscale memory data hold MAX and MIN functions relative mode and zero mode
NCV detection uses a multi-segment display with audio and visual alarm while the low-pass filter ACV and LoZ ACV functions provide additional voltage testing options
The meter has a 42 mm jaw opening large LCD screen nonslip rubber grip flashlight auto backlight and wake-up function with CAT III 1000 V and CAT IV 600 V safety ratings

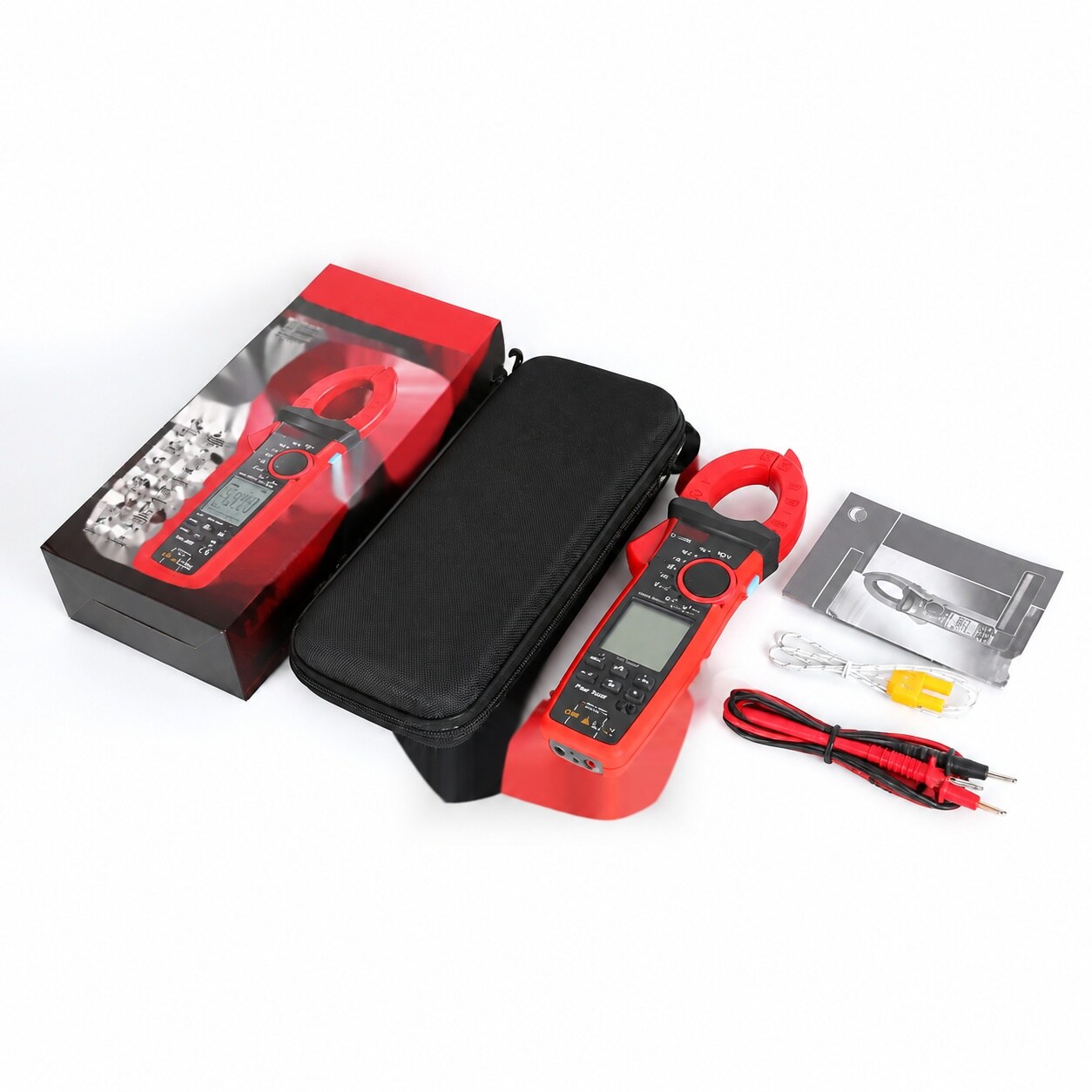

The value pack includes one UT208B clamp meter one pair of test leads one pair of K-type thermocouples one carrying case one packaging box one paper manual and one electronic manual
