This versatile 3-in-1 instrument integrates a dual-channel oscilloscope, digital multimeter, and DDS signal generator in a lightweight handheld unit measuring 10.16 x 5.24 x 3.46 inches and weighing just 1.74 pounds. The oscilloscope offers 10MHz bandwidth, 50MSa/s sampling rate, 32kb record depth, and supports automatic measurement with multiple trigger modes and waveform storage. The multimeter mode features 10000 counts, measuring AC voltage up to 750V, DC voltage up to 999.9V, current up to 9.999A, resistance up to 99.99MΩ, capacitance up to 99.99mF, and temperature from -55°C to 1300°C. The signal generator outputs seven waveform types with adjustable frequency up to 2MHz, amplitude, and duty cycle. A high-resolution 2.8-inch LCD display and advanced hardware architecture ensure
This multifunctional device combines a dual-channel oscilloscope digital multimeter and signal generator in a compact handheld design making it perfect for professionals schools factories enthusiasts and home use

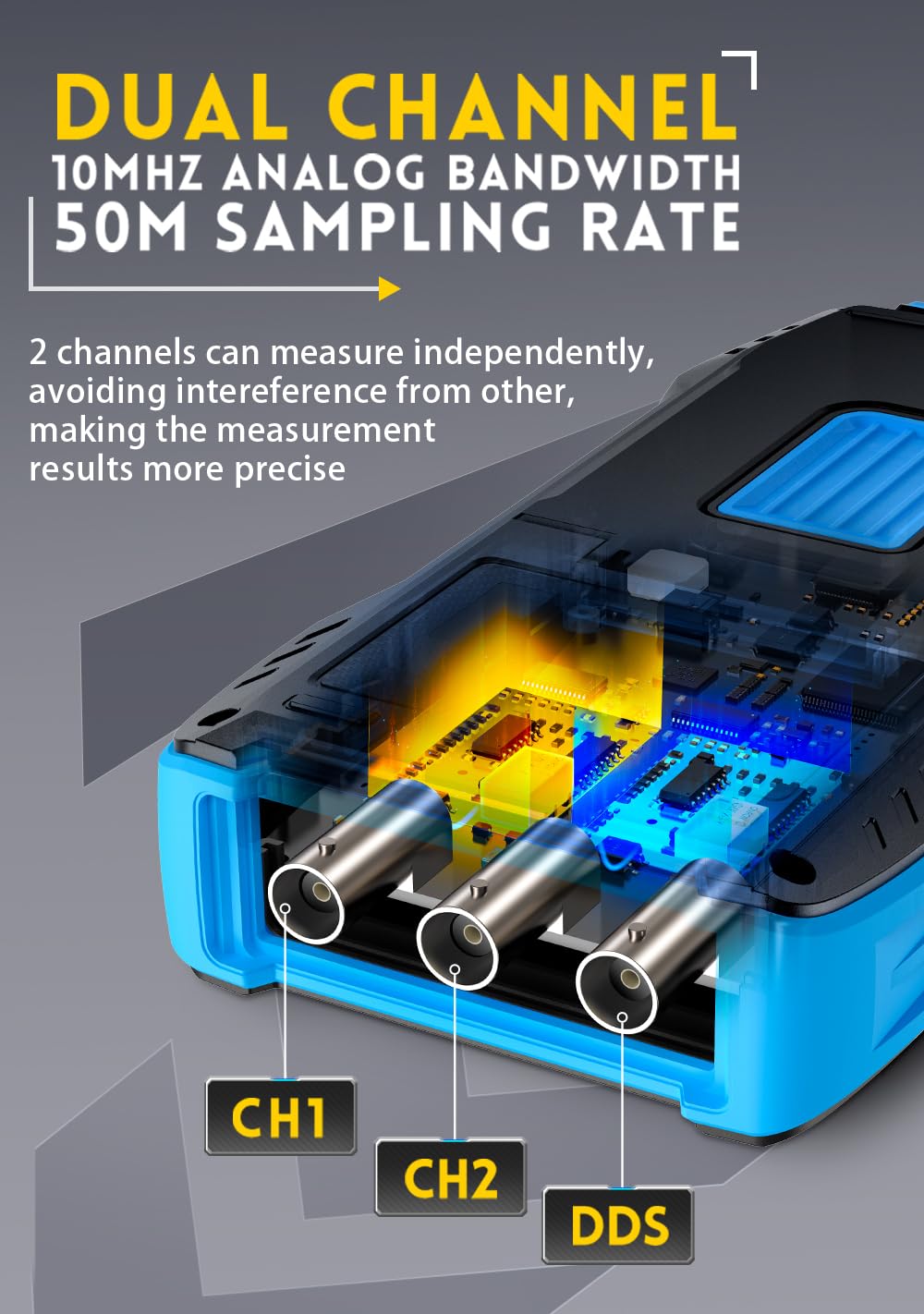

The oscilloscope mode features 10MHz bandwidth 50MSa/s real-time sampling rate 32kb record depth ±400V measurement voltage automatic measurement multiple trigger functions and waveform storage for detailed signal analysis
The digital multimeter mode offers 10000 counts with precise measurements for AC voltage up to 750V DC voltage up to 999.9V current up to 9.999A resistance up to 99.99MΩ capacitance up to 99.99mF and temperature ranging from -55°C to 1300°C
The signal generator mode provides seven selectable waveforms including sine square triangle full half noise and DC with adjustable output frequency up to 2MHz amplitude and duty cycle for versatile testing applications
A 2.8-inch HD LCD display with 320x240 resolution ensures clear readings while the advanced FPGA MCU and ADC hardware architecture with high-voltage protection enhances reliability and user safety
Data storage and export are simplified with one-click save and screening functions allowing saved images to be uploaded to a PC via Type-C connection for convenient analysis and record keeping
