Build a cable railing layout with this 40-piece set of threaded stud tension end fittings for 1/8-in wire rope cable. The fittings are intended to anchor cable at one end of a run, while a separate tensioner is needed at the opposite end. They are suitable for 2x2 to 4x4 posts and can be used with wood, steel, or aluminum posts in indoor or outdoor deck railing applications.Each terminal stud has a 4-in thread length, a 1/4-in-20 thread size, a 1/4-in drill hole size, and a 6-in overall length. The fittings are made from T316 marine-grade stainless steel, with high tensile strength, anti-fatigue strength, weatherproof construction, and corrosion resistance for coastal installations. Their stainless steel material allows use indoors or outdoors with wood or metal posts, and the source information states that the cable railing system requires hardly any maintenance.Installation requires a special swaging tool to secure each fitting on the wire. A hydraulic crimper tool and cable cutter can be used for this work. The cable railing kits also support angled runs in addition to level runs. For an invisible cable railing system installed on a stairway or another angled application, a 1/4-in inside-diameter 30-degree angle washer is recommended. The set is compatible with 1/8-in T316 stainless steel cable, identified in the source information as B0C2BX4BT2.The package contains 40 6-in threaded terminal studs, with a washer and lock nut included for each fitting, plus 1 spanner multi-tool. The product weight is 1.52 kg and the listed product dimensions are 17.30 x 13.89 x 3.99 cm. The package weight is 1.71 kg and the package dimensions are 20.32 x 19.05 x 5.08 cm. If you are not satisfied within one month of purchase, the source information states that a refund or replacement will be provided.
Designed to anchor 1/8-in cable at one end of a run on 2x2 to 4x4 wood steel or aluminum posts for indoor or outdoor deck railing projects
Each threaded stud has a 4-in thread length 1/4-in-20 thread size 1/4-in drill hole size and 6-in overall length for compatible cable railing layouts
Made from T316 marine-grade stainless steel with high tensile strength anti-fatigue strength and weatherproof corrosion resistance for indoor outdoor or coastal installations

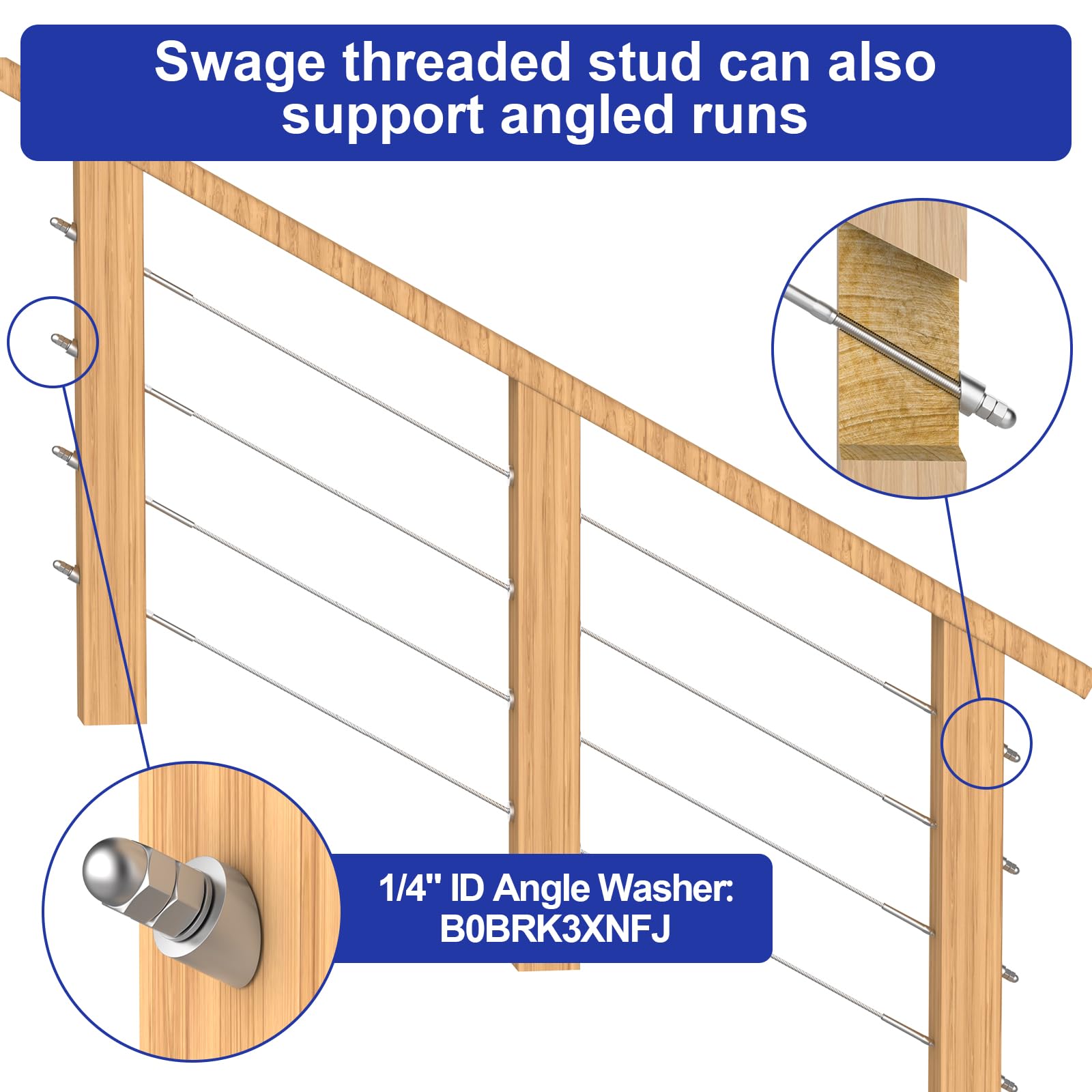

Requires a special swaging tool to secure the fitting on the wire and supports angled runs when paired with a 1/4-in ID 30-degree angle washer

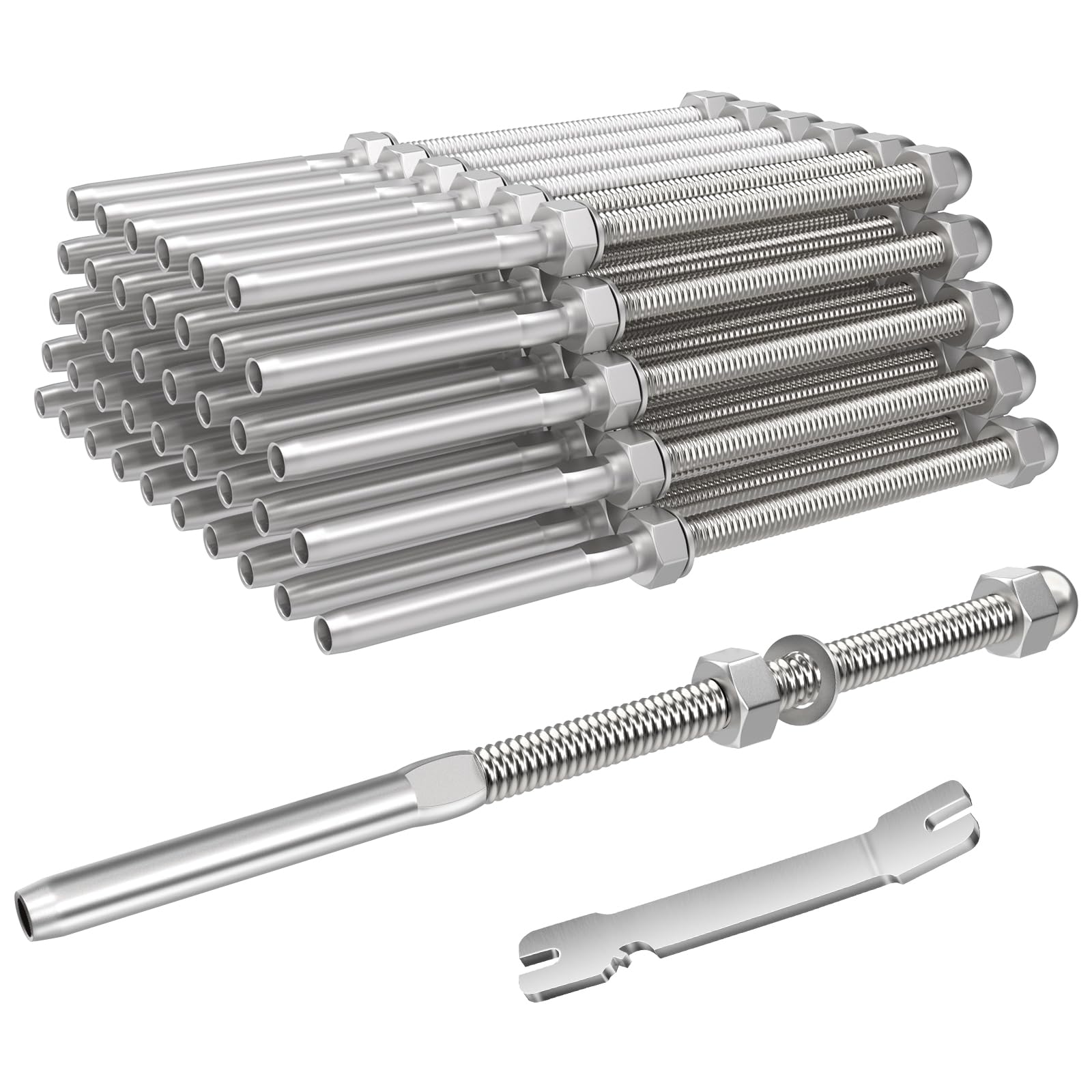

Package includes 40 6-in threaded terminal studs with washers and lock nuts plus 1 spanner multi-tool for cable railing assembly
Use these end fittings with 1/8-in wire rope cable and a tensioner at the opposite end of each run; hydraulic crimper tool and cable cutter are also available
