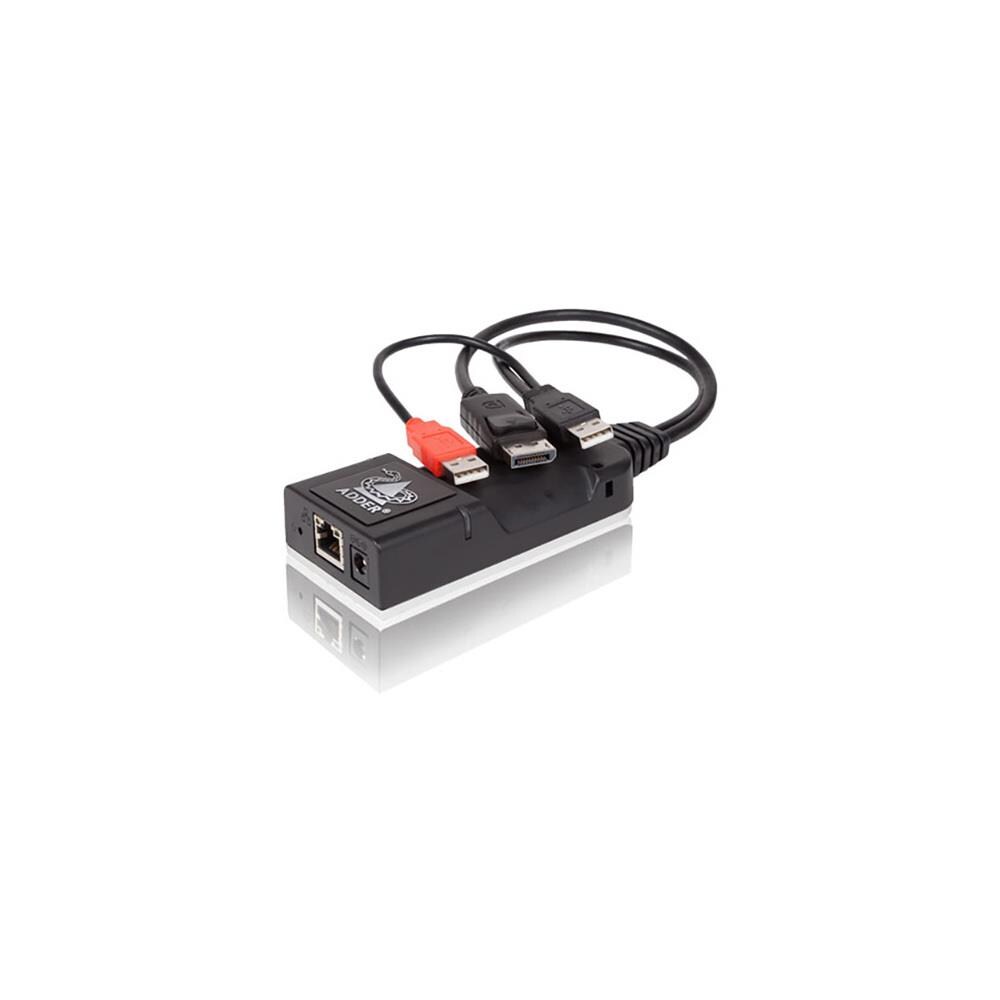

The ADDERLink INFINITY 100T ( ALIF100T-DP) is a DisplayPort zero-U, high performance, IP-based KVM ( Keyboard, Video, Mouse) extender and/or matrix that enables the use of standard IT infrastructure to extend computers away from the user environment. Features. Zero-U. Use your existing network. USB powered. Low power consumption. Supports multiple video resolutions. Easy retrofit into existing infrastructure. Plug and play Includes. ALIF100T-DP. Adder Fixing Kit. Quick Start Guide Specifications. Operating Temperature: 0 to 50 degrees C. Storage Temperature: -10 to 60 degrees C. Storage and Operating Relative Humidity: 10-90 Percent non-condensing. Altitude: < 3000m MTBF: >500,000 hours. USB Power: 2 x USB2.0 ( 2x 500mA 5V) 5W. External Power: 5VDC, 1A. Typical Power Consumption: 3W. BTU: 10.2BTU/hr. Materials: ABS and aluminum construction. Computer: DVI-D or DisplayPort, USB typeA x 2. Ethernet: 1 x 8p8c ( RJ45). Power: 2.5mm socket. USB: USB2.0 full and low speed ( No HS support). Keyboard, mouse and touch USB device seen as: 7 or 13 port hub. Max Video Resolution: Up to 1920x1200 60Hz. Audio: Line in/out USB audio 2 channel 16bit 48KHz. DisplayPort Audio: None. Ethernet: 1GbE ( No 10/100 support). Cable types recommendations: Cat5e and above. Cable length rules: Ethernet speci cations rules apply 100 meters maximum run
The ADDERLink INFINITY 100T ( ALIF100T-DP) is a DisplayPort zero-U, high performance, IP-based KVM ( Keyboard, Video, Mouse) extender and/or matrix that enables the use of standard IT infrastructure to extend computers away from the user environment
Zero-U
