The AUTOOL OBD II Protocol Detector Breakout Box is a powerful diagnostic tool designed to provide professional engineers with straightforward access to a vehicle data bus line. This versatile kit allows for testing OBD voltages, powering on-board computers, and monitoring communication signals without compromising the integrity of the original wiring. The input jack layout fully simulates the standard 16-pin OBDII interface, enabling users to perform intuitive tests quickly when a scanner is communicating with the vehicle. Featuring built-in 4mm banana plug jacks, this device supports the connection of various diagnostic tools, car recorders, or navigation systems to analyze vehicle data through the output interface. It is highly capable of detecting multiple protocol types including K-line, L-line, CAN bus, and PWM protocol lines for both gasoline and certain diesel signals. The package includes a 5-foot battery alligator clip cable perfectly suited for 12V power supplies and four sets of universal colored jumper cables that support connecting multiple diagnostic devices simultaneously for flexible wiring. This functionality is essential for complex programming and maintenance tasks where multiple data streams must be analyzed. Built for durability and precision, the breakout box ensures stable data transmission and safe circuit testing. This product is backed by a three-year warranty and lifetime technical support to ensure customer satisfaction and long-term reliability for all professional automotive diagnostic needs.
This breakout box provides immediate access to all sixteen pins of the OBDII data link connector to monitor vehicle bus communication and voltage status easily.
The detector supports multiple protocol types including K-line L-line CAN bus and PWM to ensure comprehensive signal testing for both gasoline and diesel vehicles.

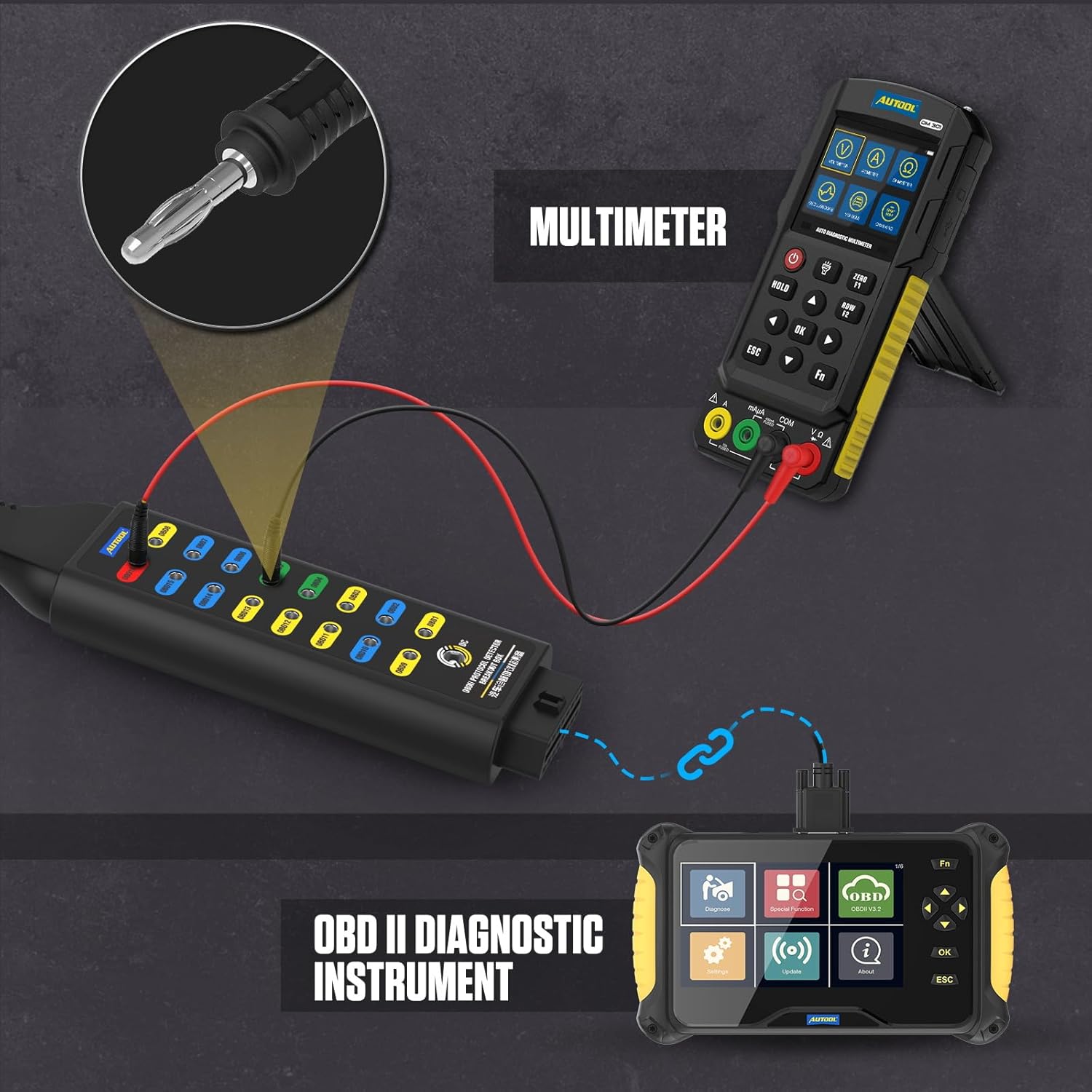

Built-in four millimeter banana jacks and universal colored jumper cables allow for the simultaneous connection of multiple diagnostic tools and programming devices.
The included five foot battery alligator clip cable enables reliable power supply to the on-board computer for consistent testing and data analysis during maintenance.
AUTOOL offers a three year warranty and lifetime technical support to ensure professional users receive prompt assistance and reliable product performance.
