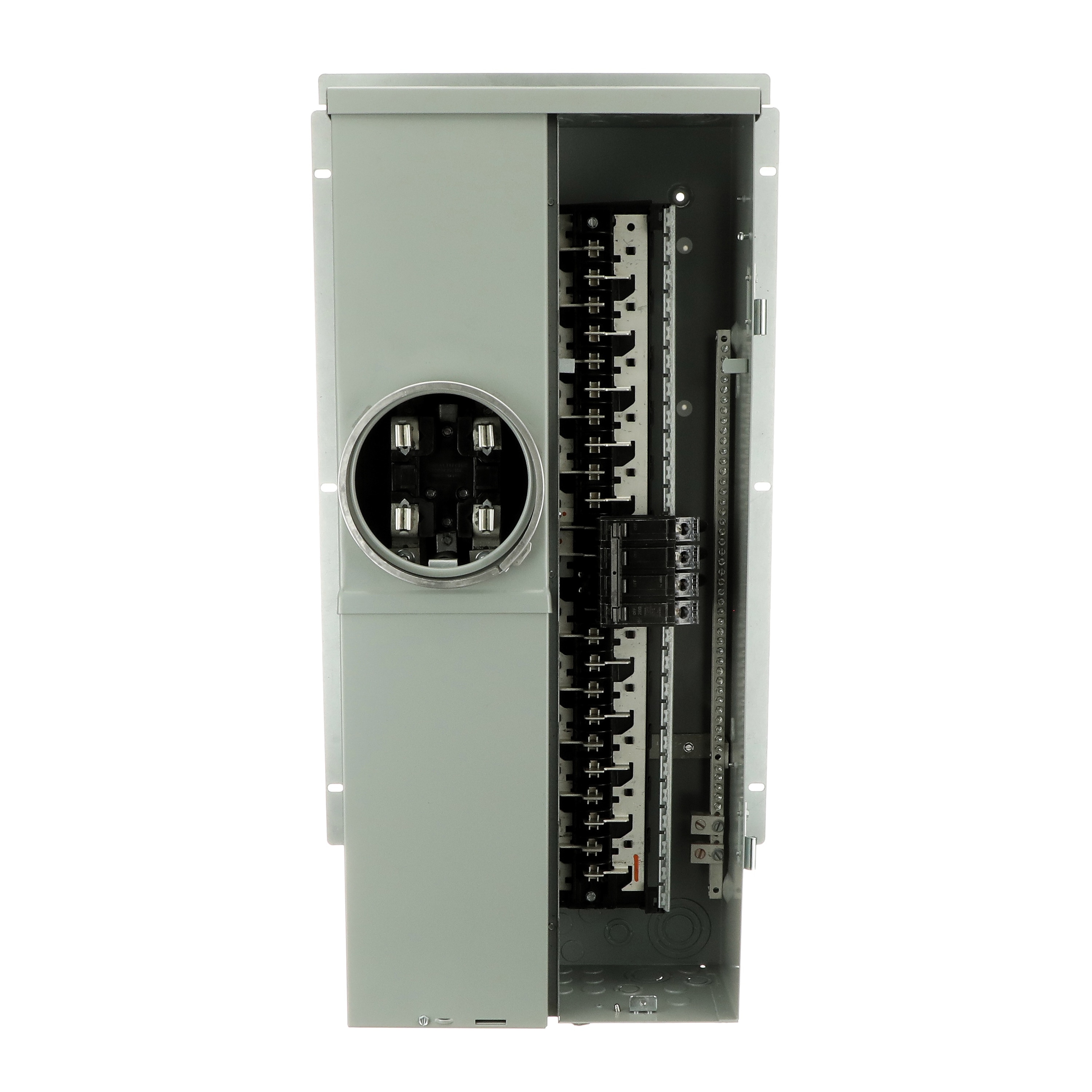

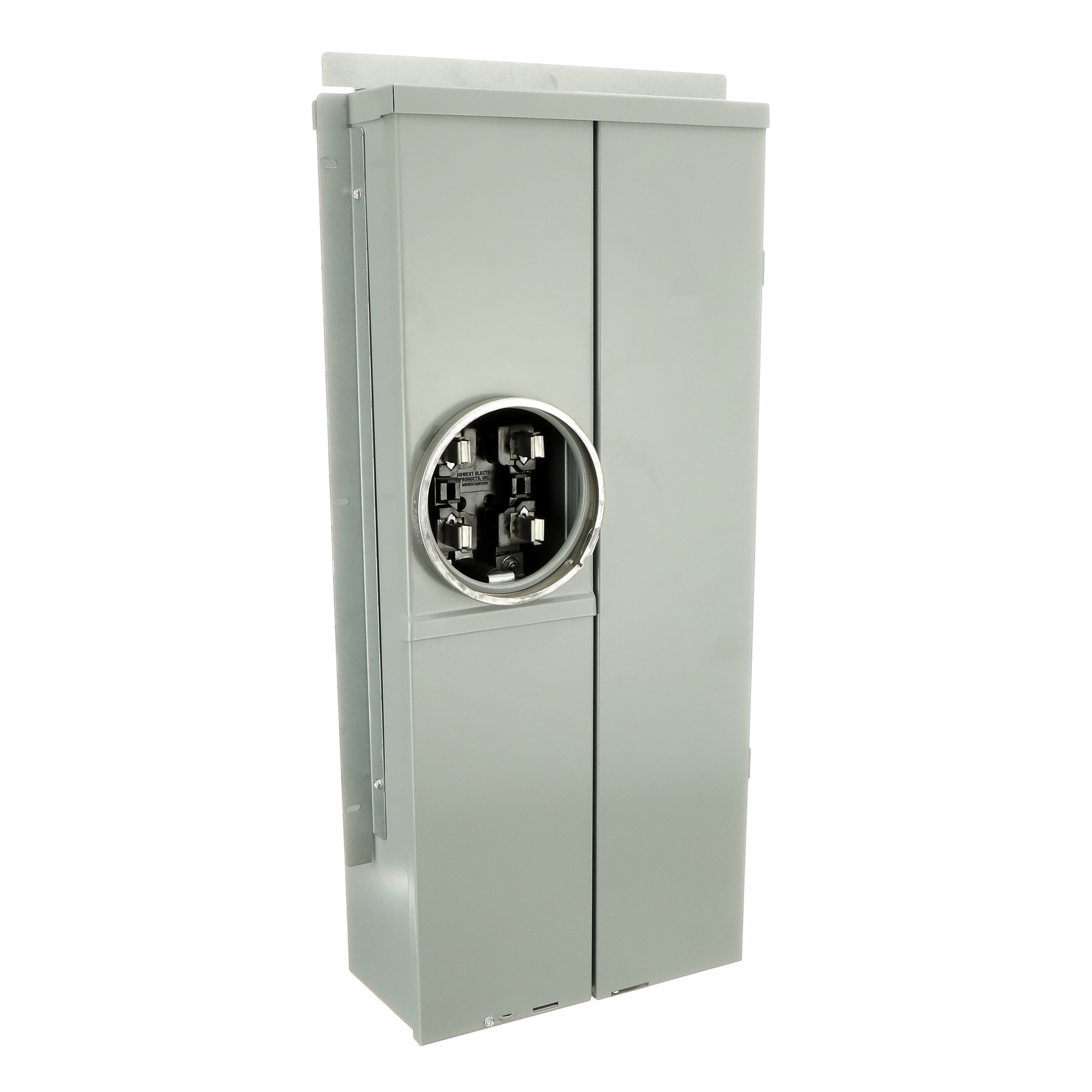

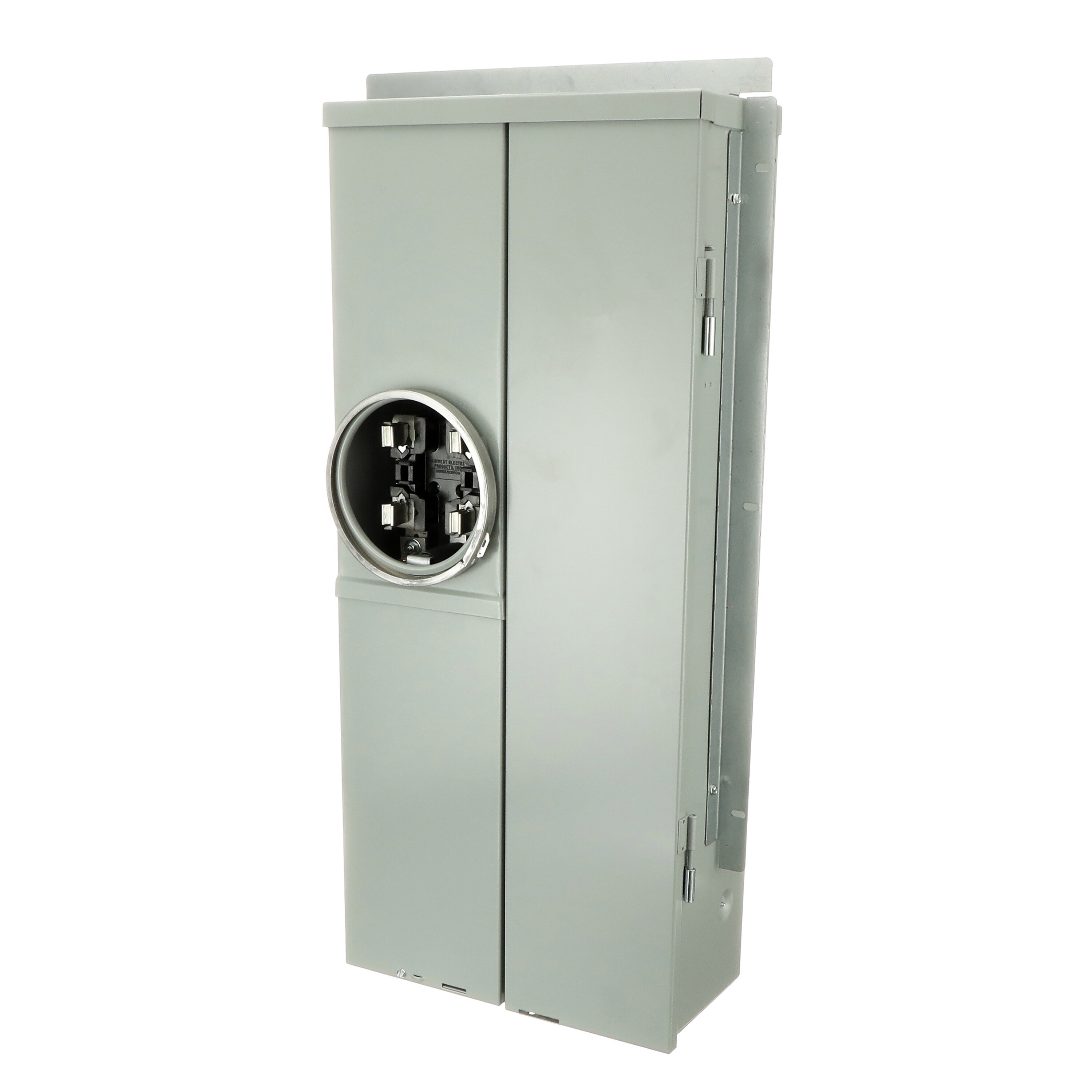

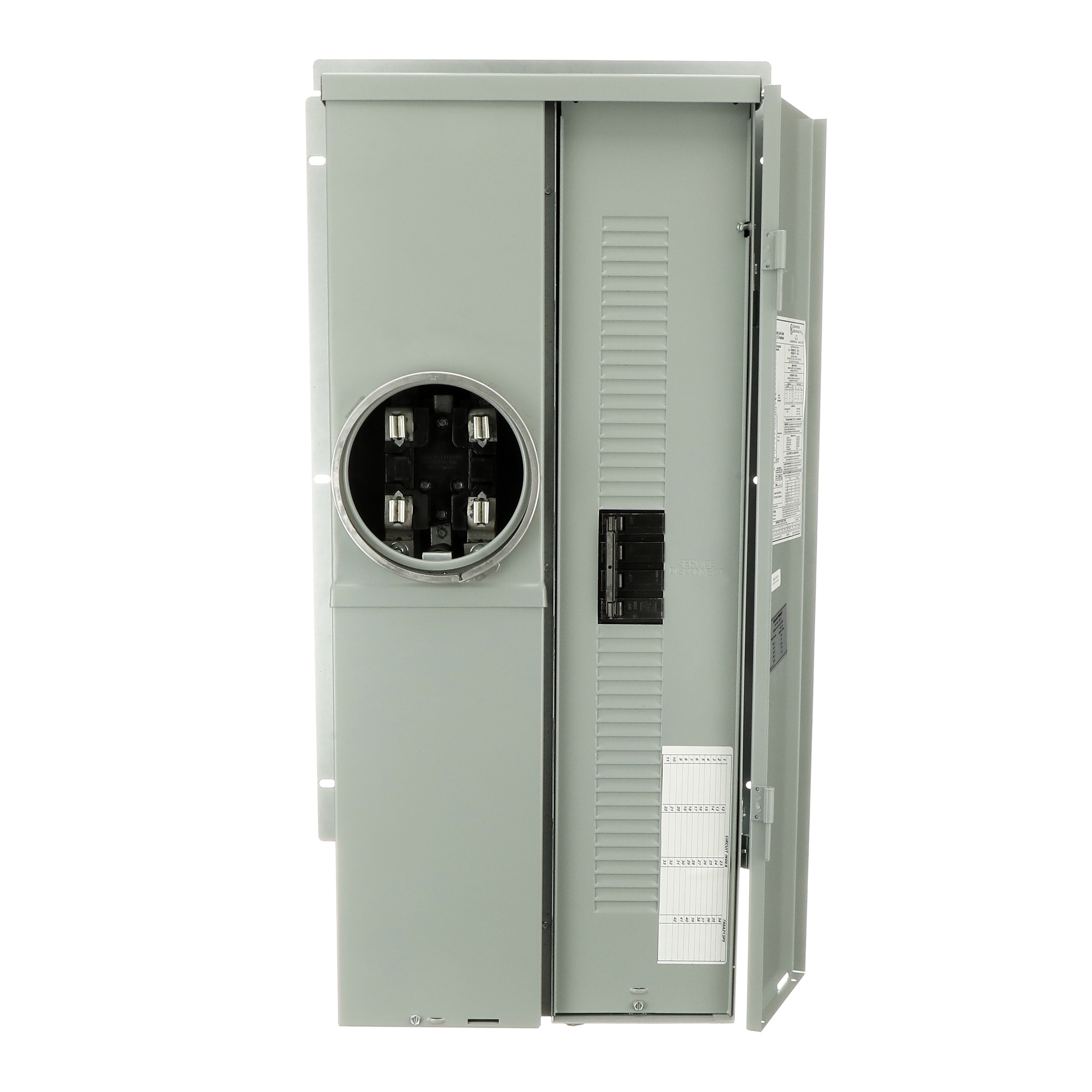

This ABB Reliahome T-Series 200 Amp 20-Space 40-Circuit Outdoor Main Breaker Meter Combo is designed to be installed as fast and efficiently as possible. This side by side 'style unit includes a single gang, ring type, 4-jaw meter socket. It is designed for semi-flush install with overhead/underground feeds. It also offers a solid, extra-long, neutral bar and a single-piece copper buss bar for excellent conductivity. This load center provides a side-opening, removable door. It allows generous wiring room for ease of installation.
Side by Side style, semi-flush install, Overhead/Underground feed Meter Combo
Compatible with ABB and GE THQL, THHQL Standard, Pigtail AFCI, GFCI and DFCI breakers
200 Amp main breaker installed
Must order TGK12 Ground Bar separately
Ring style meter socket design
Single Gang, 4 Jaw connection
No Bypass
NEMA 3R, UL Listed, ANSI Certified
Single Phase, 3 wire, 120/240 VAC with max 22kAIC
