The ABB ReliaHome P-Series Main Lug is designed to be installed as fast and efficient as possible. This unit can be converted to a Main Breaker. The P-Series units are made of galvanized metal resisting rust and include features such as plug on neutral, factory installed ground terminations, elevated neutral bars with backed out screws, tangential knockouts, one tool installation, and self leveling center keyhole mounts making initial install quick and painless. The unit also has field extendable neutral bars and an aluminum bus bar. These units are single phase, 3 wire and for use with 120/240 VAC systems. They are UL listed and outdoor NEMA 3R certified. The ReliaHome P-Series load center is compatible with ABB and GE THQL Q-Line breakers.
Plug On Neutral for less wiring and quicker installation
Elevated neutral bars with backed out screws
Aluminum bus bar
Self leveling center keyhole mount and tangiental knockouts for easier install
Factory installed TGK12, order TGK24 separately
Single Phase, 3 wire, 120/240 VAC with max 22kAIC
UL Listed, NEMA 3R outdoor surface mount
Compatible with ABB and GE Q-Line THQL Standard, AFCI, GFCI and DFCI breakers

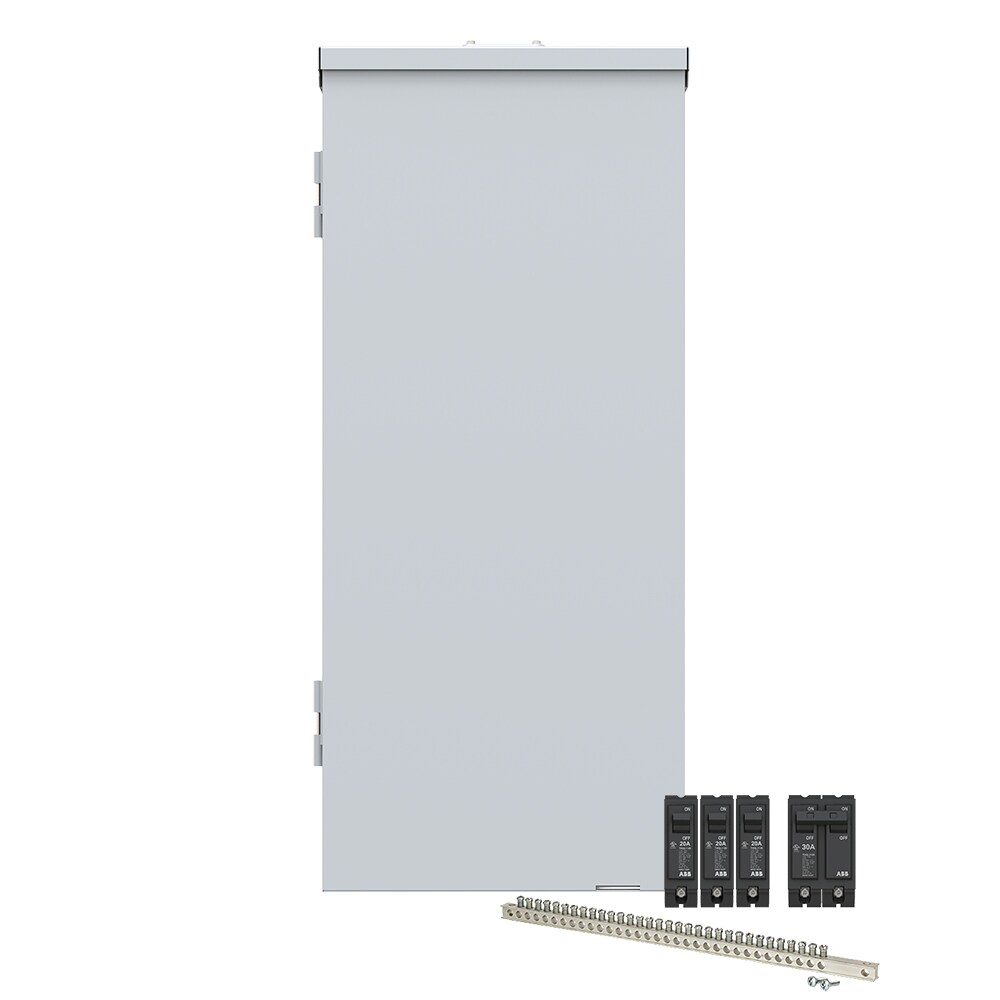

Kit includes 3 THQL1120 20A single pole, 1 THQL2130 30A double pole breakers and a TGK32A 32 space ground bar
