A.O. Smith Signature 100 40-Gallon Tall 9-year Warranty 40000-BTU Natural Gas Water Heater
Item #962538 |
Model #G9-T4040NVR
Shipping
Unavailable
Delivery
5,000+ available
Check Fee in Cart.
Delivers the ideal amount of hot water for households with 3 to 4 people when sized appropriately
Features an environmentally-friendly 40,000 BTU gas burner that delivers 80 gallons in the first hour

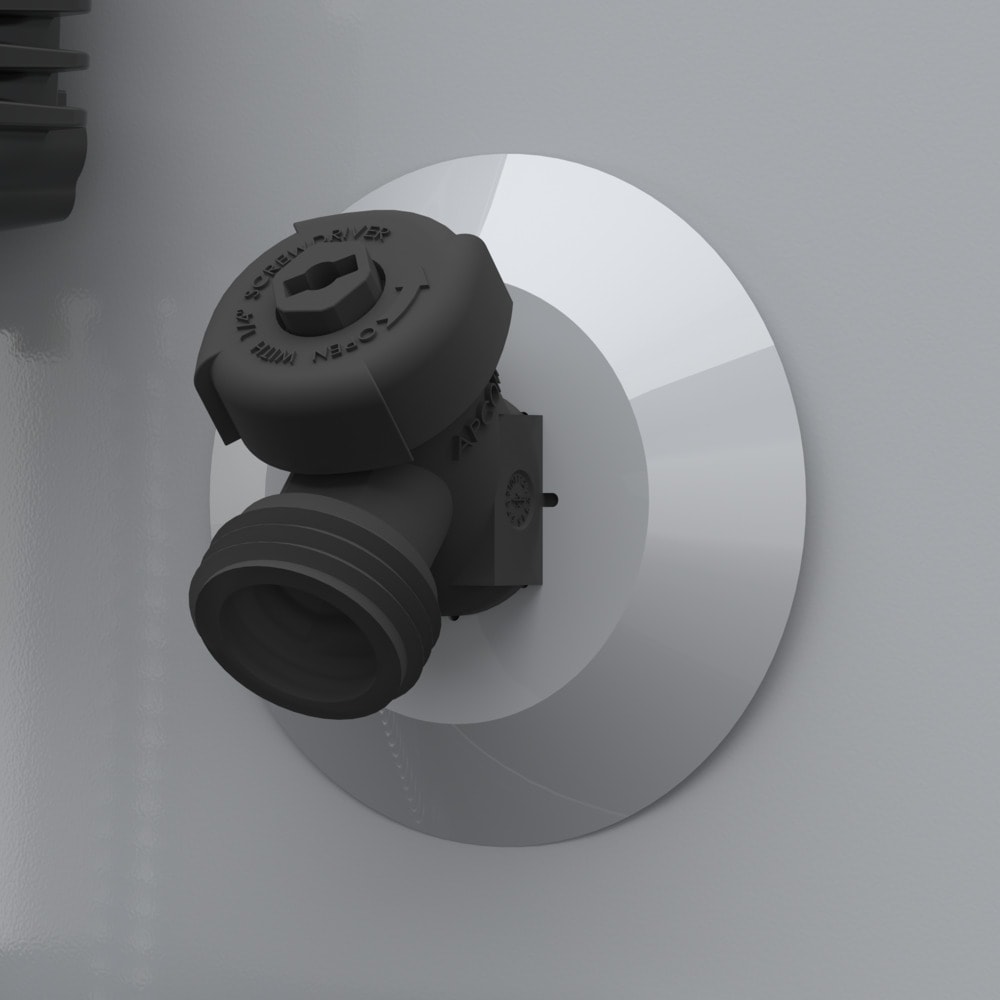

Electronic gas valve provides precise temperature control for optimum hot water delivery
Self-diagnostic electronic gas control incorporates an LED status indicator that monitors and reports on the system's operational status
Built-in safety system reduces the risk of accidental flammable vapor ignitions
Tall, slim 61.75-in H x 20-in diameter profile enables easier installation in narrow spaces
Tank Guard® provides advanced tank protection that extends the life of your gas water heater
High-altitude certified from 0 ft to 10,100 ft
Provides peace of mind with a 9-year limited tank and parts guarantee and a 2-year limited labor warranty
General | |||
|---|---|---|---|
Type | Tank | Power Source | Gas |
Fuel Type | Natural gas | Use Location | Indoor |
Grade | Residential | Series Name | Signature 100 |
Ignition Type | Piezo | Venting Type | Atmospheric |
Vent Type | Type B double wall | ||
Dimensions | |||
|---|---|---|---|
Nominal Capacity (Gallons) | 40 | Weight (lbs.) | 138 |
Rated Storage Capacity | 38-Gallon | Width (Inches) | 20 |
Vent Diameter(s) | 3-in | Family Size | 4 |
Depth (Inches) | 20 | Water Connection Size | 3/4-in |
Diameter (Inches) | 20 | Insulation Thickness (Inches) | 2 |
Height (Inches) | 61.75 | ||
Features | |||
|---|---|---|---|
Point of Use | No | GPH Recovery at 90 Degrees F (Gallons) | 42 |
Emission Rating | Low NOx | High Altitude Model | Yes |
Annual Fuel Utilization Efficiency % (Percentage) | 0 | Installation Location | Closet |
Uniform Energy Factor | .64 | Pilot Light Window | Yes |
BTU Rating | 40000 | Pilot Reset Button | Yes |
Super High Efficiency | No | Temperature and Pressure Relief Valve | Yes |
Grid Capable | No | Water Connection Location | Top |
Scale Prevention | No | Water Heater Style | Tall |
Foam Insulation | Yes | ||
Compatibility | |||
|---|---|---|---|
For Use with RVs | No | Works with Android | No |
Works with Apple HomeKit | No | Wi-Fi Compatibility | No |
For Use with Mobile Homes | No | Works with the Google Assistant | No |
Works with SmartThings | No | Bluetooth Compatibility | No |
Works with Amazon Alexa | No | Smart Compatible | No |
Works with iOS | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 9-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | AHRI Certified | Yes | |
ENERGY STAR Certified | No | Safety Listing | CSA safety listing |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40101800 | ||
Check out the Best Selling Water Heaters on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The AO Smith water heater appears to be a mixed product in terms of customer satisfaction. Many customers report that it is easy to install, provides ample hot water, and is a quality product. However, some have experienced issues such as malfunctioning temperature controls, leaks, and poor customer service. While the water heater seems to be a solid product when functioning properly, the brand's customer service and quality control could use improvement.
Customer review summary generated by AI, including incentivized reviews.Replaced a 25 yo Maytag with this one
My 25 yo Maytag(made by State Industries) worked great until the last month went the gas control valve (obsolete part) no longer allowed the burner to turn on to keep the water to temperature. I began my research for the most reliable replacement within my price range and decided on this model of AO Smith for several reasons. 1. It had mostly good reviews and a good hassle free warranty 2. It was made in USA (mine was made in McBee, SC) and the plant had a good reputation of continuous improvem...
From Signature 100 50-Gallon Tall 9-year Warranty 40000-BTU Natural Gas Water Heater
Junk
Paid extra to go with a "Brand Name" water heater. We'd been running water heaters from another store with 9 year warranty and getting 6-7 years out of them. We bought this one with a 12 year warranty with hopes we could get 9-10 years out of it. Not even close. Installed it 9/8/2021. A month ago it appeared the temp/pressure valve was leaking, so I replaced it. Then on 2/18/2026 I got up and went to take a shower. My wife went to the basement and found water on the floor, the tank had failed. N...
From Signature 100 40-Gallons Tall 12-year Warranty 40000-BTU Natural Gas Water Heater
Poor delivery care
I bought this and paid for delivery. Received the tank damaged with a big debt about 10 inches on top. Not happy at all. I don't recommend.
From Signature 100 50-Gallon Tall 9-year Warranty 40000-BTU Natural Gas Water Heater Verified Purchaser
Heater was damaged inside the box before delivery
The metal valve inside the control panel had a one inch crack in it. Gas started leaking out as soon as it was hooked up in the early evening but not noticeable and smelled until about 1 PM the next day. Immediately opened the door and windows clearing the air and turned off the gas. I called the on-duty manager at Lowes and he was VERY unhelpful, telling me that there was nothing he could do. I would have to contact AOSmith and get them to handle it as a warranty problem. Things worked out ...
Verified Purchaser
Good and Not So Good
Good product but I was disappointed to find out that Lowe's has quit giving a military discount on big ticket items. In the future, that will give me less incentive to purchase big ticket items from Lowe's.
From Signature 100 50-Gallon Tall 12-year Warranty 40000-BTU Natural Gas Water Heater Verified Purchaser
Open boxes & check before scheduling appointments.
Packaging or handling of units. First unit was damaged and returned, second unit had slight dents not affecting functionality. Had to pay extra to installers for their time and effort returning the first unit to the store. Had to accept the slightly dented 2nd unit because installers had other appointments and couldn’t schedule me in for another 2 days, additional fees for their time and I didn’t have the extra cash.
From Signature 100 40-Gallons Tall 12-year Warranty 40000-BTU Natural Gas Water Heater Verified Purchaser
Damaged out of box TWICE
So I got this delivered by a single man in flip slops through Lowe's delivery service. Needless to say, I had to assist in the delivery while tripping over his flip flop. After that whole ordeal, when opening the box to the tank, the top edge and bottom edges were smashed in. My wife and I took it back to Lowe's since they wouldn't be able to send someone to pick the tank up till much later in the week. Returned it and bought another one, which had a much better shaped box. Brought it home and o...
From Signature 100 50-Gallon Tall 12-year Warranty 40000-BTU Natural Gas Water Heater
We are sorry to hear of your experience.
We recommend reaching out to Lowe's Customer Care at 1-800-445-6937 or Text 84109.
Maintenance Nightmare: Can’t Access or Remove Anod
This water heater is extremely frustrating and poorly designed. The anode rod is practically impossible to remove. I tried everything—using a heavy-duty extension bar and even an impact wrench—and it still wouldn’t budge. It feels like the rod is permanently fused in place, which defeats the whole purpose of having a replaceable anode rod for maintenance. On top of that, the design is terrible. The anode rod is located at the back of the unit, making it very difficult to access. To even attempt...
We are sorry to hear of your experience. We want to ensure the issue is resolved.
Please send your phone number to talktous@aosmith.co...
So far so good!
Replaced a Whirlpool standard gas water heater that died literally 2 months after it's 12yr warranty. This A.O. Smith unit looks even nicer than the last one and works smoothly. Install went without a hitch (except for that whole $1,500 price part) and was completed within days of purchase (on a Saturday) through Lowes's referred plumbing company.
From Signature 100 50-Gallon Tall 12-year Warranty 40000-BTU Natural Gas Water Heater
Bait and switch
Lowe’s installers will not install water heaters that are sold at Lowe’s. You probably think that I’m talking nonsense. But it’s the truth. I talked to two separate Lowe’s locations. Those installers are only given leads from Lowe’s. The installers source the water heaters from Wholesale warehouses elsewhere, like I said you probably think that I’m misunderstanding the situation but I’ve researched it. You can get a Lowe’s water heater installed, but you have to carry it to your house and have t...
From Signature 100 50-Gallon Tall 12-year Warranty 40000-BTU Natural Gas Water Heater Verified Purchaser
