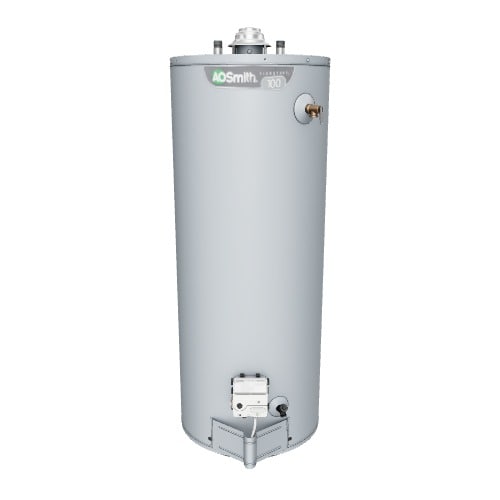

A.O. Smith Signature 100 50-Gallon Tall 12-year Warranty 40000-BTU Natural Gas Water Heater
Item #962544 |
Model #G12-T5040NVR
Delivers the ideal amount of hot water for households with 5+ people when sized appropriately
Features an environmentally-friendly 40,000 BTU gas burner that delivers 80 gallons in the first hour
Electronic gas valve provides precise temperature control for optimum hot water delivery
Self-diagnostic electronic gas control incorporates an LED status indicator that monitors and reports on the system's operational status
Built-in safety system reduces the risk of accidental flammable vapor ignitions
Tall, slim 60.75-in H x 22-in diameter profile enables easier installation in narrow spaces
Tank Guard® provides advanced tank protection that extends the life of your gas water heater
High-altitude certified from 0 ft to 10,100 ft
Provides peace of mind with a 12-year limited tank and parts guarantee and a 3-year limited labor warranty
General | |||
|---|---|---|---|
Series Name | Signature 100 | Fuel Type | Natural gas |
Type | Tank | Ignition Type | Piezo |
Power Source | Gas | Venting Type | Atmospheric |
Grade | Residential | Vent Type | Type B double wall |
Use Location | Indoor | ||
Dimensions | |||
|---|---|---|---|
Depth (Inches) | 22 | Rated Storage Capacity | 48-Gallon |
Diameter (Inches) | 22 | Vent Diameter(s) | 3-in |
Family Size | 5 | Water Connection Size | 3/4-in |
Height (Inches) | 60.75 | Weight (lbs.) | 165 |
Insulation Thickness (Inches) | 2 | Width (Inches) | 22 |
Nominal Capacity (Gallons) | 50 | ||
Features | |||
|---|---|---|---|
Annual Fuel Utilization Efficiency % (Percentage) | 0 | Pilot Reset Button | Yes |
BTU Rating | 40000 | Point of Use | No |
Emission Rating | Low NOx | Scale Prevention | No |
Foam Insulation | Yes | Super High Efficiency | No |
GPH Recovery at 90 Degrees F (Gallons) | 43 | Temperature and Pressure Relief Valve | Yes |
Grid Capable | No | Uniform Energy Factor | 0.62 |
High Altitude Model | Yes | Water Connection Location | Top |
Installation Location | Closet | Water Heater Style | Tall |
Pilot Light Window | Yes | ||
Compatibility | |||
|---|---|---|---|
Bluetooth Compatibility | No | Works with iOS | No |
Smart Compatible | No | Works with SmartThings | No |
Wi-Fi Compatibility | No | Works with the Google Assistant | No |
Works with Amazon Alexa | No | For Use with Mobile Homes | No |
Works with Android | No | For Use with RVs | No |
Works with Apple HomeKit | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 12-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | AHRI Certified | Yes | |
ENERGY STAR Certified | No | AHRI Certification Number | 206911312 |
Safety Listing | CSA safety listing | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40101800 | ||
Check out the Best Selling Water Heaters on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The product appears to be a high-quality and reliable water heater with good features, consistent performance, and a long lifespan. Customers report quick heating, ample hot water supply, and straightforward setup. The product is widely trusted, with many noting their previous units lasted 15-20 years or more. While a few customers experienced minor issues, the overall consensus is that this is a well-designed and durable water heater that should provide reliable hot water for many years.
Customer review summary generated by AI, including incentivized reviews.Great water heater
We bought a slightly larger water heater than we probably needed, but it is working well. Since I am no longer able, I talked my nephew and a friend on how to disassemble on one day and how to connect on the next day. I like that it is easier to light the pilot electronically than the old wh of years ago with long matches. It is somewhat easy as a novice to get working though it took longer since it was an unfamiliar project.
Verified Purchaser
easy installation
Its only 3 days old but appears to be perfect for my needs.
From aosmith.com
A Fine Water Heater
A hot water heater is designed to heat water and do nothing else. This water fulfills this design goal. It doesn't leak, doesn't make noise, and looks appropriate for the task. It is sized correctly for our needs and I adjusted the water temperature to my satisfaction. No poetry or flowery prose needed. LOL
From aosmith.com
Nice Unit
This was bought to replace my old unit. It makes great hot water. The temperature dial is what I do not like. It is too small and hard to read due to the completely black dial. My old unit, same brand had a bigger dial, black with a white background and also red lines, so much easier to read. Unfortunately AO Smith went cheap with their dials. Also, they do not have a vacation mode on their dial. They are penny wise and dollar foolish. Put better dials on these tanks.
From aosmith.com
Bought and Installed by Lowe’s!
I’m so happy with this new A.O. Smith water heater. My previous one lasted 20 years, but eventually it started leaking. I purchased this new A.O. Smith water heater with a 12-year warranty, and after it was installed, I couldn’t be happier. Thanks to Lowe’s for helping me schedule the installation — the whole process was very smooth. Highly recommend.
Verified Purchaser
Good Quality
I purchased this product to replace a 17 year old GE water tank. So far my new AOS tank has been operating well. Hope the life of this tank which has a 12 year warranty last as long or longer as my old GE tank.
From aosmith.com
heats quickly
the height on the front of the box and in the specifications is not the height of the actual tank. Its marked 60.75 in. but the tank is actually 57.75 in. I had to have water pipes replaced unexpectedly due to this.
From aosmith.com
50 gallons Water Heater
Great product—used a 40-gallon hot water heater for 21 years, and just bought another AO Smith, hoping to get 20 years out of it.
From aosmith.com
DIY
Very good directions. Not sure about having to clean the filter at the bottom of the water heater though. Code requires the water heater sit in a pan so that limits the access to it.
