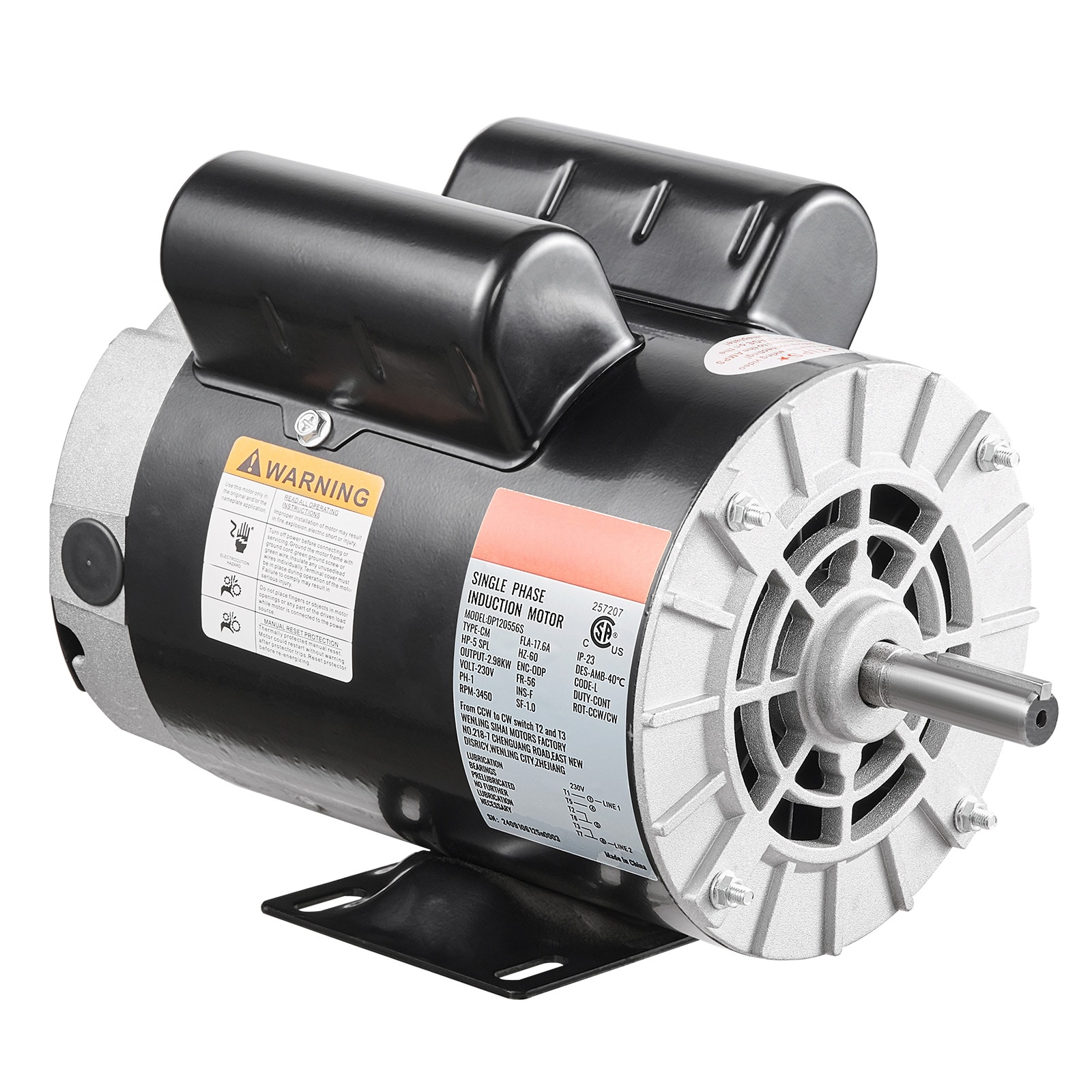

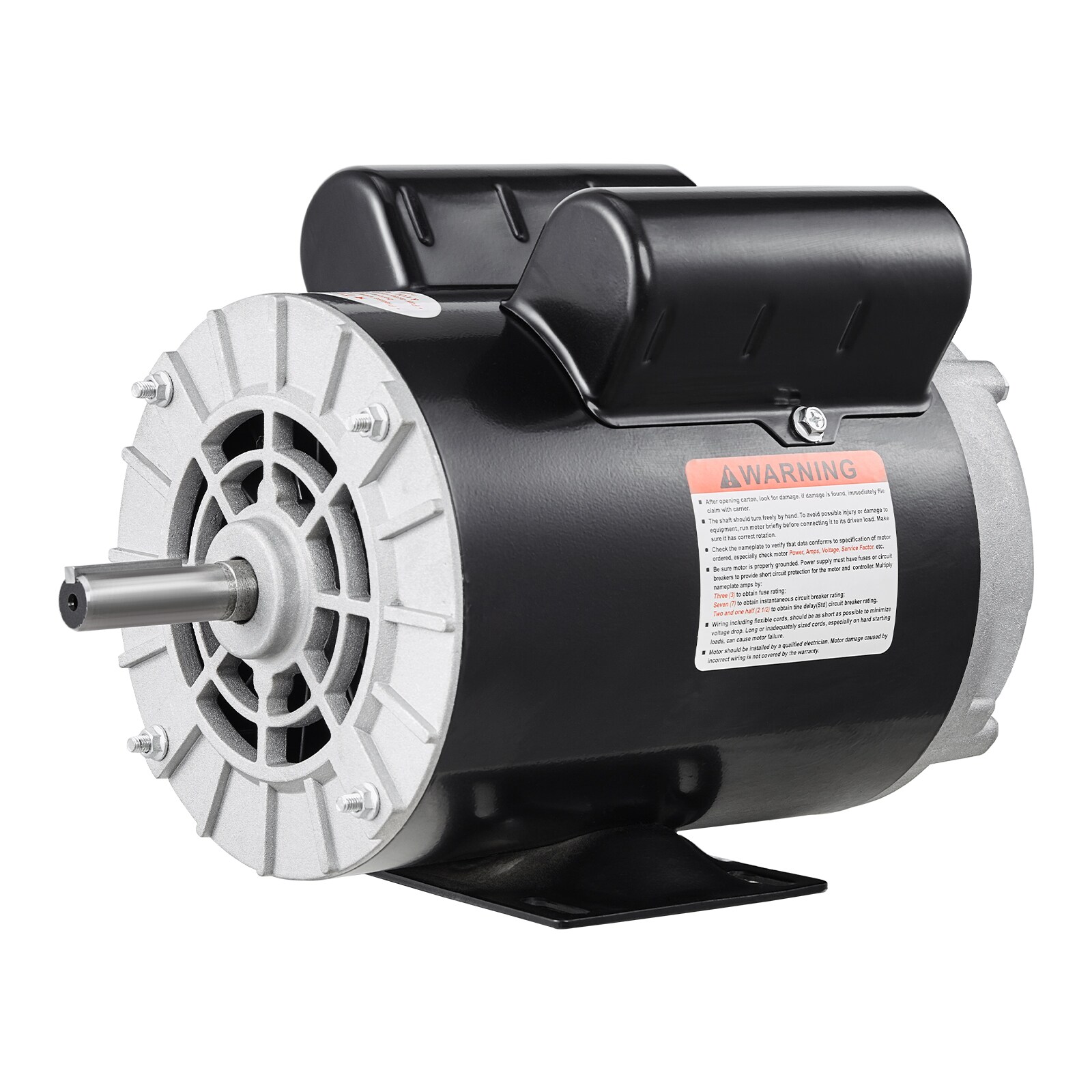

VEVOR 5HP SPL Air Compressor Electric Motor 230V 17.6Amps 56 Frame 3450RPM 5/8in Keyed Shaft 1.88in Shaft Length CW/CCW Rotation (Factory Setting is CCW) Single Phase

Operating at 3450RPM, this motor ensures faster inflation and enhanced energy efficiency, making it ideal for heavy-duty air compression tasks.

The motor comes with an integrated protection device that automatically shuts down in case of malfunction, preventing damage and promoting long-lasting, safe operation.

Featuring a robust steel frame, this motor is designed to withstand high operational demands while minimizing noise, ensuring durable performance over time.

High Performance: 5HP SPL, 3450 RPM, Single Phase, Full Load Amps: 17.6Amp, 230V 60Hz, SF: 1.0;

Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size;

Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations;

Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage; (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps;)

Specification: Item Model Number: DP120556S; Voltage: 230V; Frequency: 60HZ; Current: 17.6A; Rotation Speed: 3450rpm; SF: 1.0; Enclosure: ODP; Frame Size: 56; Shaft Diameter: 5/8" Keyed Shaft; Shaft Length: 1.88"; Keyway Size: 0.188"; Net Weight: 34.5 lbs / 15.65 Kg
