VEVOR 5HP Air Compressor Electric Motor 230V 25 Amps 56HZ Frame 3450RPM 7/8in Keyed Shaft 2.25in Shaft Length Single Phase CCW/CW (Factory Setting is CCW)

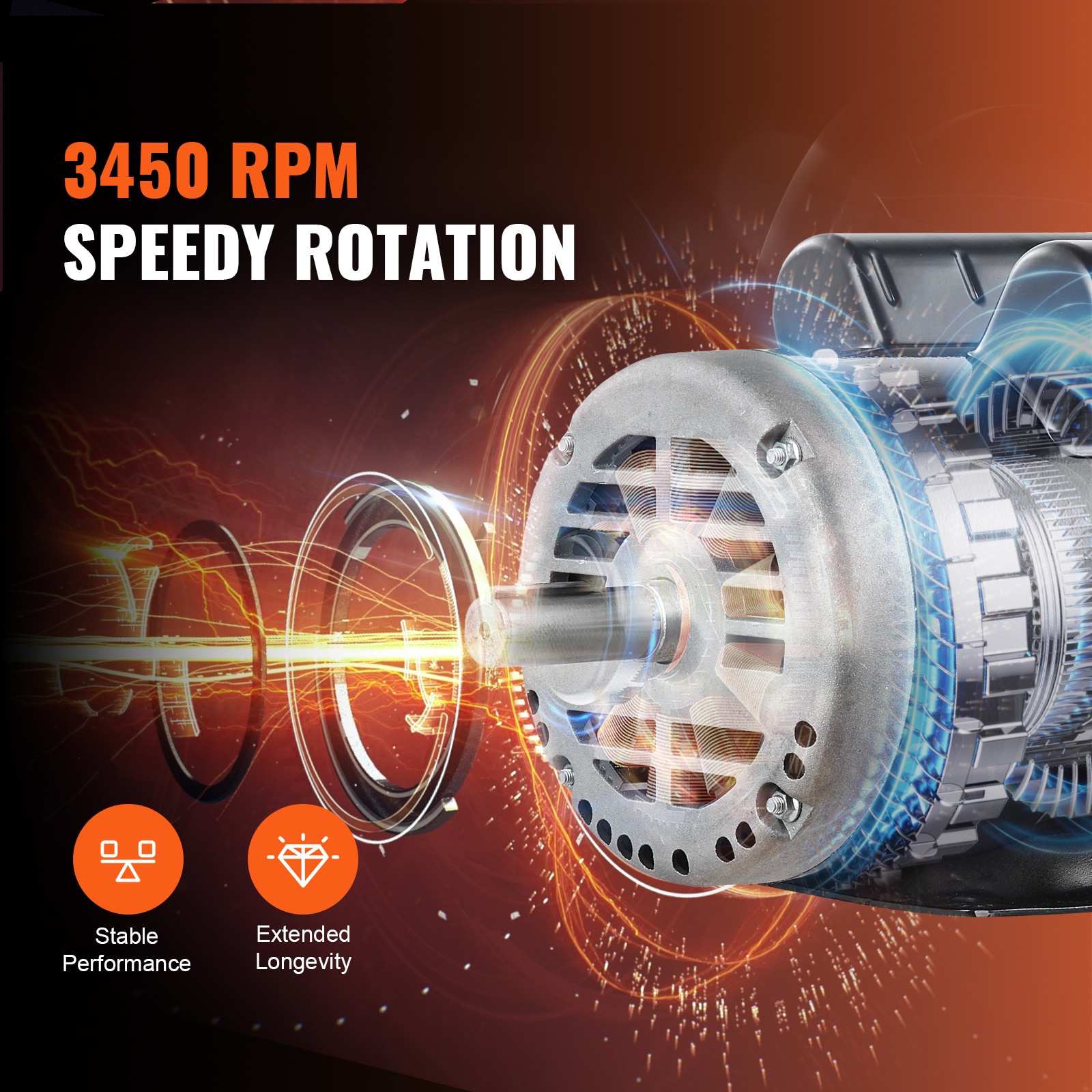

The motor operates at 3450RPM, providing fast inflation and energy-efficient operation; This high speed ensures reliable performance and faster results for all your air compressor needs.

Equipped with a large fan, this motor effectively dissipates heat, preventing overheating; This cooling system enhances the motor’s lifespan and ensures optimal performance during continuous use.

Designed for flexibility, the motor supports both clockwise (CW) and counterclockwise (CCW) rotation; This dual-direction capability makes it compatible with various air compressor applications.

High Performance: 5HP 3450 RPM, Single Phase, Full Load Amps: 25Amp, 230V 60Hz, SF: 1.0;

Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size;

Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations;

Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage; (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps;)

Specification: Item Model Number: DP120556HZ; Voltage: 230V; Frequency: 60HZ; Current: 25A; Rotation Speed: 3450rpm; SF: 1.0; Enclosure: ODP; Frame Size: 56HZ; Shaft Diameter: 7/8" Keyed Shaft; Shaft Length: 2.25"; Keyway Size: 0.188"; Net Weight: 40.8 lbs / 18.5 Kg
