VEVOR 2HP SPL Air Compressor Electric Motor 115/230V 20/10 Amps 56 Frame 3450RPM 5/8in Keyed Shaft 1.88in Shaft Length Single Phase CCW/CW (Factory Setting is CCW)

The motor operates at 3450RPM, offering quick inflation and efficient energy use; This high-speed operation ensures reliable, fast performance for all your air compressor needs.

This motor is designed for versatility with both clockwise (CW) and counterclockwise (CCW) rotation options; It ensures easy adaptability and flexibility in different applications.

Equipped with a protection device, the motor automatically shuts off in case of abnormal conditions; This feature helps prevent overheating and burnout, ensuring safety during operation.

High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10Amp, 115V/230V, SF: 1.0;

Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size;

Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

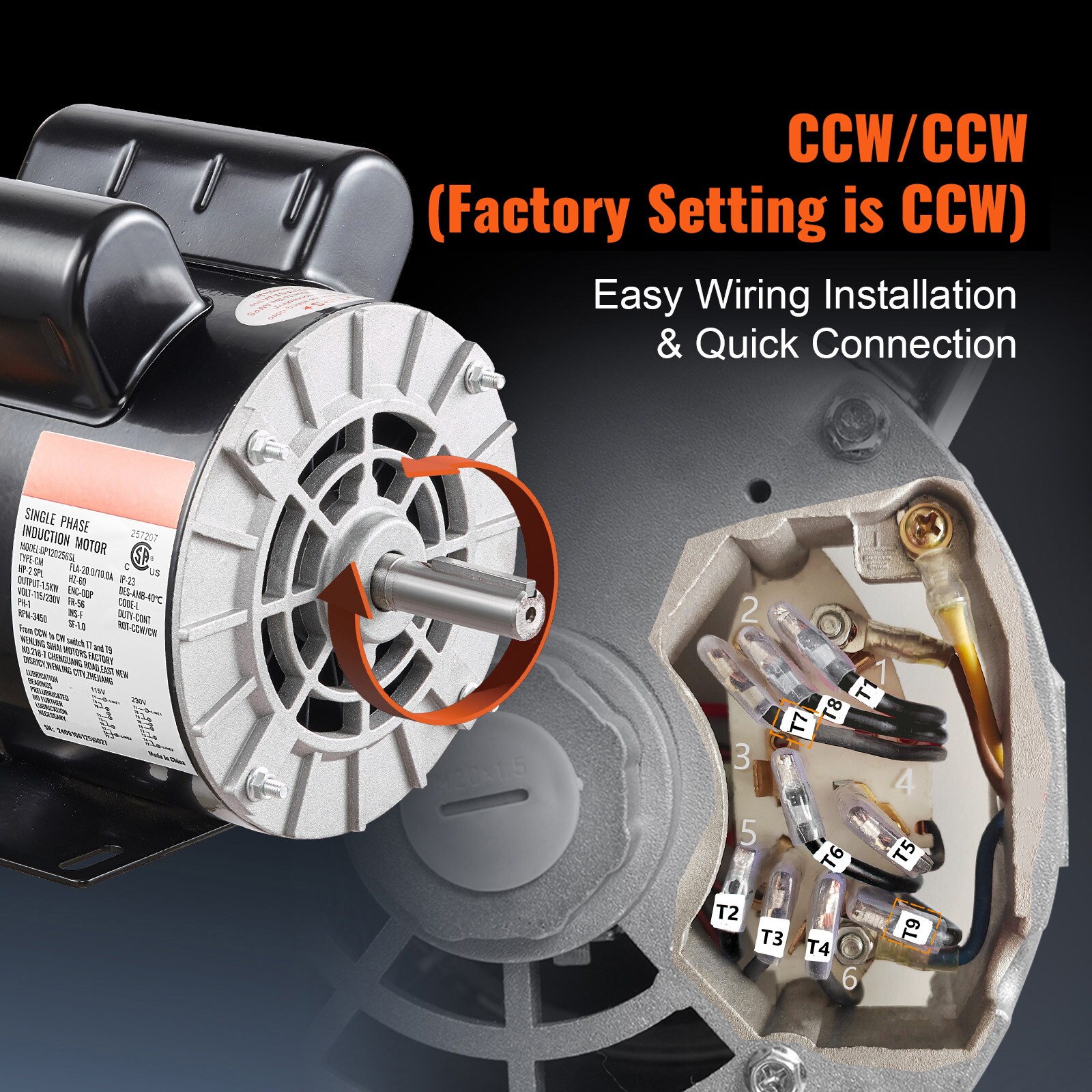

Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations;

Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage; (PLEASE NOTE: The circuit breaker supplied by the customer should be 50 amps at 115V, 25 amps at 230V;)

Specification: Item Model Number: DP120256SL; Voltage: 115V / 230V; Frequency: 60HZ; Current: 20 A / 10 A; SF: 1.0; Enclosure: ODP; Frame Size: 56; Shaft Diameter: 5/8" Keyed Shaft; Shaft Length: 1.88"; Keyway Size: 0.188"; Net Weight: 25.2 lbs / 11.45 kg
