VEVOR 7.5HP Air Compressor Motor 230V 31.6 Amps Electric Motor 3450RPM 184T Frame 1-1/8in Keyed Shaft 2.75in Shaft Length for Air Compressors Single Phase CCW/CCW (Factory Setting is CCW)

Operating at 3450RPM, this motor ensures rapid inflation and enhanced energy efficiency, helping you get the job done faster while minimizing energy consumption.

Designed for versatility, this motor can operate in both clockwise (CW) and counterclockwise (CCW) directions, making it adaptable for a wide range of air compressor applications.

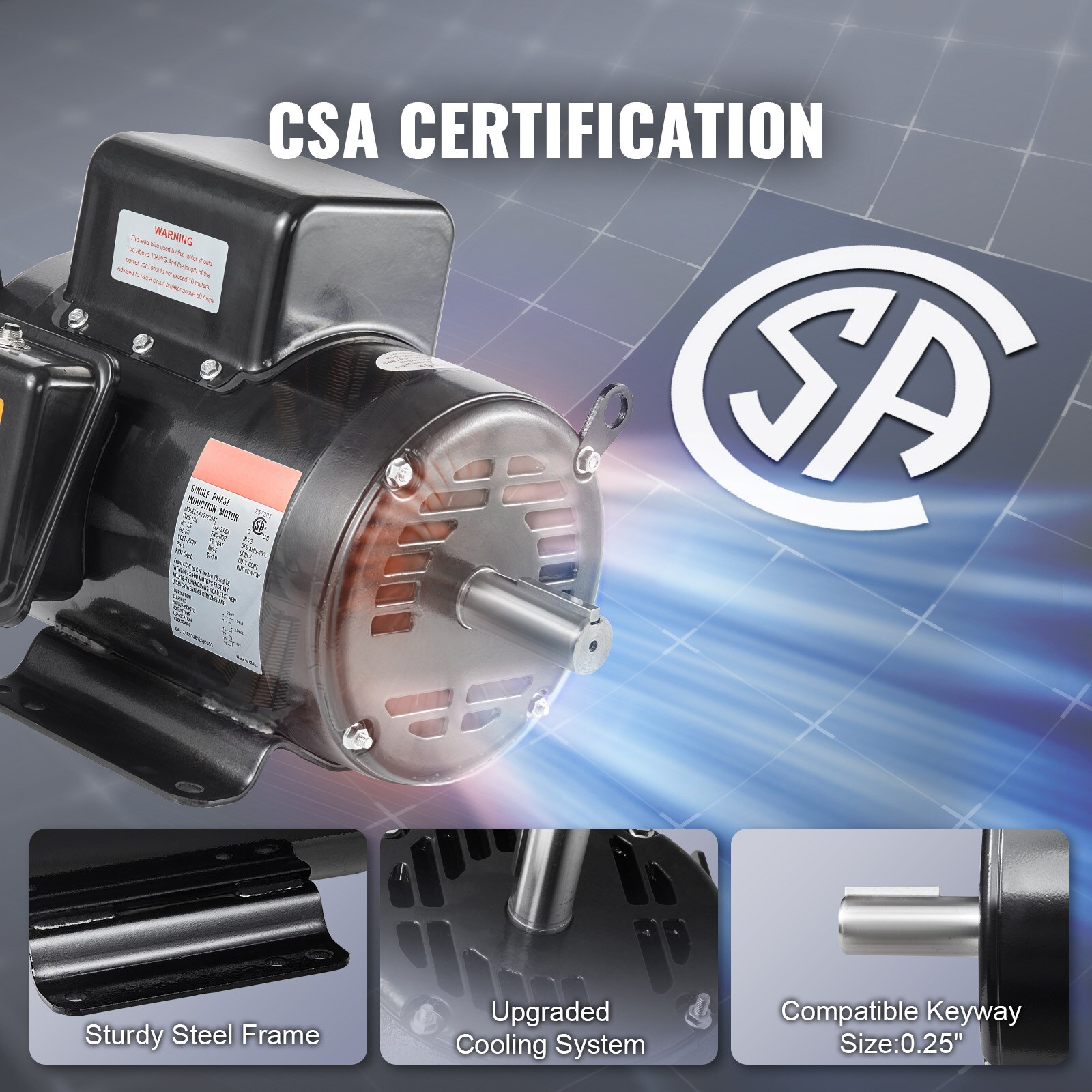

With an integrated large fan, the motor quickly dissipates heat, preventing overheating and ensuring long-lasting performance even during extended use.

High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0;

Frame Type: 184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length, 0.25" Keyway Size;

Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

Dual Rotation Direction: Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations;

Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage; (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps;)

Specification: Item Model Number: DP1272184T; Voltage: 230V; Frequency: 60HZ; Current: 31.6A; Rotation Speed: 3450rpm; SF: 1.0; Enclosure: ODP; Frame Size: 184T; Shaft Diameter: 1-1/8" Keyed Shaft; Shaft Length: 2.75"; Keyway Size: 0.25"; Net Weight: 67.7 lbs / 30.7 Kg
