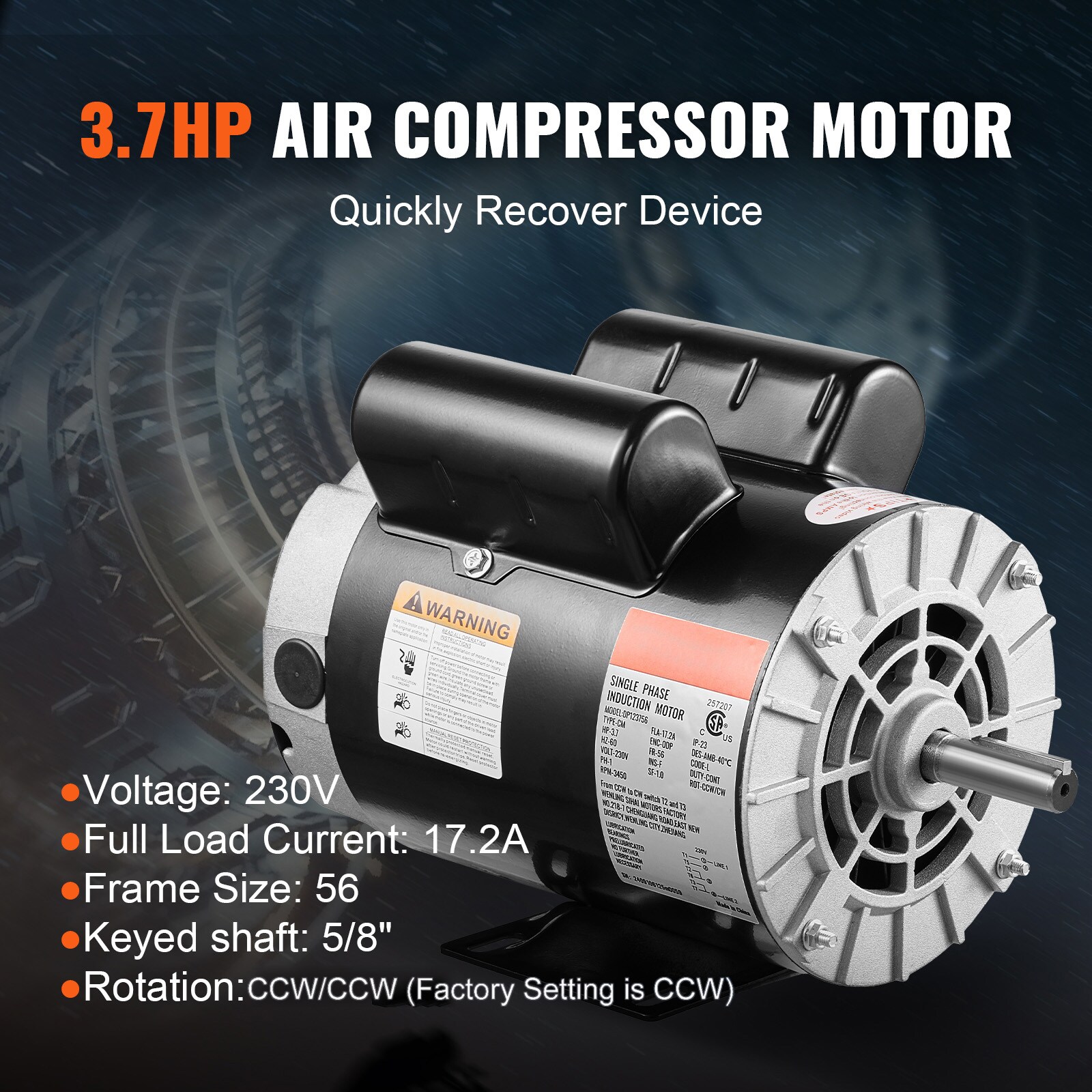

VEVOR 3.7HP Air Compressor Motor 3450RPM Electric Motor 230V 17.2 Amps 5/8in Keyed Shaft 56 Frame 1.88in Shaft Length Single Phase CCW/CW Rotation (Factory Setting is CCW)

With a 3450RPM speed, this motor delivers fast inflation and operates efficiently, saving energy while ensuring high performance for various applications.

Equipped with an automatic shutdown feature, the motor protects itself from burnout by cutting power when abnormal conditions are detected, ensuring safety.

Built with a heavy-duty steel shell, this motor is strong and resilient, designed to endure demanding environments while maintaining low noise levels during operation.

High Performance: 3.7HP 3450 RPM, Single Phase, Full Load Amps: 17.2Amp, 230V 60Hz, SF: 1.0;

Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size;

Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations;

Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage; (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps;)

Specification: Item Model Number: DP123756; Voltage: 230V; Frequency: 60HZ; Current: 17.2A; Rotation Speed: 3450rpm; SF: 1.0; Enclosure: ODP; Frame Size: 56; Shaft Diameter: 5/8" Keyed Shaft; Shaft Length: 1.88"; Keyway Size: 0.188"; Net Weight: 34.3 lbs / 15.55 Kg
